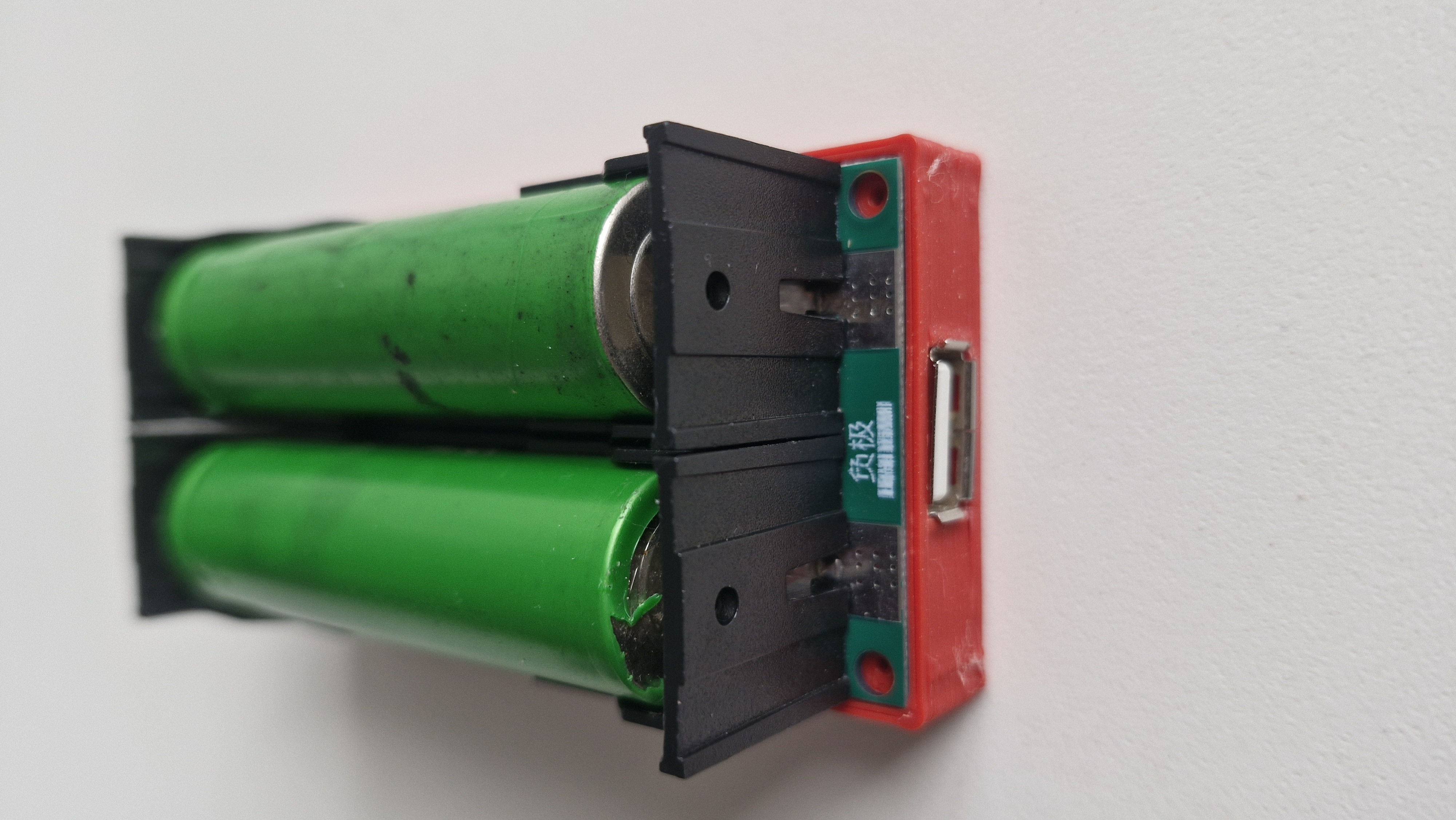

Estoy usando estos SAI o UPS en miniatura para dispositivos de bajo consumo como cámaras, routers y sensores en domotica, hay 3 versiones, de 5v, 9v y 12v, pero me parece relativamente peligroso que el circuito esté al aire, ya que cualquier elemento metálico puede hacer un cortocircuito, he diseñado una caja que lo cubre, haciendo una salida para un USB A, en el caso de la versión de 5v, y un orificio para sacar el cable en las otras versiones, se fija con 4 pequeños tornillos dejando acceso a las baterías, por la parte inferior hay dos orificios más para ver los led de estado, gracias al texto podemos saber si hay tensión de entrada y de salida así cómo el estado de carga.
I am using these miniature UPSs or SAI for low consumption devices such as cameras, routers and sensors in home automation, there are 3 versions, of 5v, 9v and 12v, but I find it relatively dangerous that the circuit is in the air, since any metal element can short circuit, I have designed a box that covers it, making an outlet for a USB A, In the case of the 5V version, and a hole to out the cable in the other versions, it is fixed with 4 small screws leaving access to the batteries, at the bottom there are two more holes to see the status LEDs, thanks to the text we can know if there is input and output voltage as well as the state of charge.
