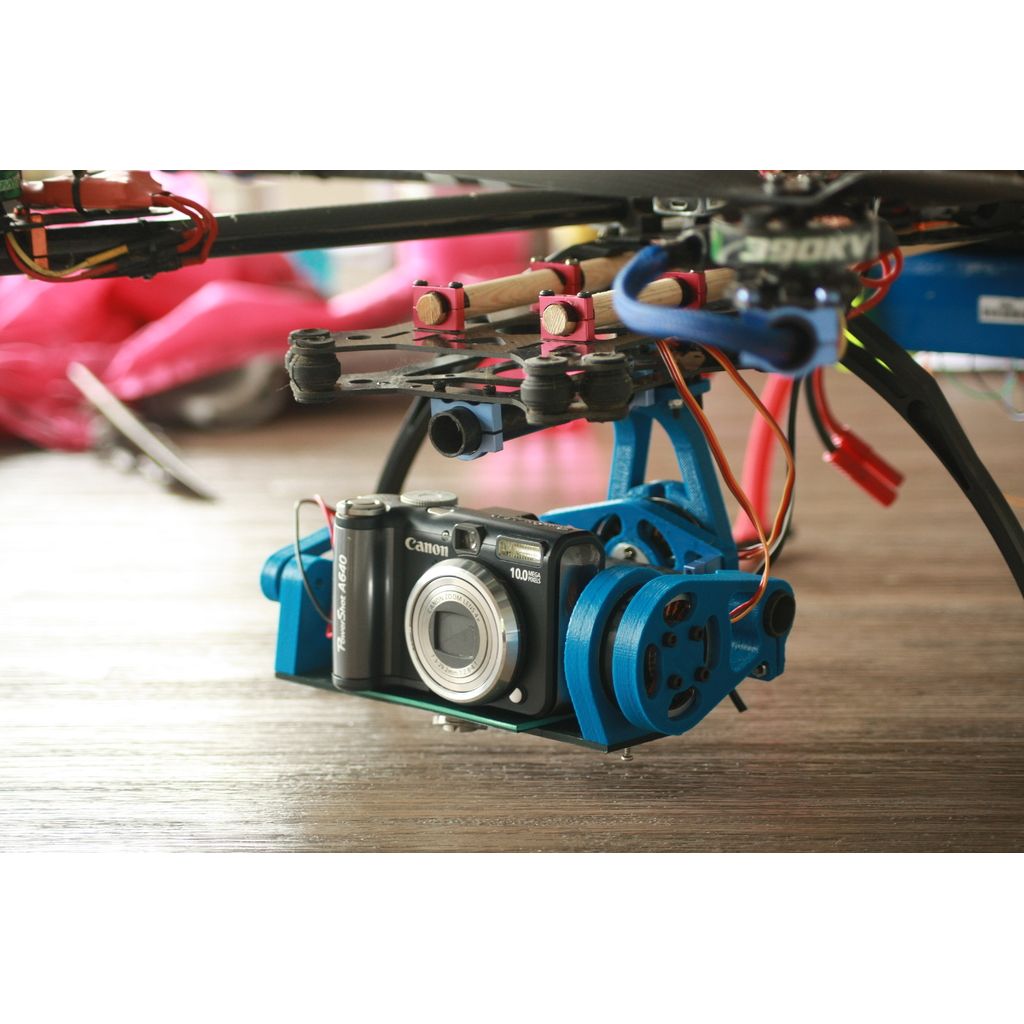

I made this gimbal for my Canon A640, but it can easily be used for other camera types. The design is based on the Nex5 gimbal from Nilsepils94 (http://www.thingiverse.com/thing:248930)
Total print volume is 98 cm3.
To complete the gimbal you will need:
2x Quanum 4008 brushless motors
1x controller board, 2-axis
1x carbon shock absorbing plate with rubber dampers
4x 16 mm alu. Tarot tube clamp
4x 12 mm tube clamp
...some srews and bolts

Update: first test with Sony NEX 5: http://youtu.be/yjy8nDaOKOk

update 2015-02-15:
I had problems with the gimbal when using it with the heavier Sony Nex. Sad to say I replaced it with it a DYS because of vibrations I could not get rid of. Probably because the construction is not stiff enough and I used too light rubber vibration dampers.

Update 2016-01-19:
with some more experience with the Alexmos in retrospect I think the vibrations were caused by bad PID values or bad connection of the IMU sensor.

For controller, a stand alone nulled version Alexmoss controller was used

Some small faults in the 3D print design:

• diameter around motors of the could be 0.5 mm bigger (tight fit; had to use aceton)
• cable location differ 90 degrees on some Quanum motors; The position seems not consistant in respect of the mounting thread holes

The design was printed with a Leapfrog, without support material.

More footage:
http://youtu.be/FselVdqGLIA (stabilised)
https://plus.google.com/photos/108394968200012243536/albums/6053086198104189761?authkey=CKeMrr-c9LfGAQ
