Summary

I'm sharing a pile of stuff for the Flsun Cube printers:

Cooling shroud that can utilize a 40mm x 20mm fan. The mounting holes are intentially small and will need drilled out. I prefer a bit (dunno what it states) that measures .118" for 3mm screws to go into. You will need to take the bearing mounts off and use new zipties to hold the mount in place. Kinda a pain, but worth it. If you sand a little off of the mount cradle on each side, it can pivot so you can cool longer tips.

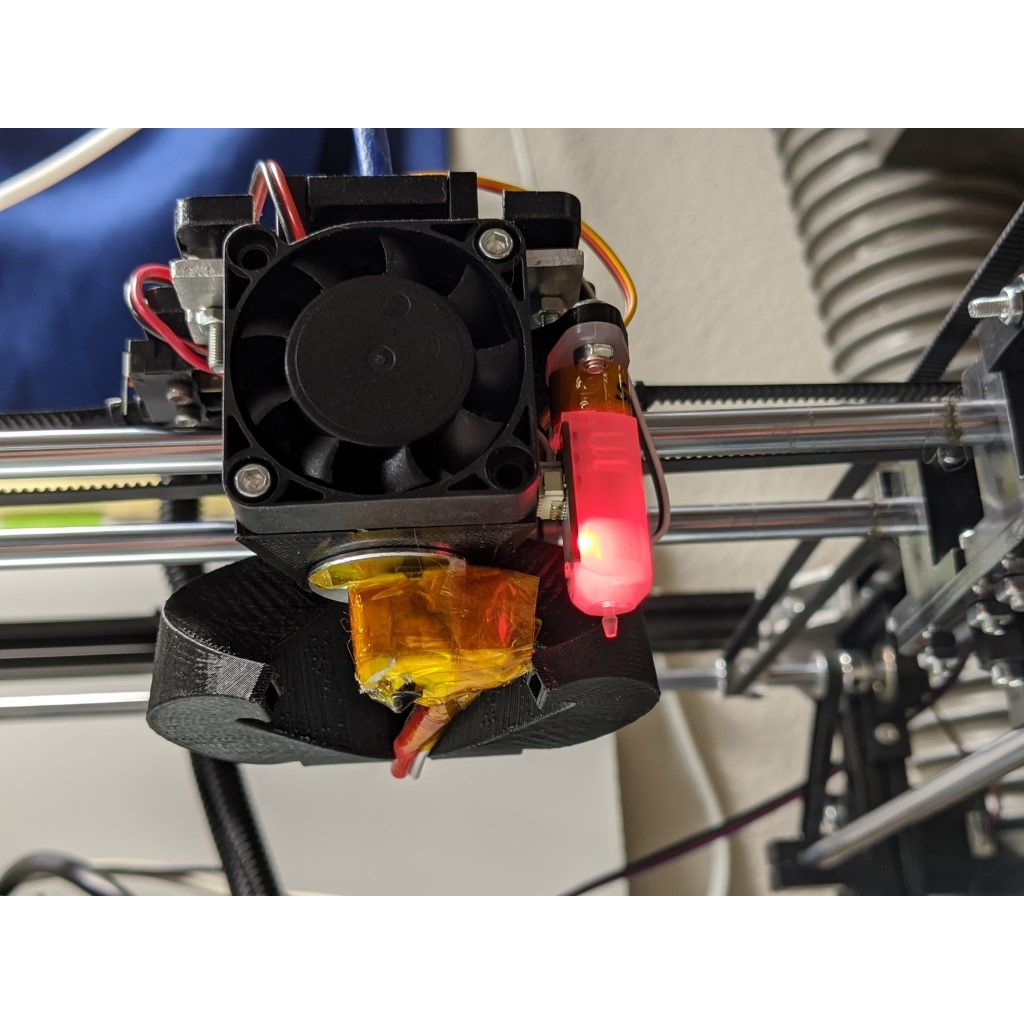

Hot end shroud that doubles as a BLTouch mount. I have my offset set to M851 Z-1.5 but mileage may vary. Again, drill the holes smaller than 3mm screws so they stay in place.

I've also included a pic of the BLTouch location to the tip for firmware updating, if you feel the need.

I found a helpful video on setting up the controller for BLTouch by searching google: mks gen l v1.0 bltouch

Update 04/10/2020: I uploaded FlsunHotEndCoolingBLTouch2 that has hardware holes. There is enough slop that the BLTouch sensor will be off from where you set it. So use some 3mm screws and nuts to solid mount it to the top plate.
