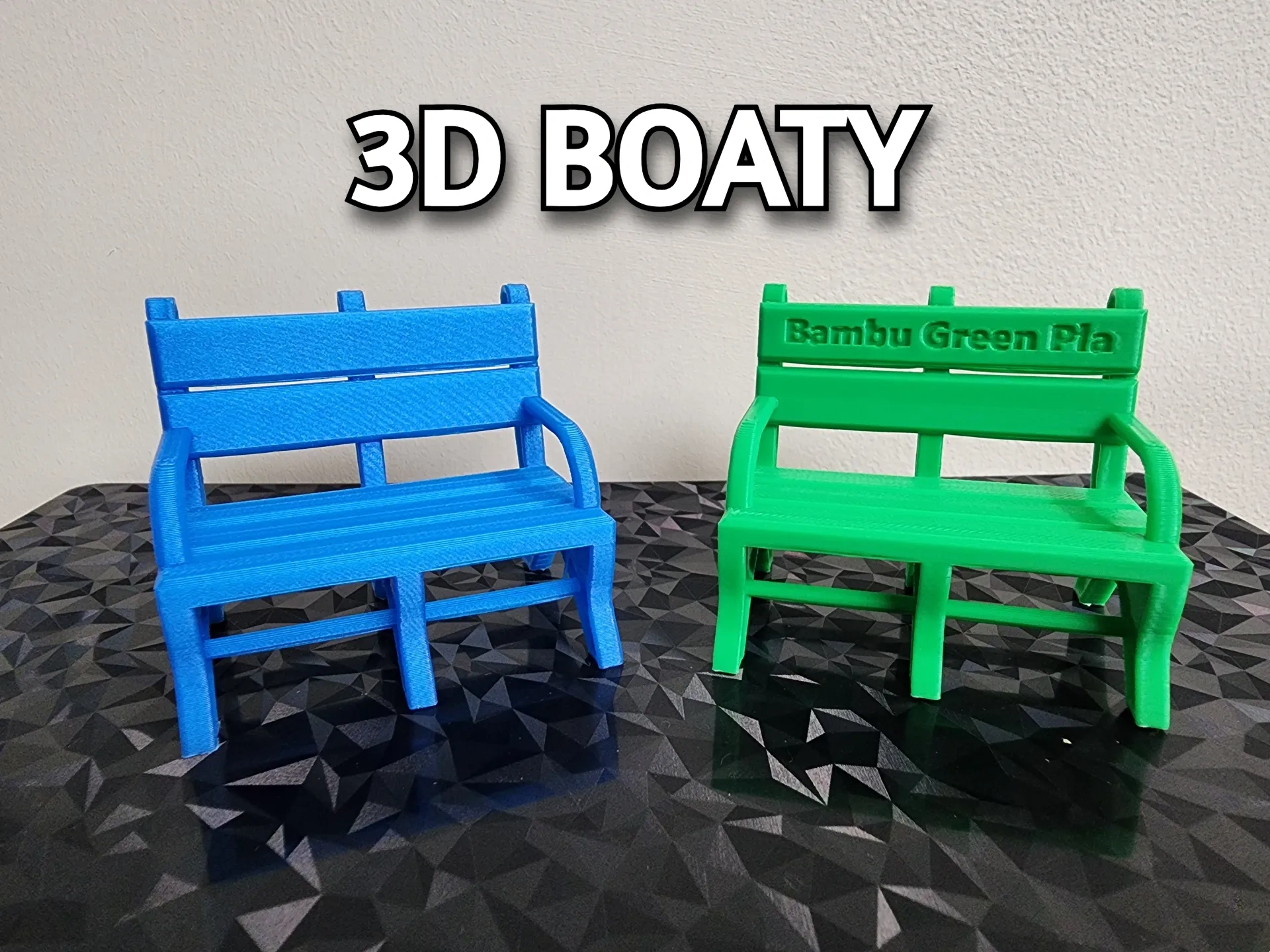

3DBoaty is a 3D model designed specifically for testing 3D printers. It is compact in size, and only requires 16.5 grams of consumables to print. In addition, a scoring sheet is provided to evaluate the quality of your printed Boaty and compare it with that of other users.

Includes STEP files

Boaty Testing Project:

• Heatbed adhesion - Starting with just six small feet, good heatbed adhesion is the key to successful printing.
• Suspension - the arches in the three frames of Boaty and the arches on his arms.
• Bridge - Test your bridging ability, with a maximum span of up to 25 millimeters.
• Quality of the top surface
• Hole precision
• Maximum flow rate
• The level of detail
• What's even more challenging is the speed. See how fast you can print one out. Can you finish Boaty in 10 minutes?

Rating form:

• Adhesion to the hot bed1Points. If you need to use Brim, the points will be deducted6points.



• Bridge Test 11Points. As shown in the figure.

• Bridge Test 21points.


• Detail fineness



• Hole accuracy1Points. If it cannot pass through any hole, the score will be deducted2points.


• Maximum flow rate1points.



• Suspension test1points.
• Top surface test1points.

Speed Boaty Challenge:

The goal of this challenge is to see how quickly you can print out Boaty while still maintaining its shape. You can send me your creations via private message here. I will only keep the top five submissions.

Practically_Printed (Instagram) 9 minutes and 31.87 seconds

Youtube video link
