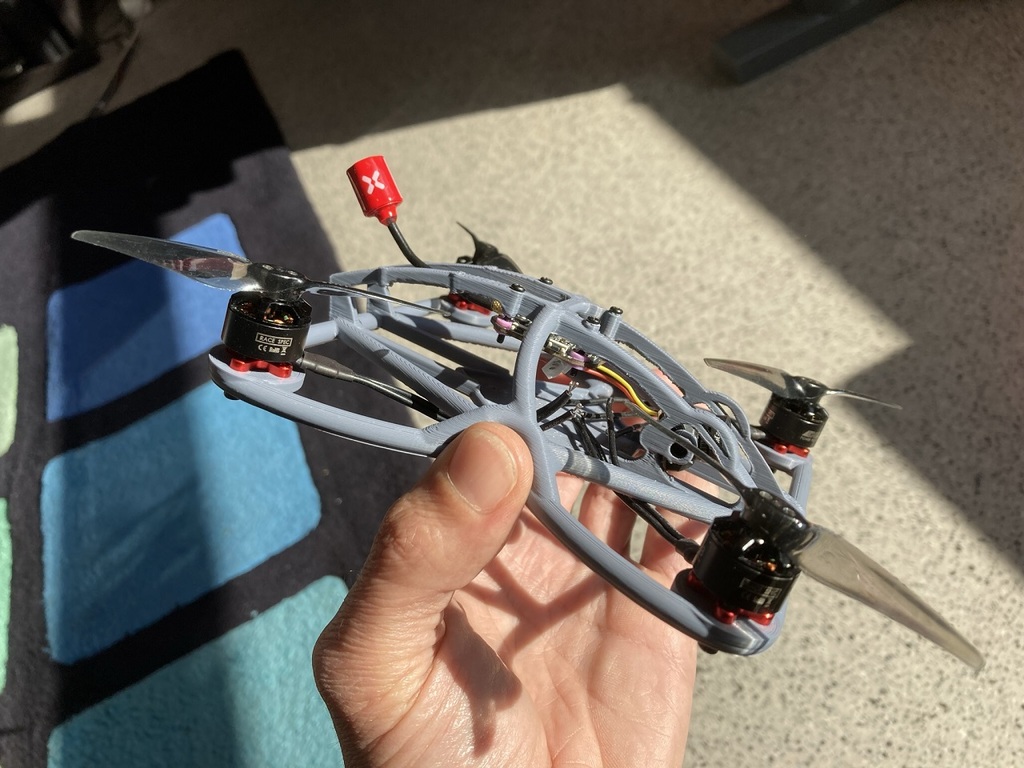

QARKS 150 FPV Toothpick 3 inch.

32g naked.

13xx or 14xx motors (with 12x12 mounting holes)

20x20 or 26,5x26.5mm stack

14 or 19mm camera

20x20 VTX and optional plate mounts.

TPU motor guard will be released later, still waiting for parts…

But in the meantime, maybe I can design a V2, since there's several thing I already wanna change, as camera position (a bit higher and nearer of the edge to avoid props in the field of view) and making more room for a caddx vista update, maybe for christmas ^^...

The main problem is that you need to solder the FC in the frame because there’s no way to properly mount the motors once soldered.

So now you should consider this one https://www.printables.com/fr/model/646750-atomx-micro-fpv-frame

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

Yes

Supports:

Yes

Resolution:

0.2

Infill:

100

Category: Hobby
