This is a Remix of macd2point0 Steps Calibration Device. I resized for tighter tunning to tighter dimensional accuracy and near max build size. There are three different sizes to fit your needs.

Each "leg" is 5MM wide X 10mm Tall with Fillets on the sharp edges to prevent elephants' foot from messing with measurements.

The ZRod Should measure 10X10mm in the X/Y axis.

Extruder Steps and Flow Should be calculated and proper before proceeding to this calibration!

To Calculate New Values:

Find your current steps for each axis, write them down.

Print one of the selected models (Be Patient)

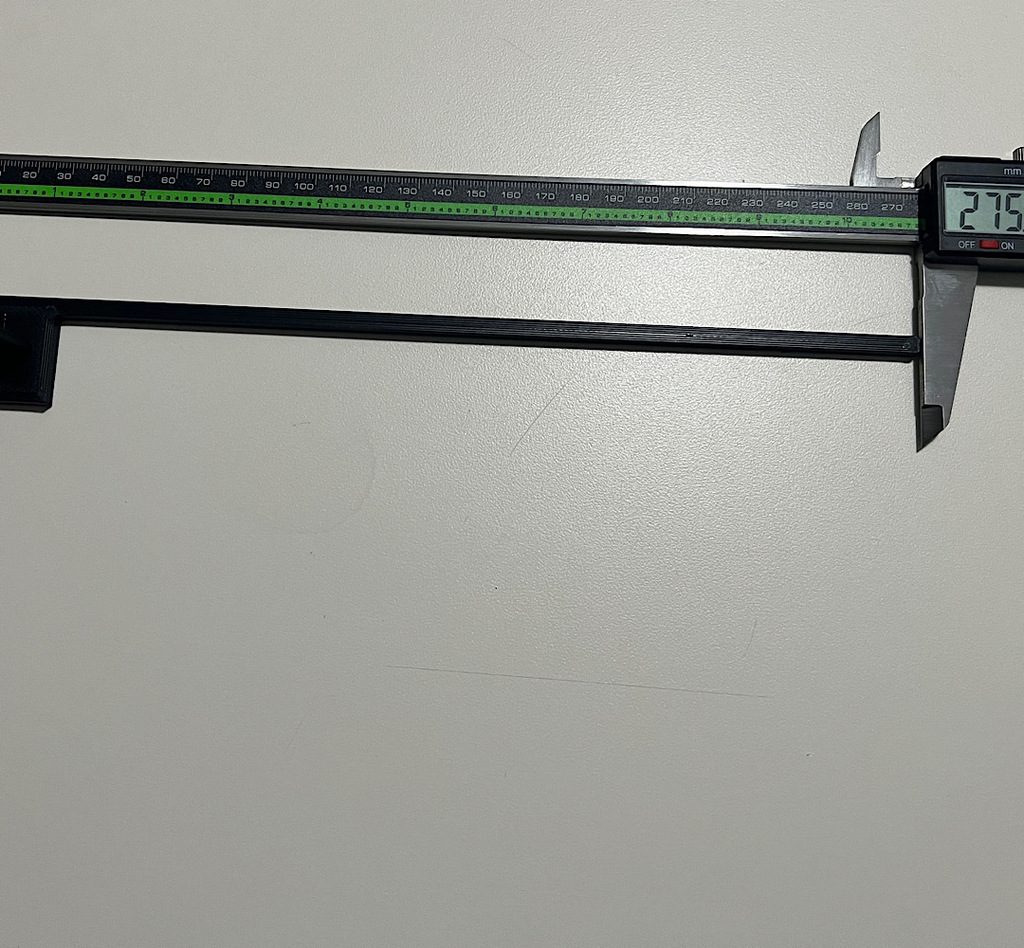

Measure your results in each axis direction.

Take the expected Measurement (145/200/275) , Divided by your actual measurements, Multiplied by Current E-Step Value= New Step Value.

Print Settings

Rafts:

No

Supports:

Resolution:

.2

Infill:

Category: 3D Printing Tests
