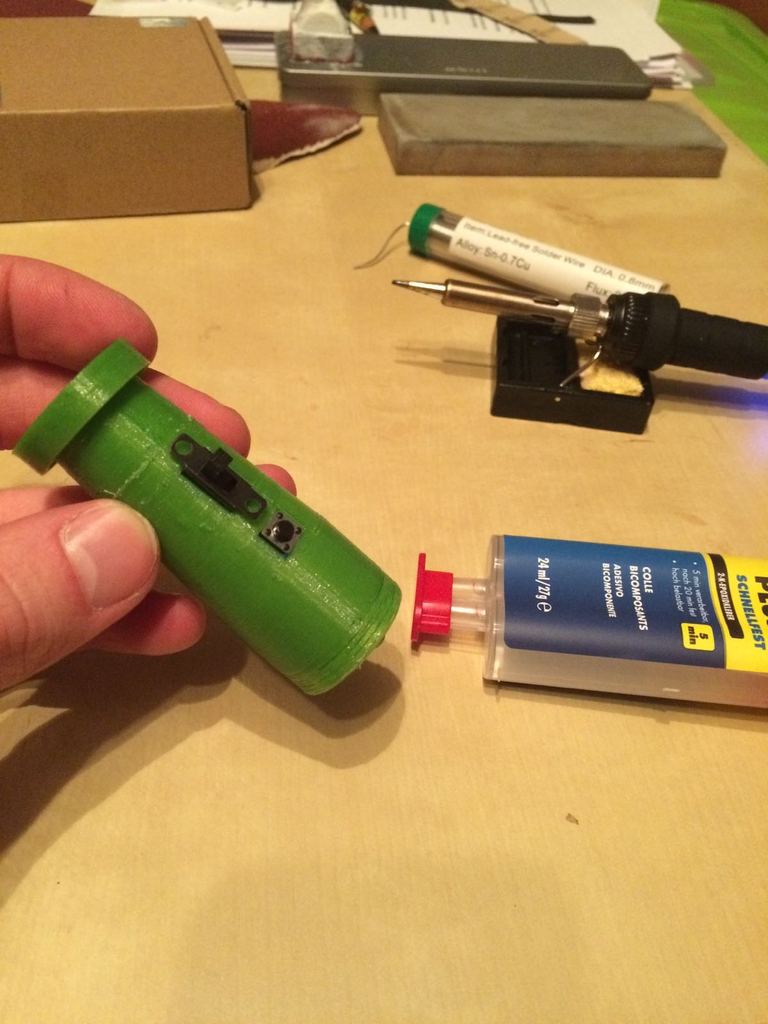

Nice Flashlight, look down for instructions. It is very small and designed to hold one 1s lipo instead of batteries.
It is a very specific design for the parts i had.
!!!
Instead of the bredboard wires i used to connect the lipo you can just solder the cutoffs from the leds to a wire.
Print Settings
Printer:
Anet A6
Rafts:
Yes
Supports:
No
Resolution:
.05 - .3
Infill:
10%
Notes:
Turn the cap for printing; flat side down.
The parts fit together pretty tightly (especially when you print them at .2 or even more bad), so you either print the 5p led holder at about 99% or you sand it till it fits.
Print everything with support everywhere, clean it out pretty good; you may not see the support in the first place but there is one in the ring where the light goes in.
Post-Printing
Lipo placing
Do it like I show on the following picture.
Connector facing you when inserted. Otherwise you will break the pins over time.
