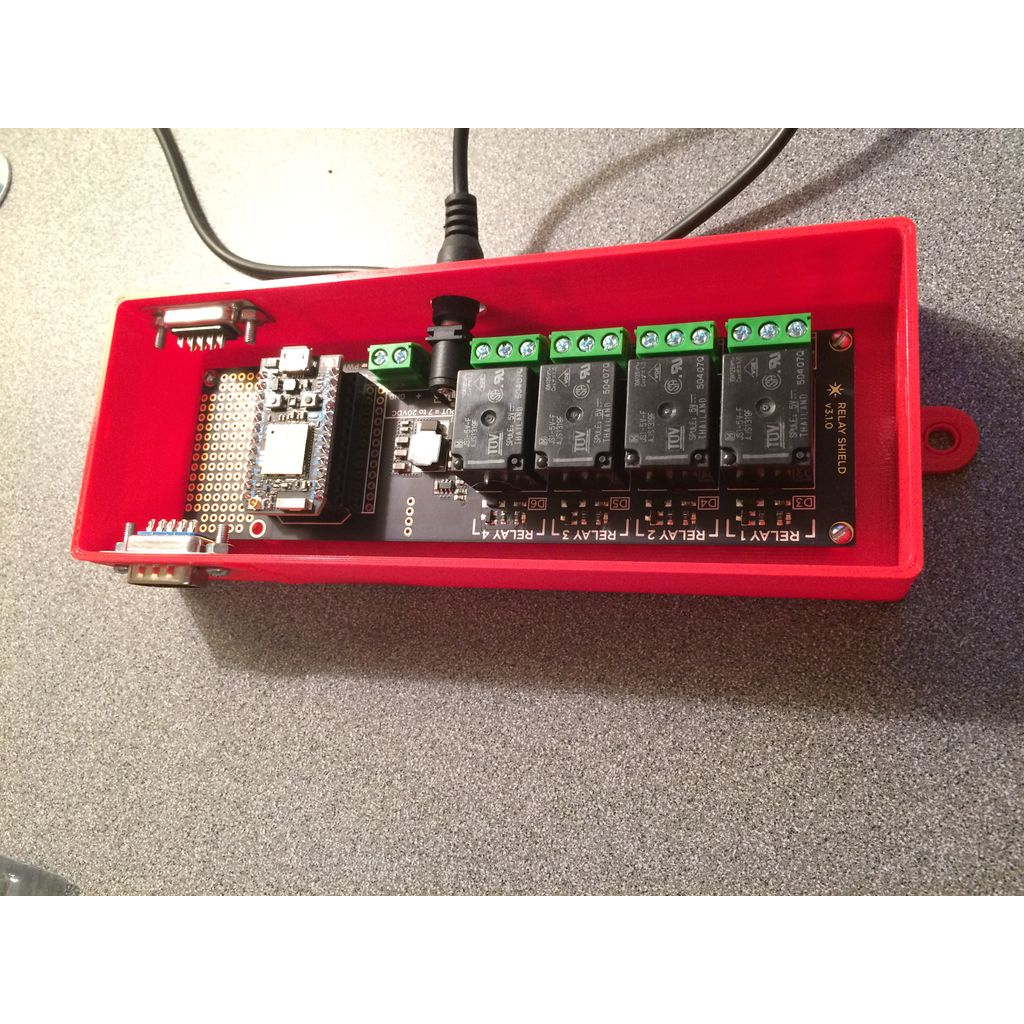

I am making a new sprinkler control system using a Particle Photon and it's associated 4 Relay Shield. I could not find a case for it, so I made one! There are some additional holes with labeling for the DB9 connectors I need. I created the case approximately 1/4 inch larger on all sides for wiring and things I could not think of now. : )

Additionally I included mounting tabs for wall mounting.

All LEDs are viewable with the top in place (see holes in the lid). The USB connector is NOT accessible in the case as I do all my programming via WiFi.

Have Fun!

PowerSpec / FlashForge

No

No

.1 Lid / .2 Case

10%

I printed the case and lid in PLA at 220C (Extruder) and 50C (Platform). The lid I printed in .1 resolution to be able to read the labels. On my printer the fill function between the letters does not work well at resolution above .1. Never had time to figure out the issue. Other than that, truly any resolution will do.

Was told the lid latches fit a little too tight.
Adjusted the latches back a total of .02" so not to distort the case.
