This is a strong and light Tiny Whoop style (25.5 x 25.5 mounting) canopy specifically deigned to accept:

• HDZero - Nano camera (also other 14mm nano style cameras)
• Happymodel - ELRS PP / EP2 receivers (the RX fits behind the camera on a tray - glue in place)
• VTX antenna (these are light weight & cheap - 4mm diameter single element type) - friction fit or glue

The canopy provides good protection and stability for the camera.

Four versions included:

NEW - TW (Tiny Whoop) Fastback version

NEW - TP (Tooth Pick) Fastback version

Old version - tiny whoop style - taller version with screws from the top down into a regular whoop frame

Old version - toothpick style - taller version that takes 2mm nylon nuts with the mounting bolts coming up through the frame from the bottom up

The new versions have improved characteristics - lighter (2 grams - printed in ABS), refined to improve strength with better protection for longer lenses.

Note - a newer lighter (1g) canopy for - HDZero - Nano lite - https://www.printables.com/model/401939-whoop-micro-canopy-hd-zero-nano-lite-camera

The micros in the pictures

Whoop

• Whoop - Trashcan 75mm frame
• Happymodel Crazybee F4 Pro V3
• Happymodel PP / EP2 RX
• Happymodel EX102 10000kv motors (2S =13000kv / 3S = 10000kv)
• HDZero whoop VTX
• HDZero nano camera
• Firmware Betaflight 4.3 / BlueJay 0.16 @ 96k

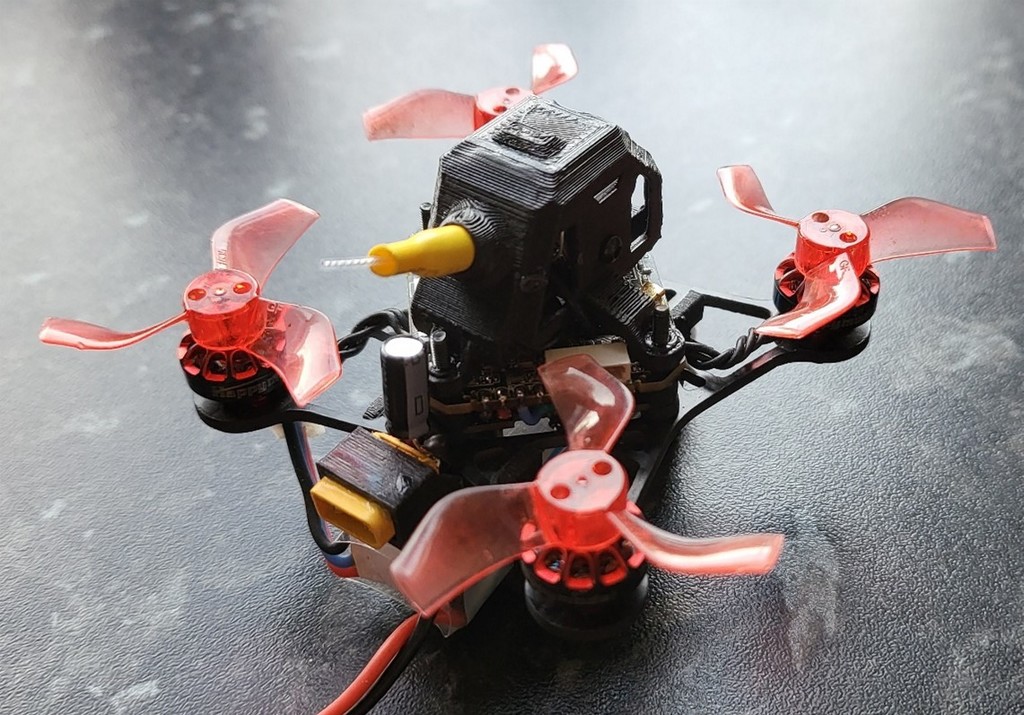

TKS Rocket

• TKS 1s Rocket freestyle frame 75mm 2mm carbon (fitted with 2S) - https://www.jacks3dprinting.com/collections/frames/products/tks-65mm
• Happymodel Crazybee F4 Pro V3
• Happymodel EP2 RX
• Happymodel EX102 10000kv motors (2S =13000kv / 3S = 10000kv)
• HDZero whoop VTX
• HDZero nano camera
• TKS 75mm frame
• Custom battery mount - https://www.thingiverse.com/thing:4831044
• Firmware Betaflight 4.3 / BlueJay 0.16 @ 96k

Presets for Betaflight:

• https://github.com/Bacon2002/firmware-presets
• Bacon2002-Presets-Live

The canopy was designed for a TKS / whoops / micros / toothpick frame.

TKS Rocket 2S 78mm frame but fitted with 3S to follow... https://www.jacks3dprinting.com/products/tks-2s-rocket-race-78mm-2-5mm-carbon-with-motor-screws

Also see the following for different version which can accommodate lollypop style antenna: https://www.thingiverse.com/thing:4830204 https://www.thingiverse.com/thing:4831044
