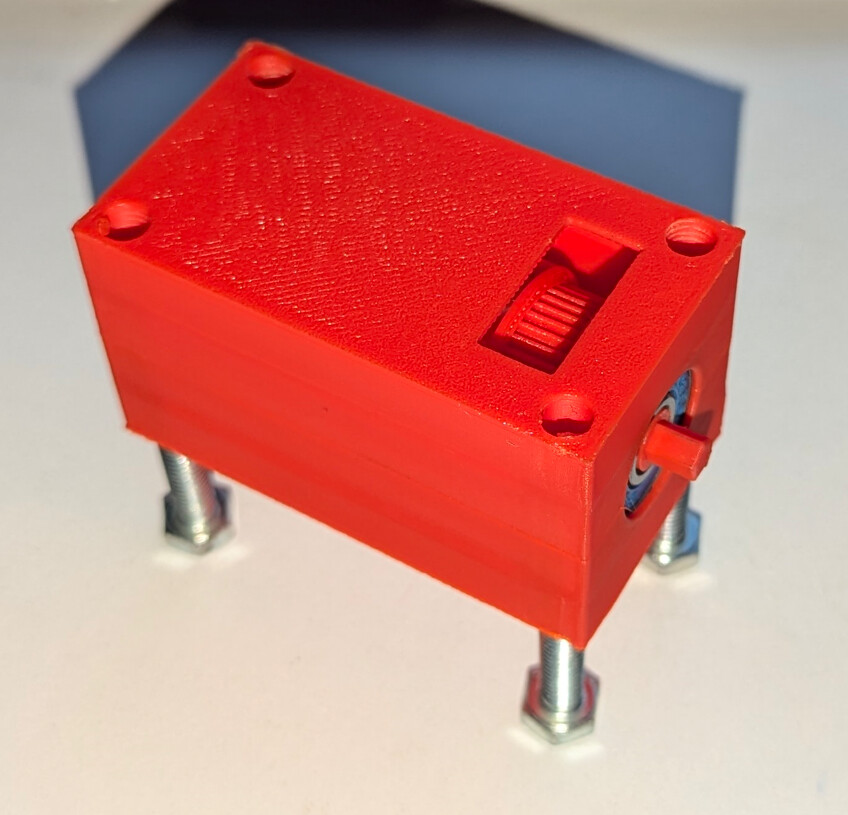

Compact differential that's supposed to be driven by a GT2 timing belt.

Its compact size allows for installation in even small projects.

Measurements: 69mm x 38mm x 38mm.

GT2 tooth count: 44.

Designed with common sized bearings.

To build it, you'll need:

4x Bearing:

• width 7mm,
• outer diameter 22mm,
• inner diameter 8mm,

2x Bearing:

• width 5mm,
• outer diameter 13mm,
• inner diameter 6mm,

Printed parts:

1x diff_gt2_cage.stI

2x diff_pinion_gear.stl

2x diff_side_gear.stl

1x diff_casing_full.stl

1x diff_casing_empty.stl

1x diff_pinion_shaft.stl

2x hex_shaft.stl

2x spacer_small.stl

2x spacer_big.stl
