Update 27/4/2019:

• add standing with string and without string.

Update 26/4/2019:

• add direction button you can choose your own style (sorry I forgot it).
• add another button style.
• add another back case with push switch.

for more detail can see preview in my youtube channel below
https://www.youtube.com/watch?v=OZo8GGAmHlg

Description:

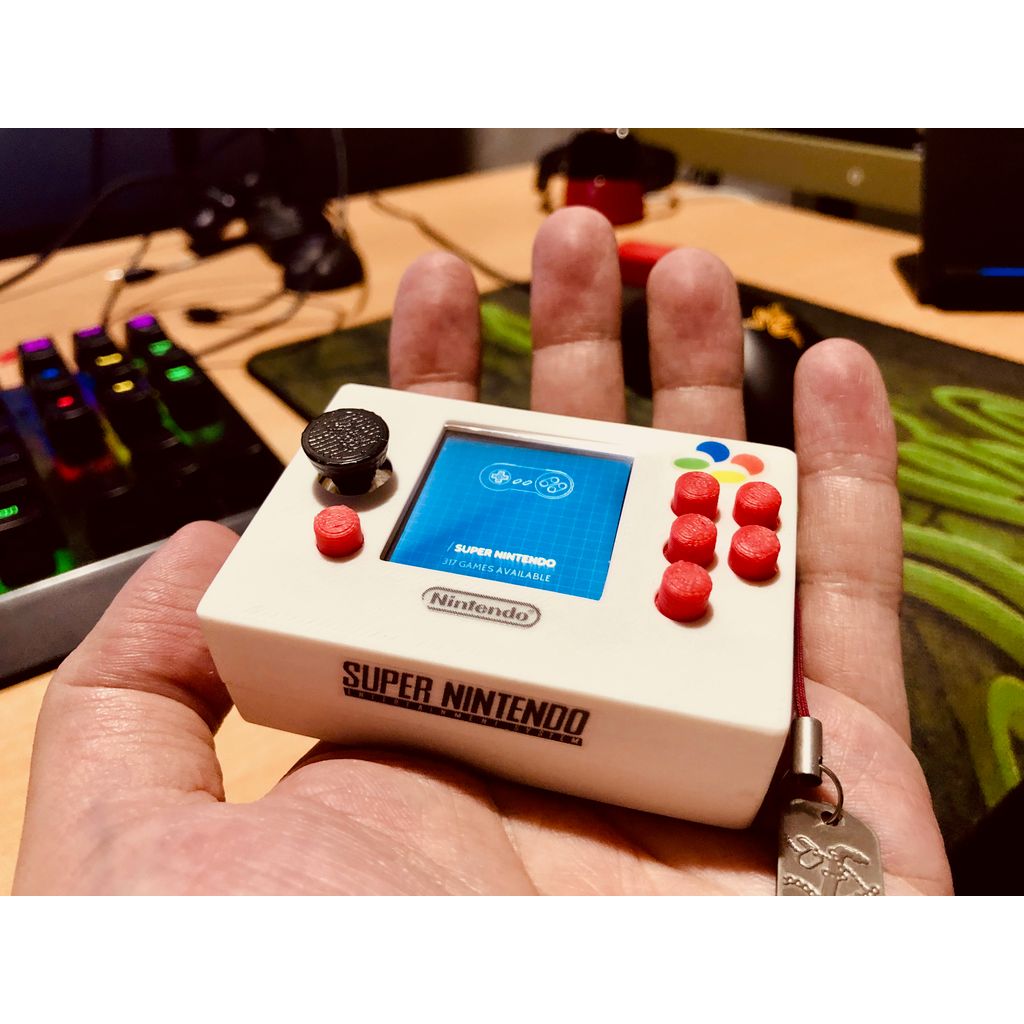

This is my third Mini SNES Pi Zero. It combine both advantage of 1st and 2nd version.
Part list:

1. Raspberry Pi Game Zero 1.54 inch HAT (I buy from here)
   https://www.aliexpress.com/item/Raspberry-Pi-Game-zero-W-2B-3B-1-54inch-mini-LCD-touchscreen/32970035492.html?spm=a2g0s.12269583.0.0.52ed43fcluADo8

2. Pi Zero (In my built I just use normal one not W)
   https://www.aliexpress.com/item/Original-Raspberry-Pi-Zero-V-1-3-Board-with-1GHz-CPU-512MB-RAM-Raspberry-Pi-Zero/32895891785.html?spm=a2g0s.9042311.0.0.3da24c4dMJO7KF

3. Micro Push Button Switch (This one I just try from the demo product I use the No.7 in the following shop)
   https://www.aliexpress.com/item/25Types-lot-Assorted-Micro-Push-Button-Tact-Switch-Reset-Mini-Leaf-Switch-SMD-DIP-2-4/32847323765.html?spm=a2g0s.12269583.0.0.33b12c75aqH7a9

4. Speaker any speaker with size 28x16x6 mm or just try this one
   https://www.aliexpress.com/item/5Pcs-GPS-Loudspeaker-1W-8ohm-Small-Trumpet-14x20mm-Loud-Speaker-Speak-Diy-Electronic-Module-Diy-Kit/32957581480.html?spm=a2g0s.9042311.0.0.3da24c4dMJO7KF

5. Battery: you can check over here
   https://www.aliexpress.com/store/1941041

*** If you purchase part from Aliexpress "avoid" this shop (ANA FANG)

https://www.aliexpress.com/store/912623196

This is SCAM shop. They send empty package with no item. The trick they use is deliver with register mail, while you get item and open there is empty nothing in the mail. The part might cheap and you can let it go but it waste time to wait for new order.

This build must change all button to the small one (3). To remove the button that come with the HAT you must be super careful or if thing turn ugly you must by pass it directly from Raspberry Pi board. This one like the Mini SNES Pi Zero Slim, you must remove one of mini usb port, HDMI port also.

for other easier built you can find here.
Mini SNES Pi Zero Slim:
https://www.thingiverse.com/thing:3482107

Mini SNES Pi Zero:
https://www.thingiverse.com/thing:3475940

WARNING buy product from China store some part might not work please notices this before purchase.

QIDI Tech

No

No

0.4 mm

100%
