Summary

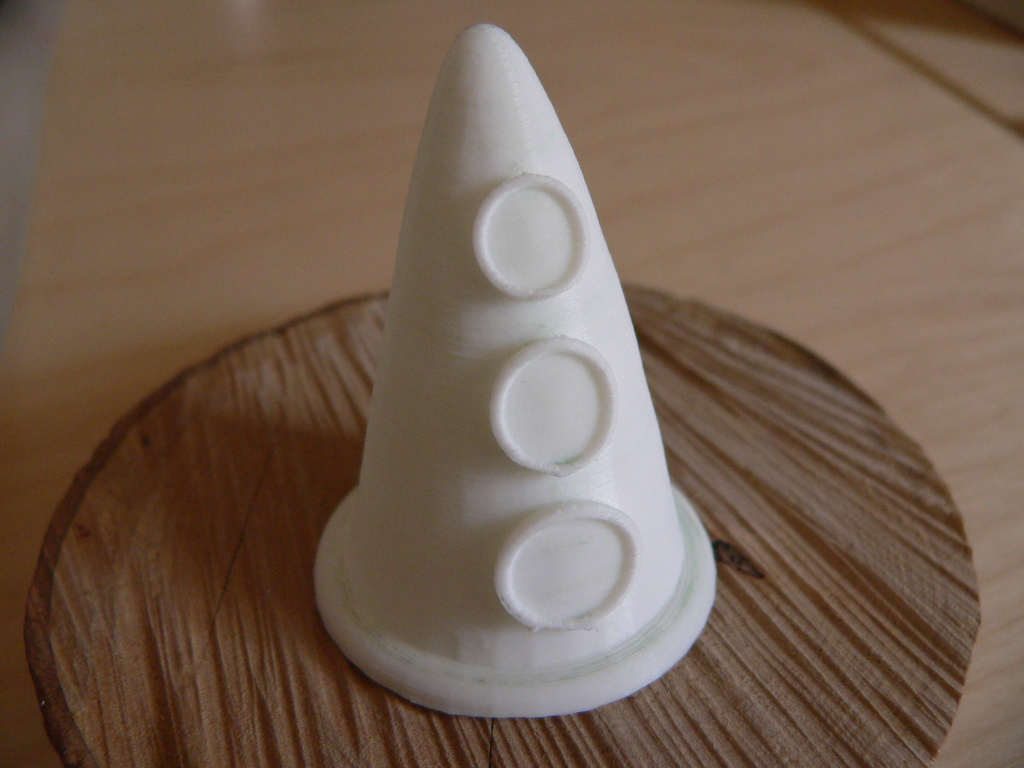

Green Tentacle, the good guy from Day of the Tentacle (1993).
Print Settings
Printer:
ANET A8
Rafts:
No
Supports:
Yes
Resolution:
0.1mm
Infill:
0%
Notes:
Bottom, top, shell thickness: 1.2mm.
Print speed: 30mm/s, inner shell: 20mm/s, outer shell: 10mm/s.
I also restricted flow to 73%, which allows me to fake a 0.3mm nozzle instead of the actual 0.4mm.
Takes about 3 hours to print using these settings.
How I Designed This
I imported the .stl file in blender and shrunk the eyebrow using tools in sculpt mode. I was lucky because the eyebrow and the body had no common vertices although they overlapped, so I could check the "front faces only" option of the tool that left the body untouched when worked from the inside. After shrinking the eyebrow enough i could select and delete it completely. For the arms, I used similar tools and enabled "dyntopo" (dynamic topology) to make the mesh simpler. I used a colored cylinder as a guide to make the cuts as round as possible, yet I know they are not perfect, they are just hard to notice.
