I have printed a geocache pendant design (https://www.thingiverse.com/thing:3446444) several times to hold small items (e.g., vitamins for travel).
I had two issues with the printed parts - the threads were often very tight and changing the barrel length was not straightforward.
This is a new design inspired by that pendant - not a remix.
My experience is that the threads work easily straight off the printer. Also, the working interior length can be easily adjusted via the content_length parameter.

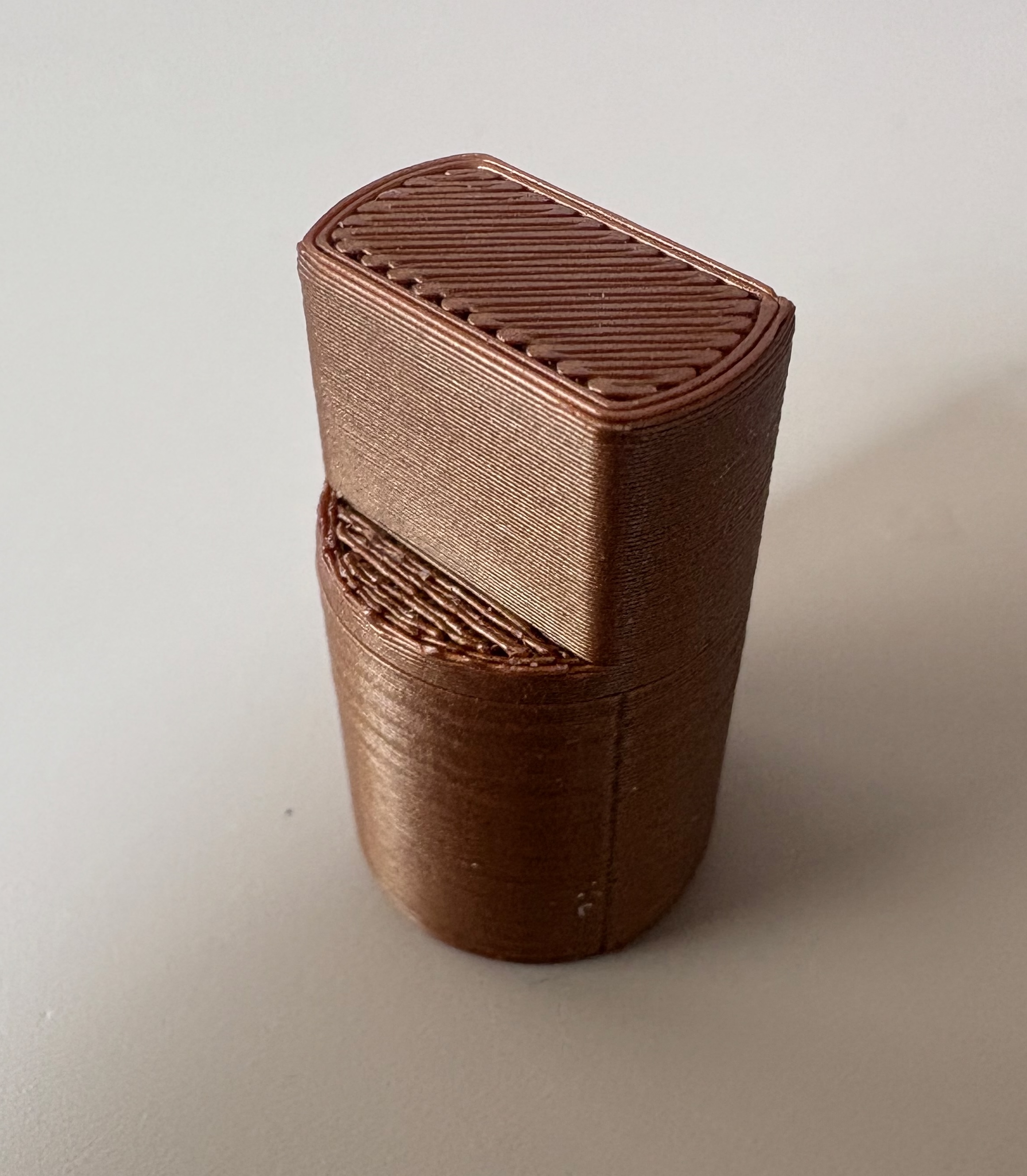

The content_length is the length of the tube depth minus the threaded portion of the cap. The picture shown is a test print of cap and tube printed in copper PLA. In this instance the content_length was 10mm. The included STL file for the tube has a content_length of 43mm (my YubiKey is 42 mm long).
I printed the cap with threads up using brim and build-plate supports.
