A remix of Blondihacks' Floppy Emu (Model B) Case: a case for Steve Chamberlin's (Big Mess O' Wires) Floppy Emu Disk Emulator for Apple II, Macintosh, and Lisa.
Modifications:
- distribution contains all STLs needed to print case
- case now compatible with the older Model A emulator (SD card) and the current Model B (micro-SD card)

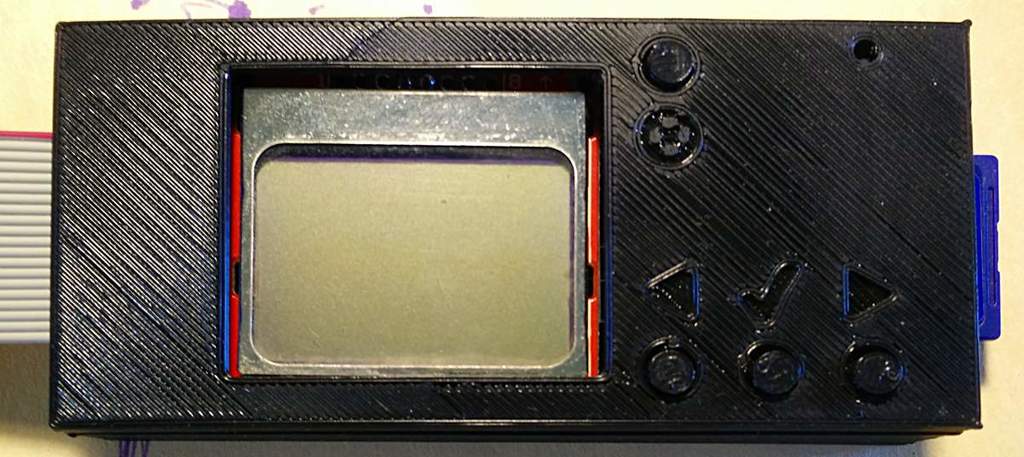

- top now has hold for status LED, larger display window for easier fitting, and engraved function icons for the control buttons
- base now has larger SD/µSD slot, larger cutout for ribbon cable, and indents for the top catches to locate and stay in place.
Print Settings
Printer:
Reach 3D
Rafts:
No
Supports:
No
Resolution:
0.2 mm
Infill:
35 %
Notes:
Print the buttons separately: they will need a raft so they don't fall over. Make sure all of the raft is cut away and the tip of the rutton is flat, or it won't engage with the button.
The base and the top need no special print settings.Post-Printing
A way to keep the buttons in place is to put masking tape on the top surface of the case and stick the buttons through from the other side. You may need a tiny drop of glue to keep them attached to the tactile buttons on the PCB.
The top of the case will be slightly bowed outwards when fitted.
