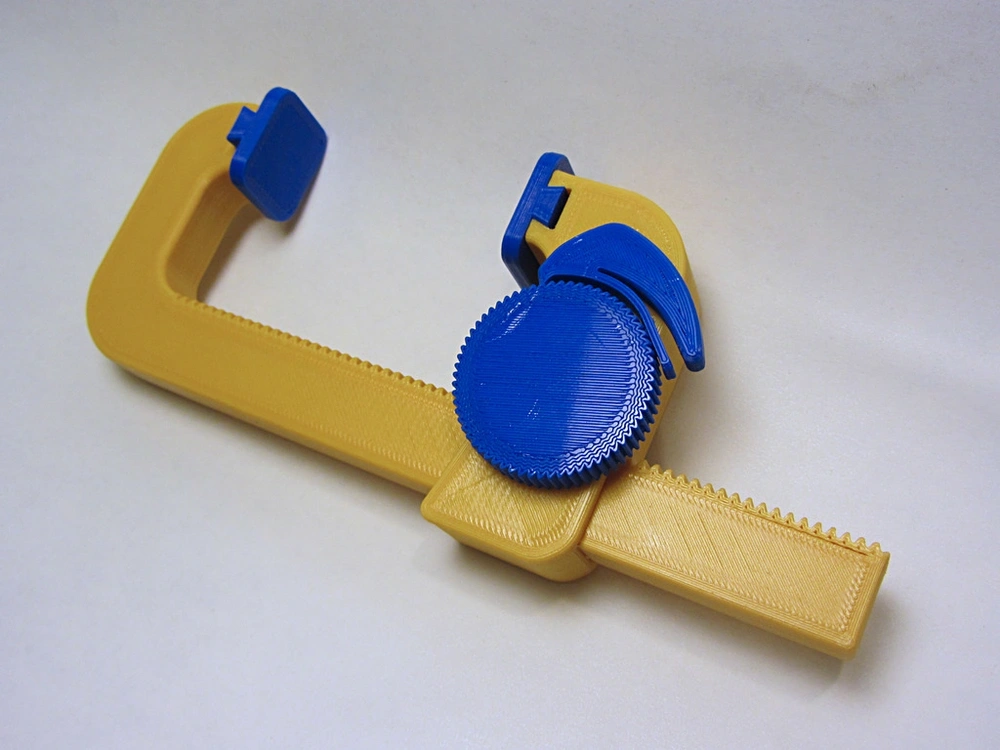

This 110-millimeter lightweight clamp uses a quick-adjusting gear and rack mechanism to open and close the clamp, and a spring-release ratchet to secure the clamp. It can be printed with minimal support and does not require additional fasteners.

Print settings

Printers:

AUDIO

Raft foundation:

Support:

Yes

Resolution:

Fill in:

30%

Remark:

After printing ======

After printing, sand off any burrs or protrusions on any joining surfaces. Applying a small amount of Vaseline or light lubricating oil to moving parts can make them run more smoothly. During assembly, first insert the pawl into the hole on the side of the movable jaw. Then insert the gear into the keyhole-shaped groove on the jaw and slide it up to the pawl. Next, slide the movable jaw onto the main body. Finally, slide the washer into the dovetail groove of the jaw. Rotate the knob counterclockwise to clamp
