Design Concept

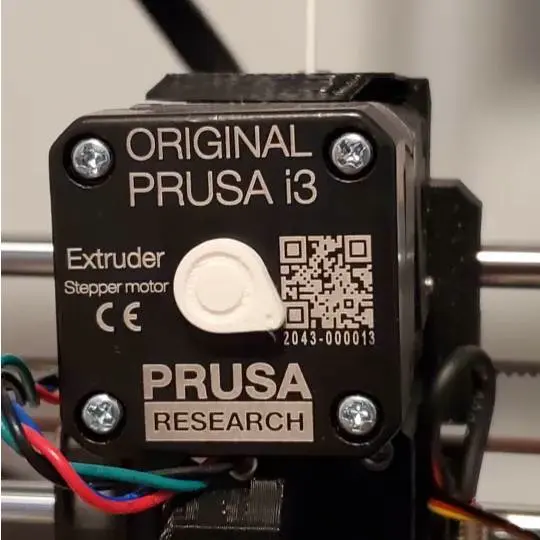

The Small Extruder Visualizer is designed to enhance the experience of watching your Prusa i3 printer in action. By hooking up onto the extruder stepper motor, it allows users to visualize the movement during printing processes.

Purpose

This model is intended for use in monitoring and potentially diagnosing extruder motor activities. Great for enthusiasts who love to both understand and showcase the functionality of their 3D printer.

Printing Tips

For optimal transparency and viewing, use a translucent filament. Printing with a high infill and at a slow speed can enhance the visualizer's aesthetic and functional engagement.

Assembly Instructions

Attach the visualizer to the stepper motor by lining up the slots with the motor's spinner. Ensure it is firmly secured but easily removable.
