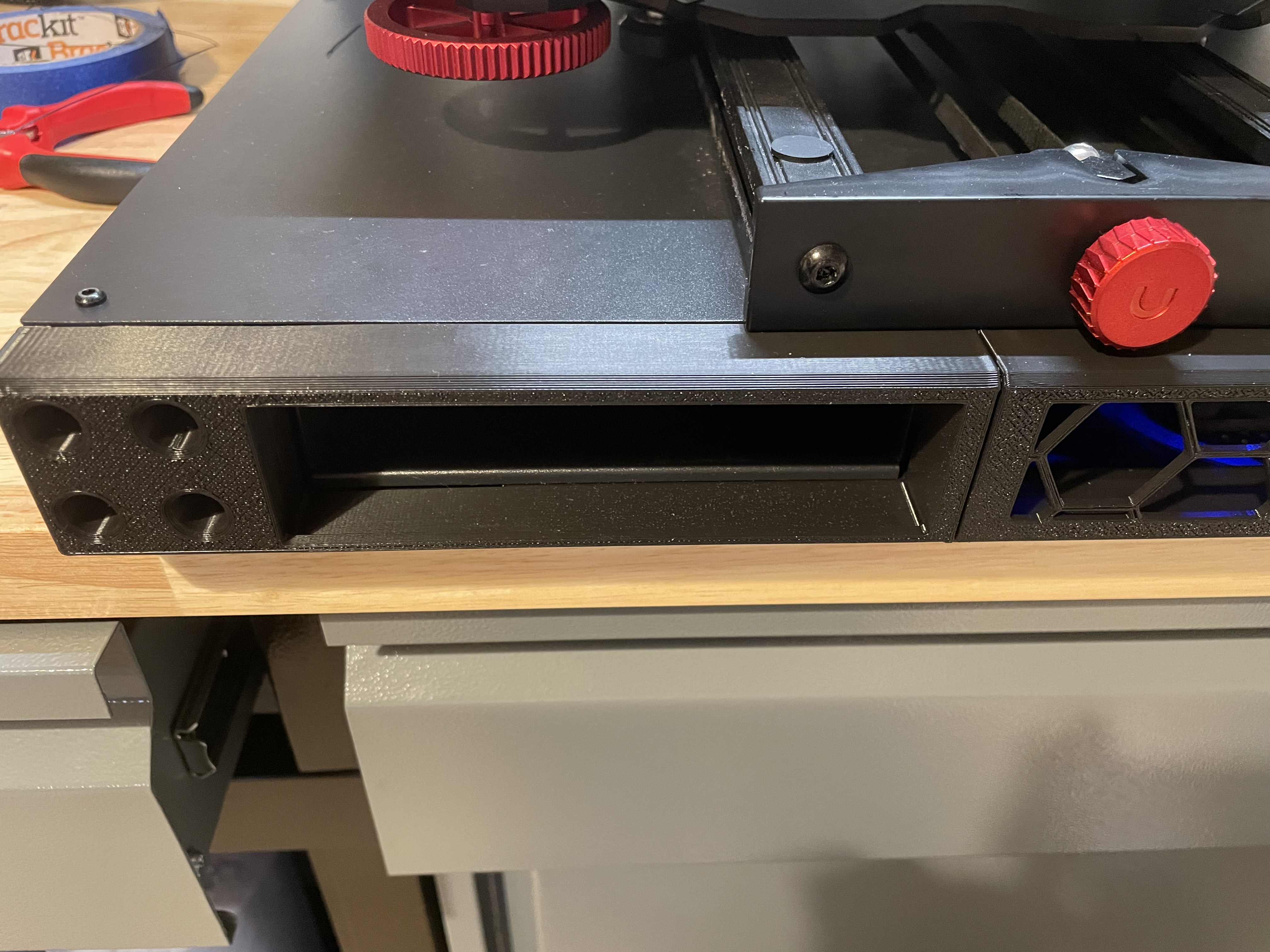

Hi, so this is my custom-designed front panel for the CR10 Smart and Smart PRO, I've designed it to give the front end a nicer look in my opinion, and to get rid of the now useless display as my printer runs Klipper and so is headless being completely controlled by the Pi Zero 2w inside.

As to not lose tool tray functionality I have designed my own which utilizes the original magnet which should be press-fit in the back and be glued in, (I will use hot glue as a semi-permanent solution.

If you need an alternate file format, leave a comment and I'll see if I can get it in that.

General instructions -

DO NOT USE ALL 4 BOLT HOLES, THE TOP OUT CORNER ONES CAN HIT THE SMALL BOLTS THAT SECURE THE STEEL PLATE TO THE 4040 EXTRUSIONS.

Printed in Esun PLA+

Best to slice the panel parts with about 10 - 15% infill, I used Cubic.

The tool tray front panel will need supports on its mating studs so they do not droop and press-fit nicely into the vented front panel.

The tray can be printed with about 10 to 5% infill but be careful with the handle as it will need infill. make sure to use supports on the handle as it overhangs big time.

To fit the front panel, you will need to take the bottom tray of the printer off and remove the antennae which are attached to the original front panel.
