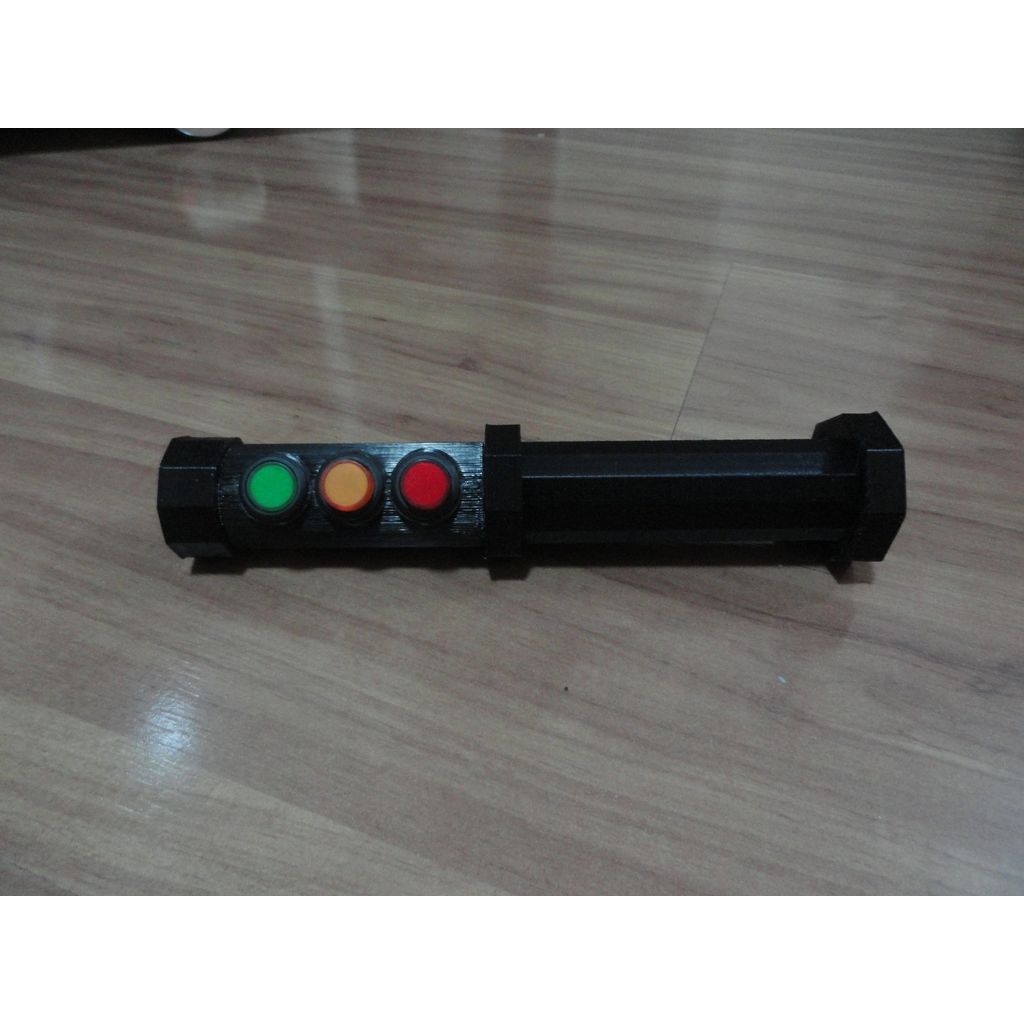

Flashlight in format of Star Wars - Jedi Lightsaber.

Easy to print and mount.
New version(more space for electronics).

You do not need to print the tip and blade, they are optional.
Print how many blades you want.
1, 2 or 3 RGB LEDs, more LEDs more light, less time.

7 different colors changing the buttons:
Red, Green, Blue, Yellow, Magenta, Cyan and White.

You can use normal LEDs with colors or not, too.
The blade is very delicate... no fights... :-(

Big blades will not shine for all, 1 RGB LED have no power to light more than one blade segment and the tip, for a good flashlight you can remove the blades and tip or use only the tip.

You can help me to do more things like this.
Buy my designs at pinshape:http://pinshape.com/users/27920-jsirgado
The OpenSCAD file is there, you can change all.

All you need.

1, 2 or 3x RBG LED, at your choice.
3x Color Button with 16mm diameter.
1x Screw 3mm diameter 10mm to 30mm height.
1x Battery 3.7V Li-ion 18650.
1x ~82 ohms resistor (Red in the LED).
2x ~24 ohms resistor (Green and Blue in the LED).
wire and PVC or Hot glue.

If you have problems to mount the blade,
use a cup with water at 70 to 90 degrees Celsius,
to make it easy.

Glue all together following the blueprint image.
Just for the "battery_lock" do not use glue, use the 3mm screw.
