The MiniSkybot robot is an educational open robot. Its chassis is minimal: it consist only of two tricked servos joined by two U-pieces.

Now the robot is in an early stage of development. We are testing different minimal chassis.

You can see a video Here: http://www.youtube.com/watch?v=x1v-4ejwBKk
(This video is intended for my students so I am talking in Spanish)

More information here:
http://www.iearobotics.com/wiki/index.php?title=Mini-Skybot:_Ch%C3%A1sis

The pieces have been designed with OpenScad. All the virtual pieces have been assembled with Freecad

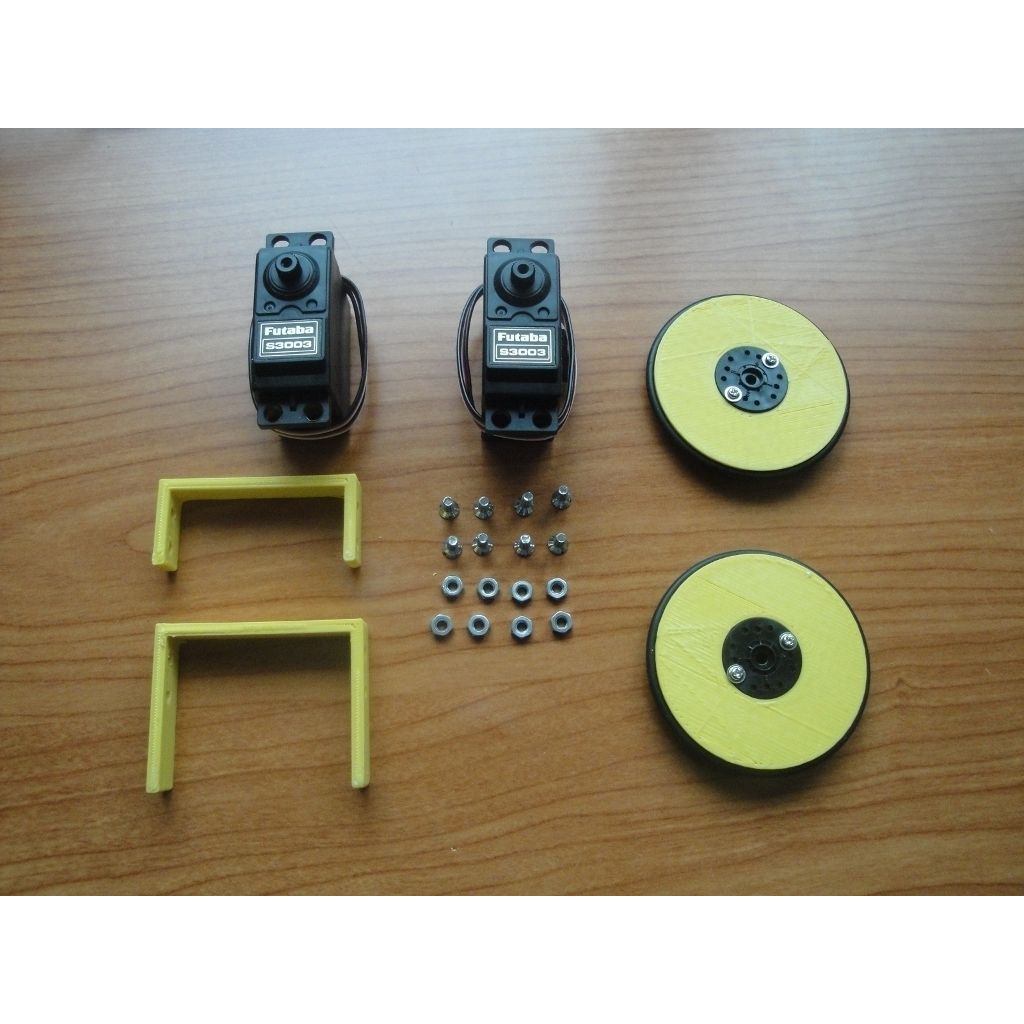

• Print the two U-pieces (front and rear)
• Print two Servo-wheels ( http://www.thingiverse.com/thing:4767 )
• Join the two U-pieces to the servos by means of 8 M3 bolts and nuts

The pieces have been printed in ABS with a Makerbot Cupcake MK5. Replicator 0020 and Skeinforge 0006. The profile chosen is cupcake-mk5-abs with the following modifications:

• speed/Feedrate (mm/s): 38
• fill/Extra Shells on Base (layers): 2
• fill/Extra Shells on Sparse Layer (layers): 2

More pictures of the building process can be found here:

http://www.iearobotics.com/wiki/index.php?title=Mini-Skybot:_Ch%C3%A1sis#Montaje

UPDATE May-23rd-2011:

The new Miniskybot V1.0 is ready! http://www.thingiverse.com/thing:7989
