Design intention

• Replace the damaged joystick on the PS4 controller
• Designed for 3D printing
• The overhangs and bridges have been adjusted and can work on any calibrated 3D printer.
• The joystick is slightly longer

Printed parts

• Direction: STL has sent the correct invoice
• SupportNo support is needed. The support is part of the STL file.
• Materials: Any material is acceptable
• Fill in the blankIt doesn't matter. Just do it 100%
• Floor heightIt can work normally with a layer height of 0.2 mm, and the effect will be better with a layer height of 0.1 mm

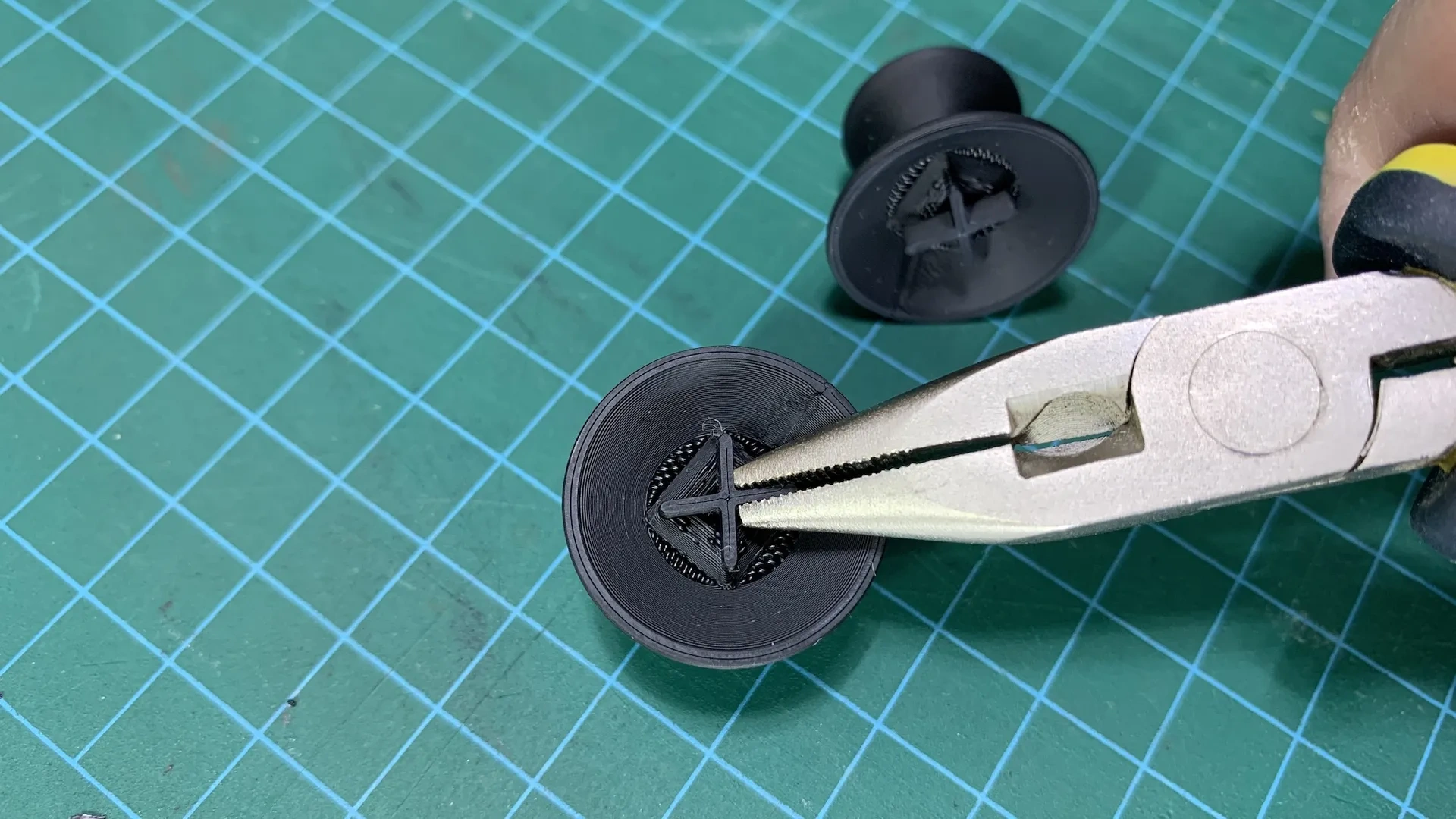

Remove the central support

After printing, you just need to disconnect the X support from the bottom

----------------

[2024-06-01] Update

• I've added the step file
