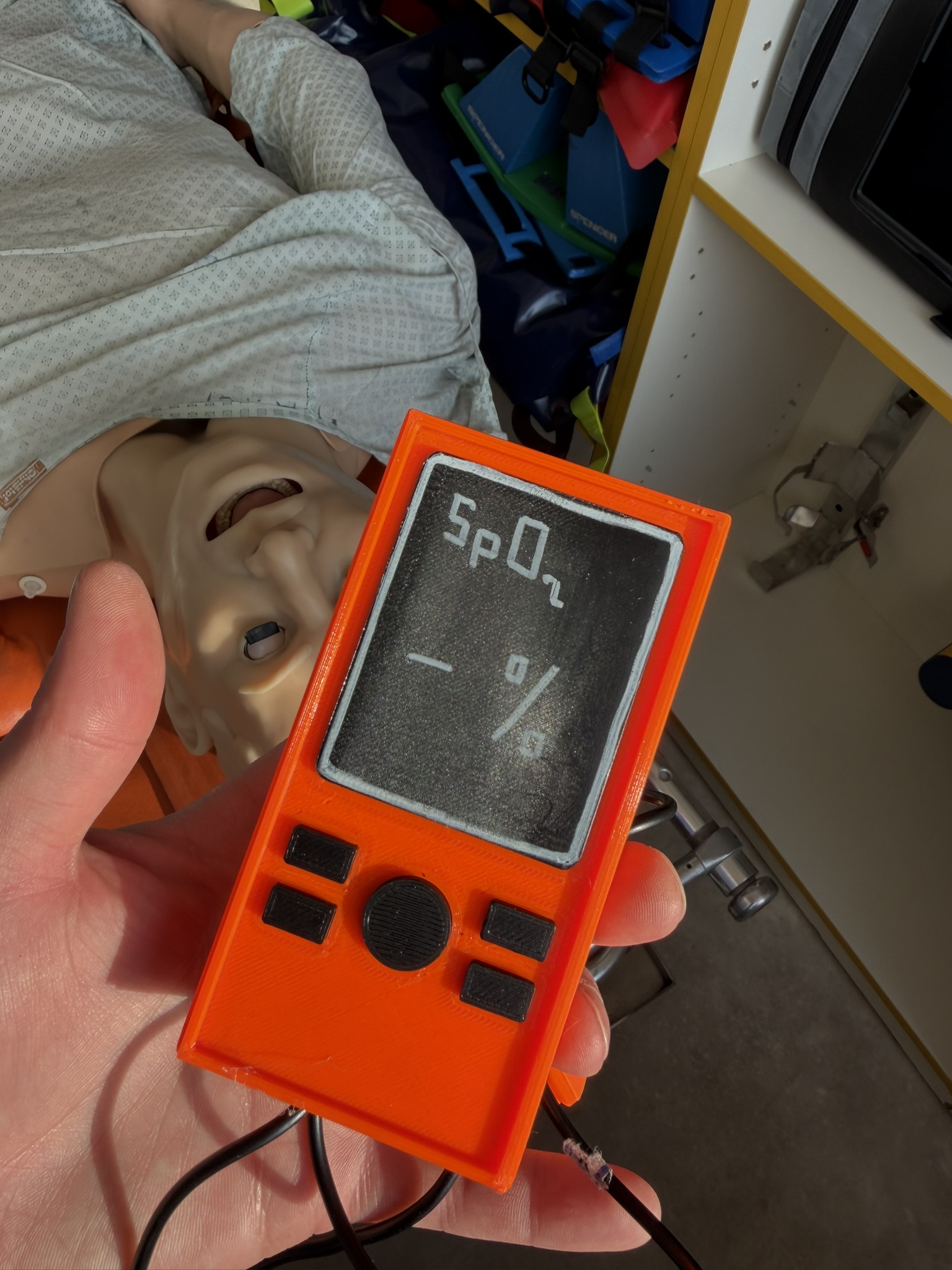

Model Description – Pulse Oximeter Simulation Device

This model is designed as a teaching aid for medical simulation training, representing a pulse oximeter device. It is intended for educational use in scenarios involving patient monitoring and prehospital or clinical training.

Please note that the model is not complete on its own. It needs to be supplemented with a cable and a finger sensor, which can be downloaded separately from the provided link:

https://www.printables.com/model/457396-spo2-sensor-prop-for-healthcare-simulation

Cable can be instaled with glue gun in the bottom part.

Printing Recommendations:

• Material: PETG (recommended) or PLA

• Layer height: 0.2 mm

• Perimeters (walls): 3

• Printer used/tested on: Prusa Mini+

Color:
Color choice is entirely up to the user. However, if the display part is printed in black or white, it can be optionally enhanced by manually adding values or markings (e.g., with a permanent marker) to simulate real readings.

At the moment, there is no photo of the final assembled model available, but the model has been tested and is fully functional for simulation purposes.

Enjoy.
