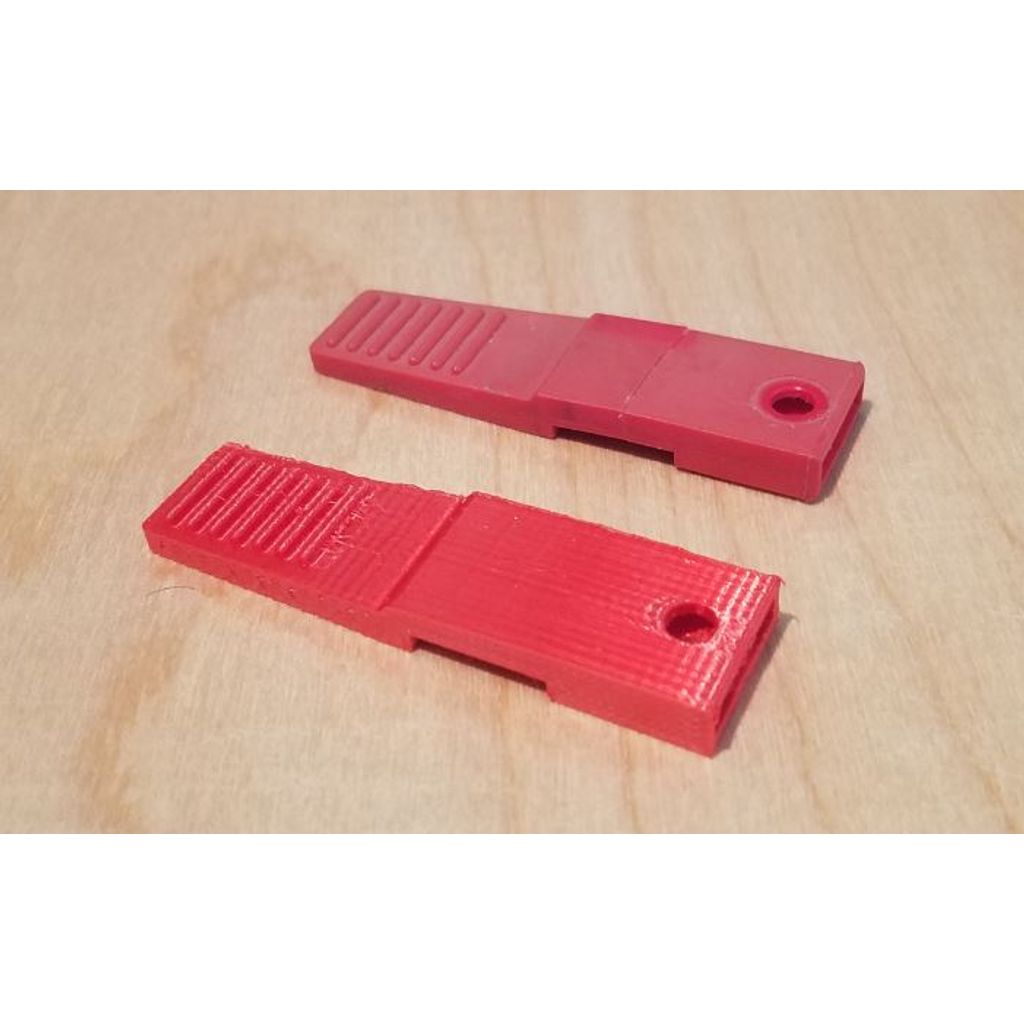

This is the Latch for the Exit / Egress Window on a Rockwood Mini Lite travel trailer. With age, and an accidential bumping, the original latch broke.

You will need to drill out the existing rivet with a 0.201" drill.

NOTE: This model is in metric units (mm). Scale accordingly for your application.

Update: 07-April-2022: The units on my initial model were set incorrectly. If you downloaded that version you will need to scale it down by 25.4. (Overall values are 69.4 x 19.3 x 6.8)

V2 has been updated to the correct units and (after printing one for my use) the width of the opening for the metal bar has been reduced to remove excess side-to-side movement.

Robo 3D

R1 ABS + PLA Model

Doesn't Matter

Yes

Fine

100%

This was printed on its side so I chose to use rafts and supports. I printed with PLA material although I would recommend ABS or PETG to help avoid cracking when the rivet is installed.

I recommend removing the entire latch assembly from the window frame to allow easier setting of the rivet.

I used this rivet: https://www.mcmaster.com/rivets/rivet-type~hollow/diameter~3-16/head-diameter~3-8/head-height~0-047/for-material-thickness~0-253-0-272/

One thing to note; the head and rolled-over end of the rivet must fit through the opening in the window frame.
