A 3D Printed Training Kit for TEM Sample Loading Demonstration.

Please check my page for more info

https://zxmake.dev/2020/09/29/a-3d-printed-training-kit-for-tem-sample-loading-demonstration/

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

0.1mm for holy carbon, 0.28 for the rest

Infill:

15-20%

Filament: eSUN PLA


Notes:

Resolution: For holy carbon layer, I printed one 0.08mm layer with under extruded flow setting to reveal the tiny holes. For the rest, I was using 0.28mm to save time and material.

Infill: 15-20% (I was using 15% for the hex tool and 20% for the rest)

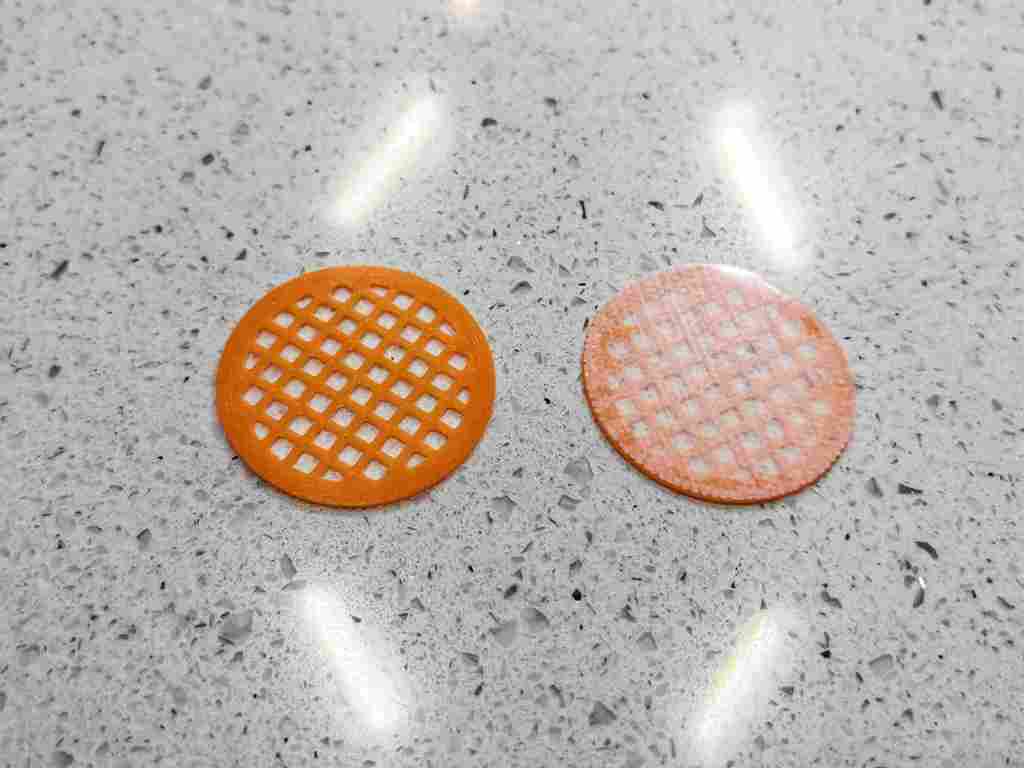

Other: No need for raft or support. Better to add brim for printing hex tool due to its aspect ratio. Holy carbon layer and copper grid are superglued together.

Category: Physics & Astronomy
