If you would like to know more about this project you can read about it on my website in my new article series!
Part 1

This is a basic design for a quadcopter chassis. Printed at 100% and fully assembled it should measure roughly 35cmx35cm. The design provides full blade clearance for 20cm props.

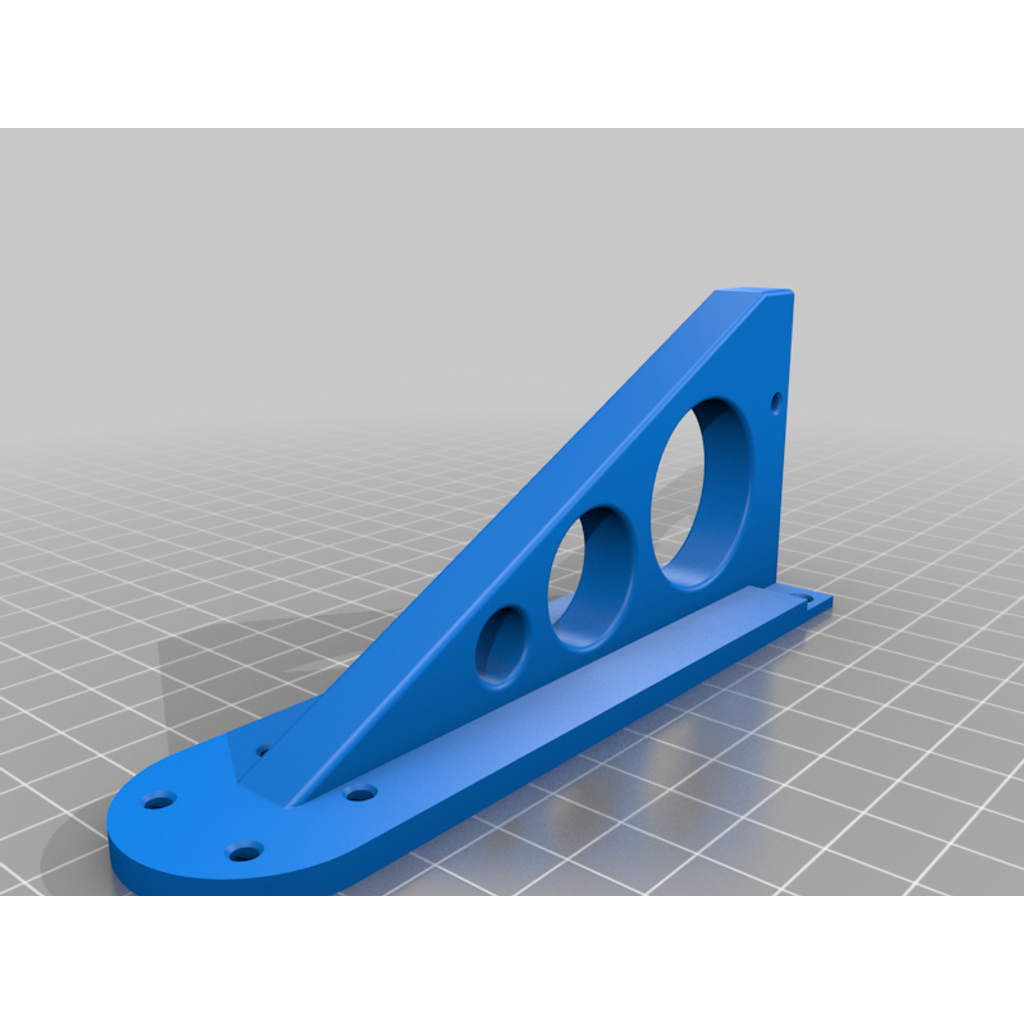

The construction involves 4xstrut, 1xtop_plate, 1xbottom_plate and 12xM3 screws and nuts. All holes are sized to tightly fit M3 hardware, however depending on your print you may need to widen the holes.

The motor mounting holes on each strut are designed to fit an Emax CF2822 motor.

If you like my work, you can support me on Patreon

Creality

Ender 3 Pro

No

Yes

0.2

40
