Magnetic Diffuser Modifier for Godox V100 Flash

This 3D-printed magnetic diffuser attachment is specifically designed for the Godox V100 flash light to soften and diffuse harsh light output. The diffuser provides professional-quality light modulation essential for studio and on-location photography.

Features:

• Custom-designed magnetic mounting system for Godox V100
• 155mm diameter for optimal light coverage
• 6 embedded neodymium magnet slots (4x4x2mm each)
• Quick-attach magnetic connection for easy installation
• Precision 3D printing for perfect fit and alignment
• Softens harsh flash light for flattering results
• Reduces shadows and creates even light distribution
• Professional light diffusion for studio photography
• Compatible with magnetic grid modifier for complete light control system

Design Specifications:

• Diameter: 155mm
• 6 magnet pockets: 4x4x2mm each
• Pre-cut slots ready for magnet insertion
• Optimized diffuser geometry for superior light scatter
• Smooth surface finish for professional appearance

Installation Instructions:

1. Print the model without supports
2. Clean and inspect all magnet slots
3. Insert neodymium magnets (N52 grade recommended) into the 6 designated 4x4x2mm pockets
4. Use CA glue or epoxy to secure magnets in place
5. Allow adhesive to cure fully before use
6. Attach to Godox V100 via magnetic connection
7. Works seamlessly with magnetic grid modifier

Recommended Materials:

• Neodymium magnets: N52 grade, 4x4x2mm (qty 6)
• Adhesive: Super glue (CA) or two-part epoxy
• Print material: PETG recommended for durability and diffusion properties

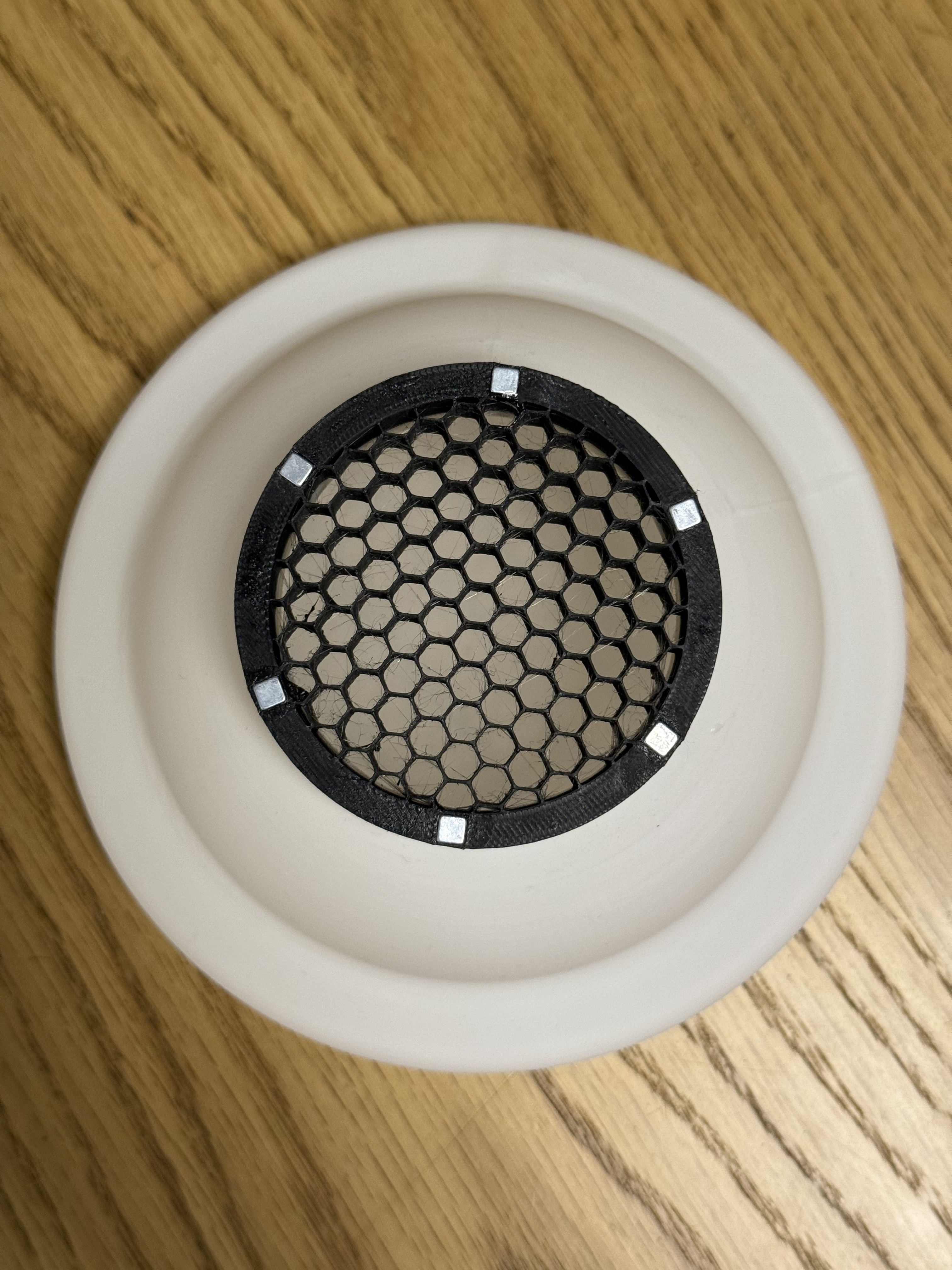

System Benefits: When combined with the magnetic grid modifier, you get a complete professional light shaping system for your Godox V100. Use the grid for directional control and the diffuser for soft, even illumination. Mix and match for unlimited creative possibilities.

Perfect for photographers and videographers looking for affordable, professional-grade light modifiers for flash photography.

This diffuser pairs perfectly with our Magnetic Grid for Godox V100 https://www.printables.com/model/1481437-magnetic-grid-for-godox-v100 to create a complete professional light control system. Stack them for versatile light shaping possibilities.
