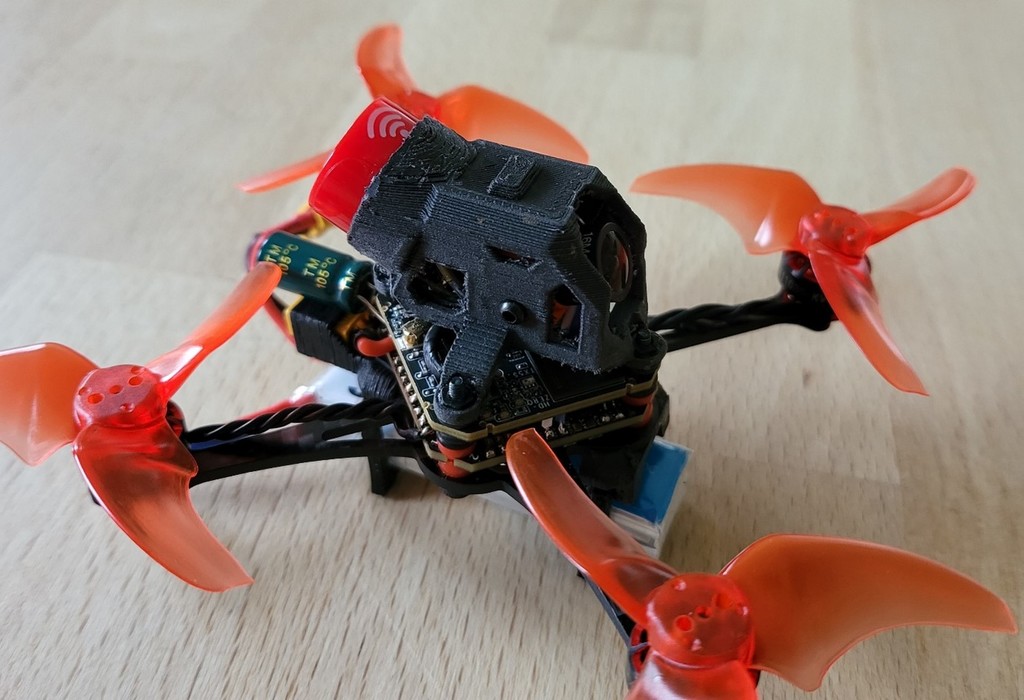

Toothpick / micro canopy, this is a light, strong and versatile canopy - 25.5 x 25.5 mounting points.

The canopy houses components:

• HDZero nano HD camera
• New Sport version - (Canopy2021sport.3mf) lower profile canopy, improved mount for ELRS PP or EP2 (no antenna), old version still shown for ImmersionRC zepto RX & Antenna
• Lollipop style vtx antenna

Note - a newer lighter (1g) canopy for - HDZero - Nano lite - https://www.printables.com/model/401939-whoop-micro-canopy-hd-zero-nano-lite-camera

Also see:

Battery mount - https://www.thingiverse.com/thing:4831044

Whoop canopy (small antenna) - https://www.thingiverse.com/thing:5235436

Hardware - M2 countersunk bolts (x4) & M2 nylon nuts (x4)

Fitting is achieved by using M2 countersunk bolts, for the Shark Byte system I use M2x20mm, if you are only using one board then shorter countersunk bolts (10 or 15m) should be used. These are fitted from the bottom with M2 nylon bolts on the top (these are recessed into the canopy).

BetaFPV HX100 SE build - specifications:

Frame - BetaFPV HX100

Flight controller - JHEMCU GHF411AIO F4 - (Previously I had used a Flywoo F745 but that is being used on another build and swapped for this more budget FC)

VTX - SharkByte @ 25mw

VTX antenna - Lollipop 3 style

Camera - Runcam (SharkByte) Caddx glass lens fitted - this lens is an improvement on stock and fits the canopy in terms of full protection

RX - ELRS PP

Motors - Eachine EX1103S KV7000

Custom design battery mounts - 3D printed in carbon fibre nylon & TPU bands also includes solid XT30 mount - https://www.thingiverse.com/thing:4831044

Battery - BetaFPV 2S 350mah / GNB 2S 450mah

Props - Emax Avan Rush 2.5

Weight - approx. 57g (ex battery)

ESC firmware - Blue Jay 0.16 @ 96khz

Flight controller firmware - Betaflight 4.3

Presets for Betaflight:

• https://github.com/Bacon2002/firmware-presets
• Bacon2002-Presets-Live

Print Settings

Printer:

Qiditech One

Rafts:

Yes

Supports:

Yes

Resolution:

200

Infill:

30

Filament:

PolyMaker ABS or Carbon fibre nylon is preferred

any

Notes:

Stronger and lighter with carbon fibre nylon.

Category: R/C Vehicles
