Summary

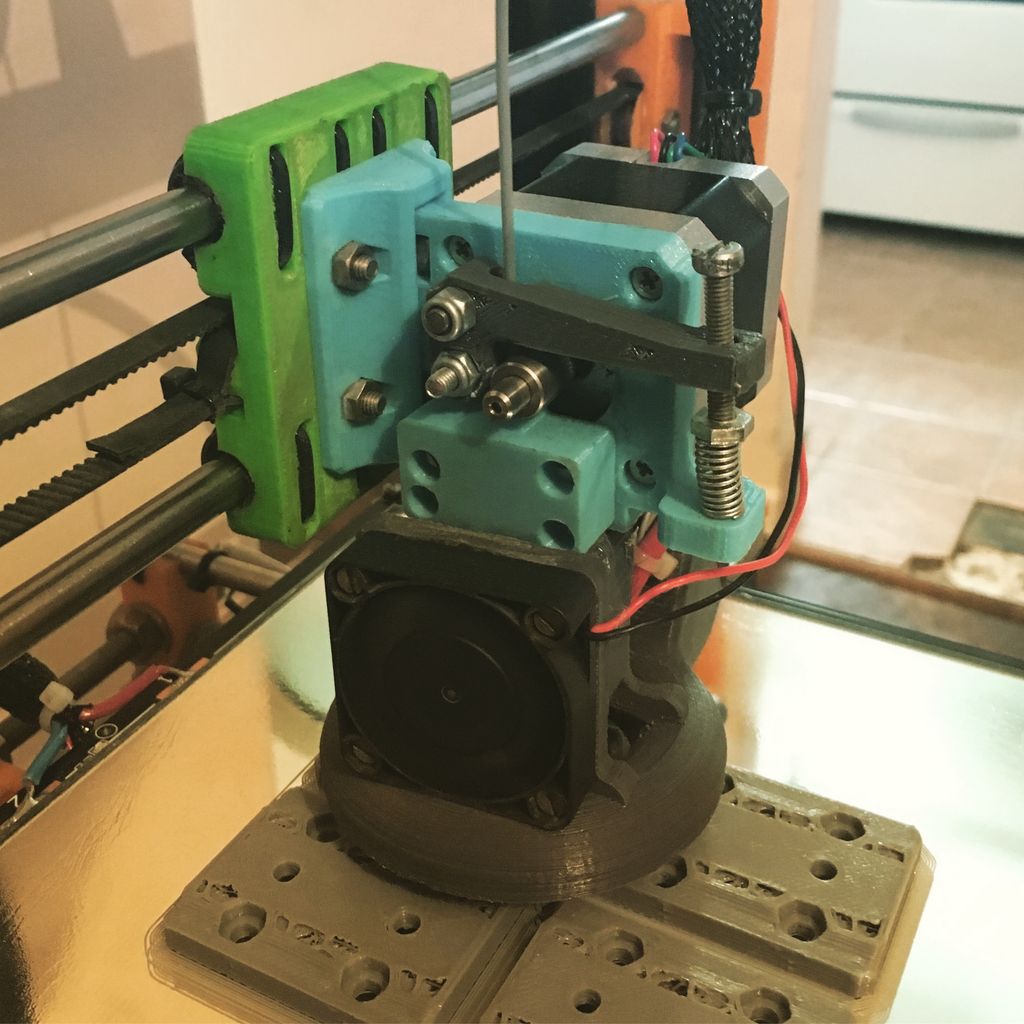

This is a Direct Drive Extruder for a Prusa i3 Rework mount. We use this extruder on the printers built by our students on our "Build your own 3D printer" workshops.

For E3D V6 and any hotend with the same mount dimensions.

It was designed by Juan B. Almeida.

Parts List:

• 3 M3 x 15mm screw
• 3 M3 nut
• 3 M3 x 10mm screw
• 1 M3 x 20mm screw
• 8 M4 nut
• 2 M4 nyloc nut
• 2 M4 x 12mm hex-head screw
• 1 M4 x 16mm hex-head screw
• 4 M4 x 20mm screw
• 1 M4 x 30mm screw
• 2 M4 x 12mm countersunk-head screw
• 1 compression spring
• 1 604 bearing
