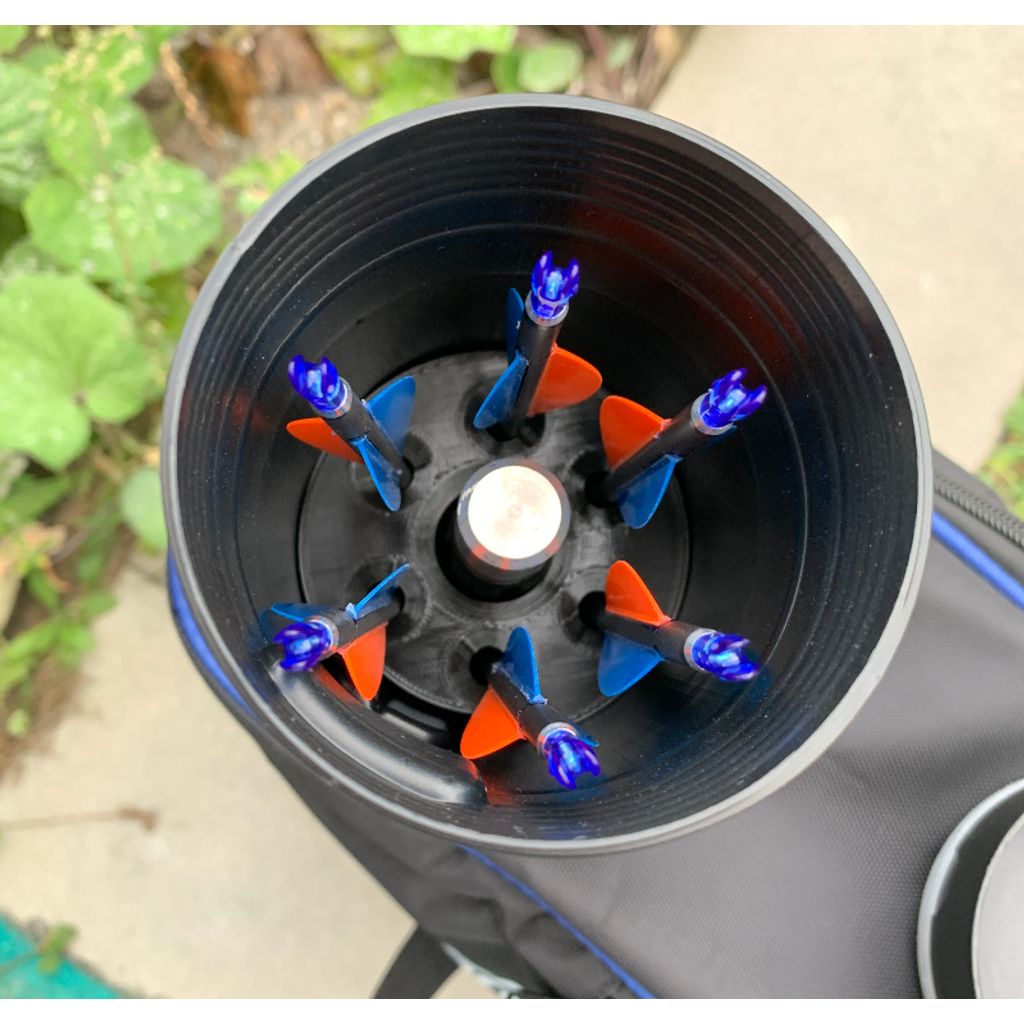

An arrow separator for the Avalon Classic archery backpack storage tube. Using the tube as-is, the vanes on arrows can become easily damaged, especially if you also put the long stabilizer bar in.

This separator has space for 6 arrows and a 25mm stabilizer bar.

The separator includes 3 holes for screwing it in the tube. I found that the easiest way to line up the holes in the outside for drilling is to put a rubber band around the outside, line it up straight visually and then mark the holes. The holes are 90° apart, so for two of the holes, you can use the knit lines in the tube to align.

The holes are 2,5mm. I found that tapping was not necessary using M3 machine screws.

Prusa

I3 MK3S

Doesn't Matter

Doesn't Matter

0.2mm

15%
