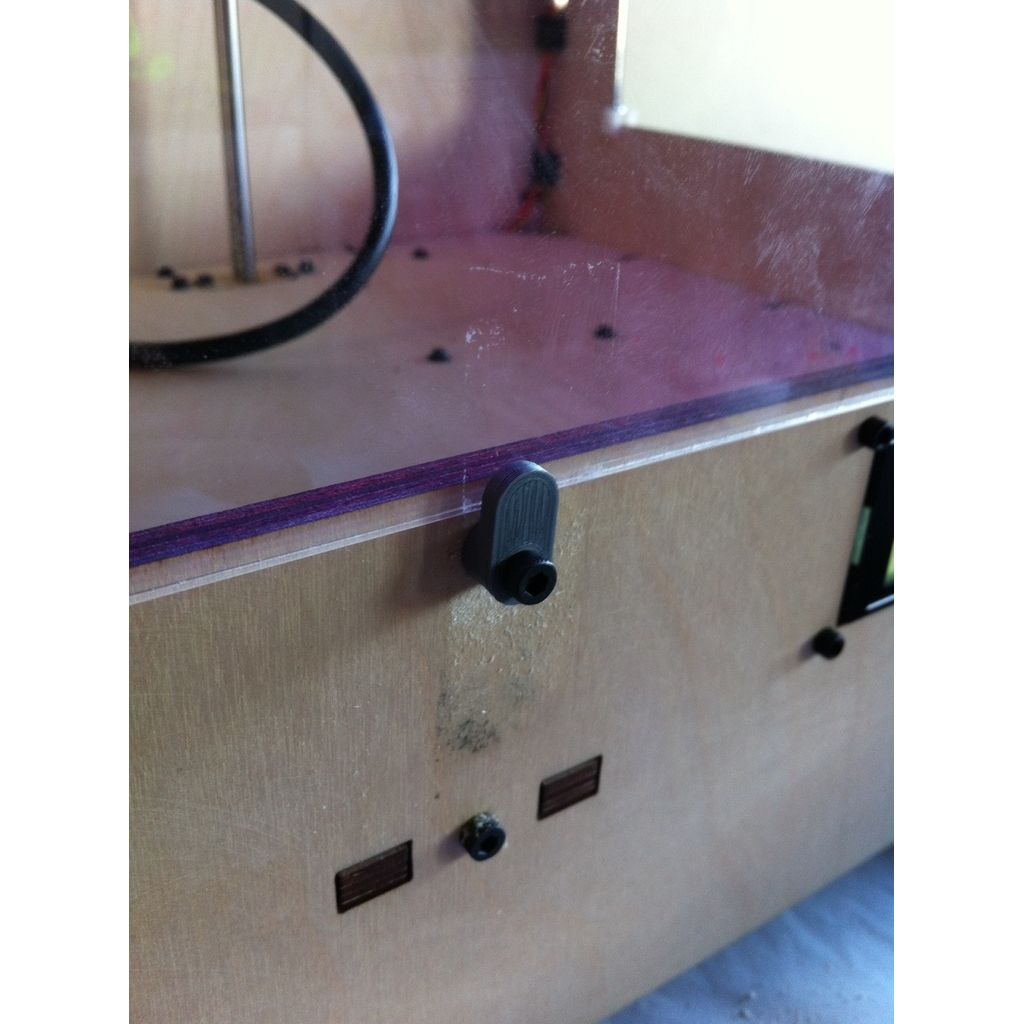

This little latch helps keep the front panel of your Replicator hood securely latched. Much quieter and reduces drafts.
Print it. Position it against the front of the Replicator with the front panel of the hood in place, and mark where it should go. Drill a 3mm (or 1/8 inch) hole. Put a 16mm M3 screw through the latch, and hold it in place with an M3 nut.
Feel free to edit the OpenSCAD file if you have used thicker plastic - current STL is for 1/8" plastic.
