Large Hook for Core One/+

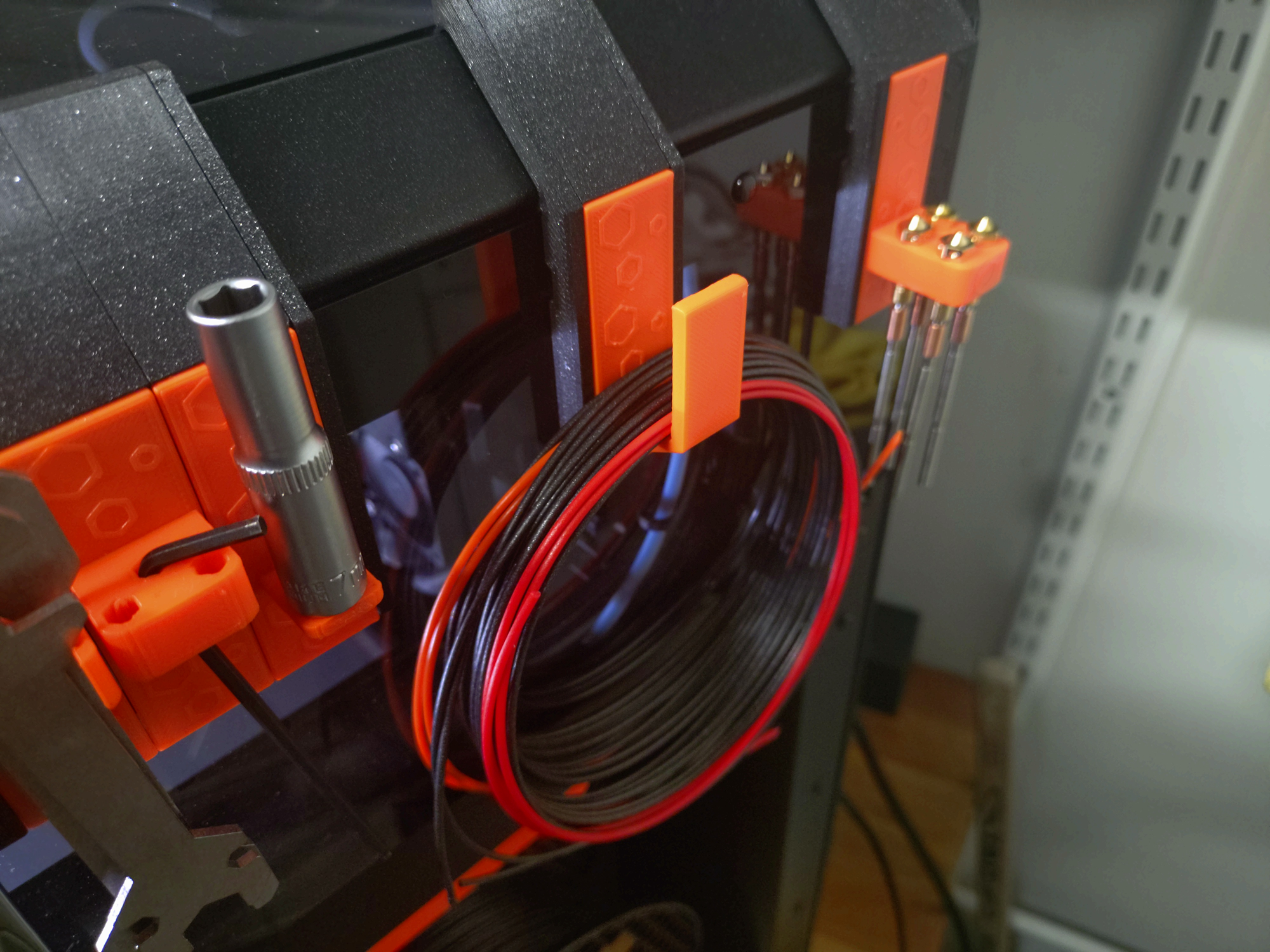

The Large Hook for Core One/+ provides a versatile and efficient way to hang various items directly on your printer. Designed to complement the Core One/+, this hook turns unused frame space into a practical storage spot for filament, tools, and maintenance accessories.

The system is based on a base module that naturally stays in position on the printer frame through its geometry. If desired, the base can be optionally locked in place using screws or magnets, but this is not required.

Module Dimensions

• Base module and tool holders: 20 mm wide

• Magnet slot / lock plate size: 6x2 mm

• More tool holders compatible with the same base part:

  • https://www.printables.com/model/1570028-modular-tool-holder-system-for-prusa-core-one


Instructions

• Print the base part

  • Filename: Base_part_20mm_v2 (left in the picture)

  • Or alternative version: Base_part_20mm_with_mounting_holes_v2 (right in the picture)

• Print the tool holder

  • Filename: Large_Hook_Tool_holder_v1

• Optional - Choose correct side trims

  • Filenames: Base_Left_End_v2 and Base_Right_End_v2

  • Or alternative version: Base_Left_End_exteded_top_v2 and Base_Right_End_exteded_top_v2

• Optional - add screw covers (used with alternative base)

  • Filename: Screw_Cover_v1

• Optional – add locking components:

  • If needed, install magnets (Prusa magnets 10×6×2 mm or 20×6×2 mm) or print a lock plate.

  • Filename:  Base_Locking_Plate_v1

Updates & Changelog

• Nothing yet
