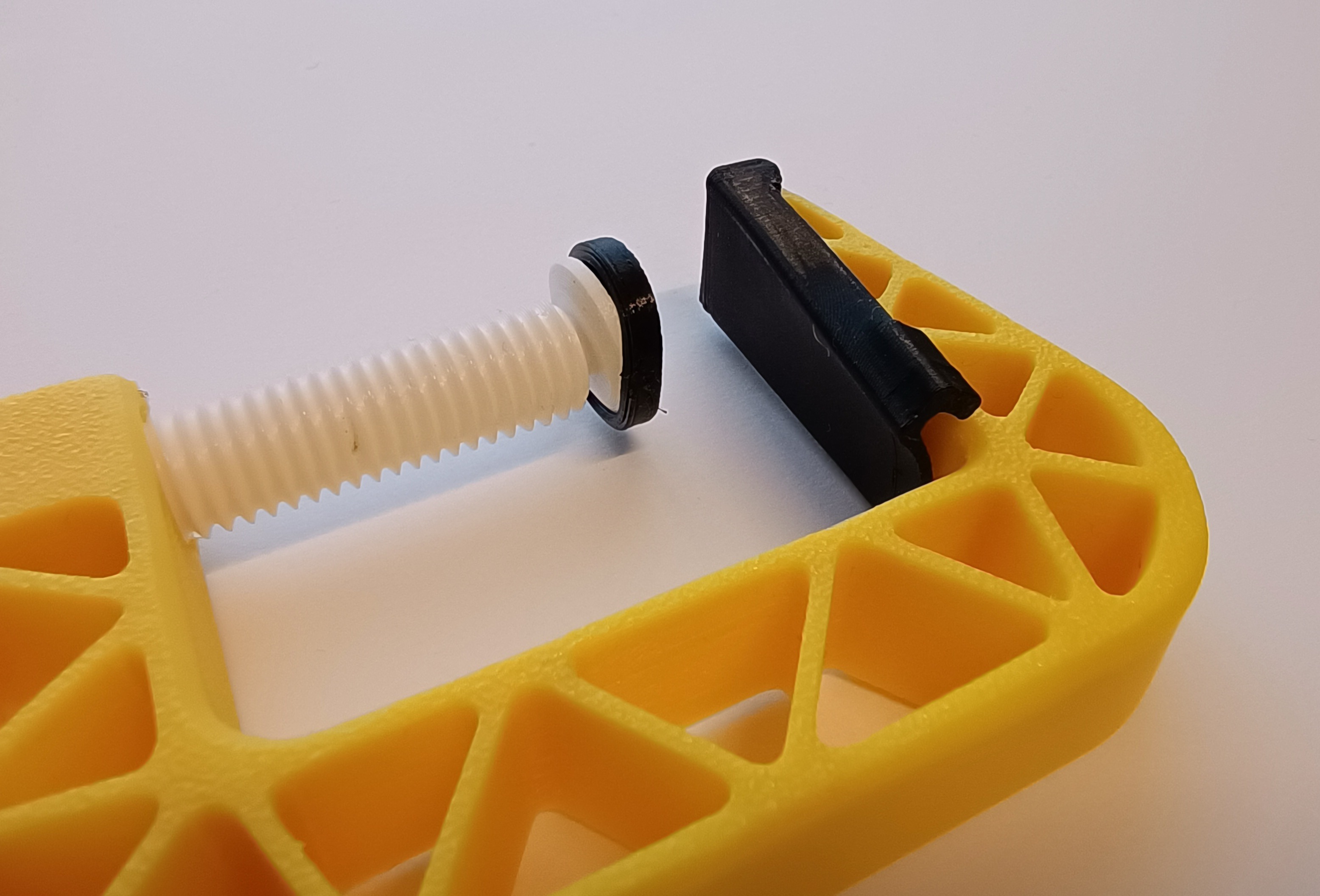

Lightweight C-clamps designed for lower load applications, provided in two sizes: 45 mm and 65 mm. Clamping depth – 35 mm. The weight of the 65 mm clamp is 23 g, and the weight of the 45 mm clamp is 21 g. The clamps use a standard M10 thread. They feature a swivel head for even pressure distribution and can be fitted with snap-on caps; the caps shown in the images are printed from TPU.

For smooth operation of the threads and the spherical surface of the swivel head, a layer height of up to 0.12 mm is recommended. If the thread fit is tight, it can be improved by repeatedly threading in a standard steel bolt or by using a thread tap.

The model shown is printed in PETG, snap‑on caps in TPU.

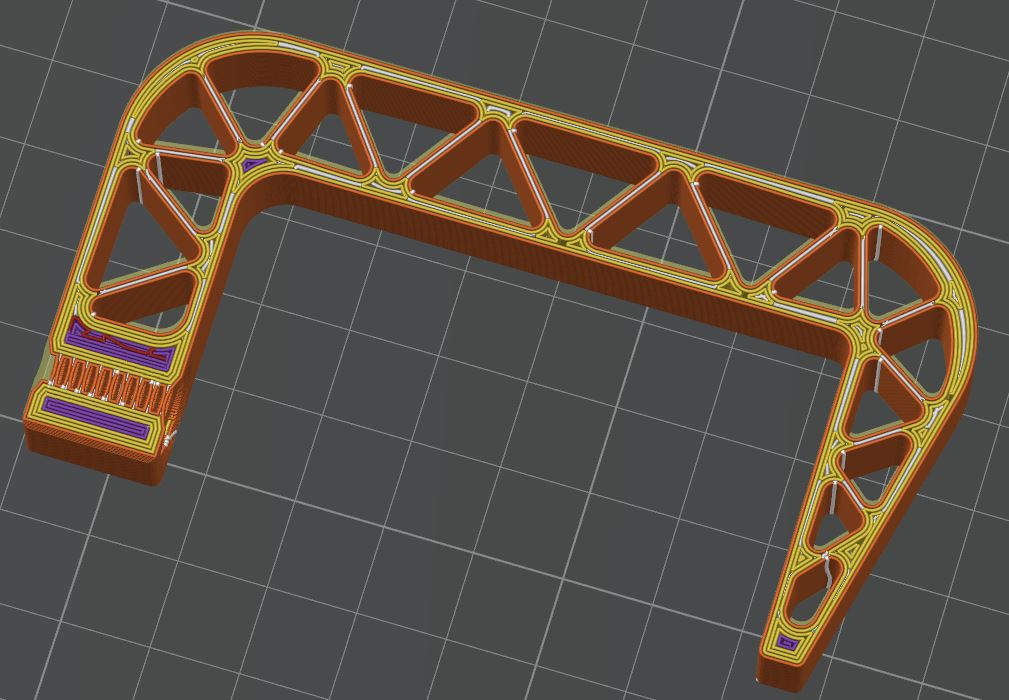

Clamp body: 0.10 mm layer height, 4 wall loops

Threaded screw: 0.12 mm layer height, srew 80mm 3 wall loops
Swivel head: 0.08 mm layer height
Snap‑on caps: 0.20 mm layer height
