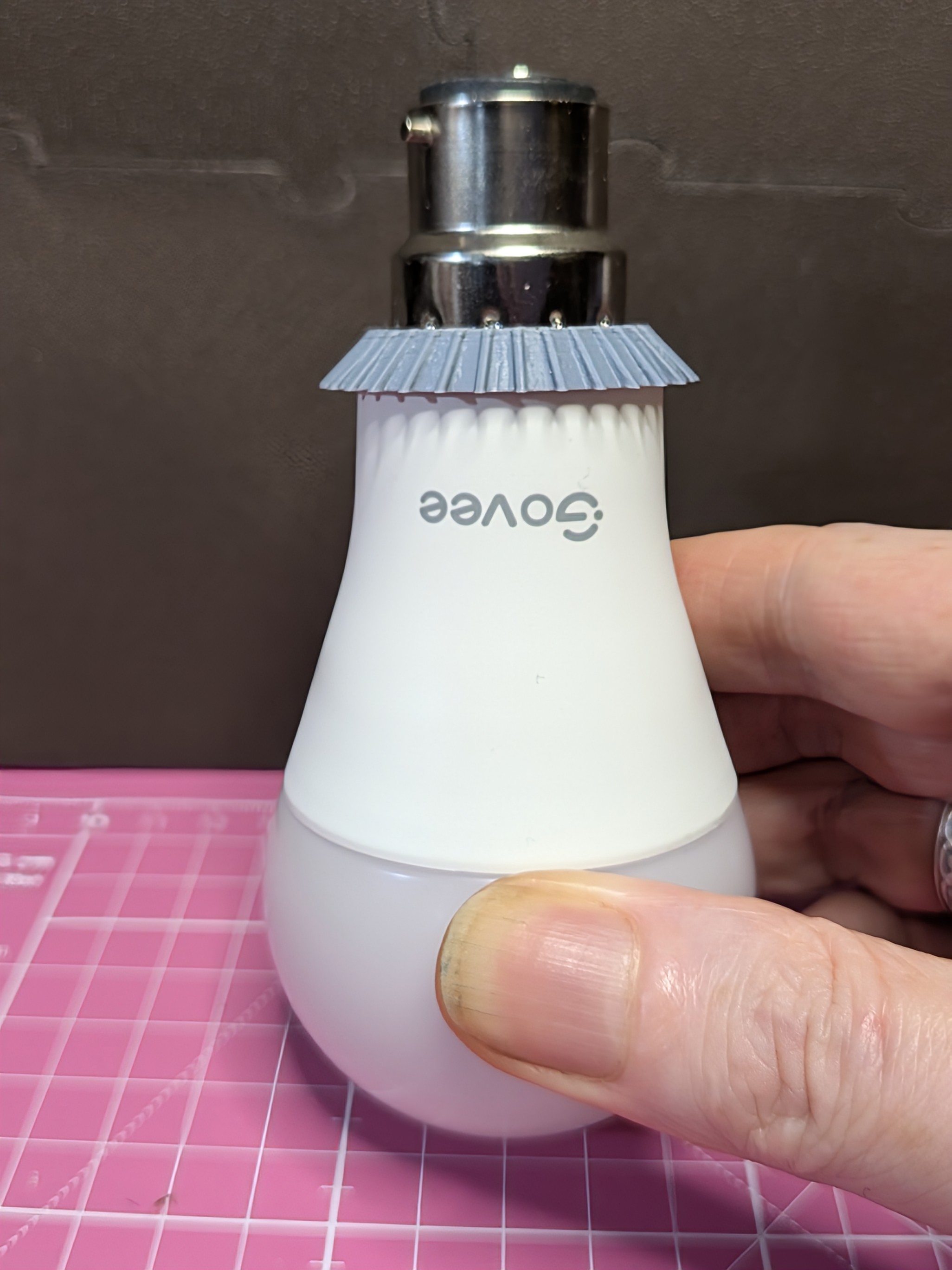

As there are many varieties of fitting for ceiling lamps, this is designed to sit on the bulb itself with a small High-Temp Heat Separator to protect the PLA.

IMPORTANT: Only Use LED Light Bulbs As Shown - do Not use Incandescent bulbs - you don't want a pile of steaming burned plastic on your floor!

Print the shade at 0.2mm with 3 walls/top/bottom and 10% 2D Infill. No support. Print the Top and the Main parts in a light PLA/PLA+. Also print a Heat Separator, preferrably in a higher temperature filament such as PETG.

The lampshade uses gravity with each section slotting into the one above. To assemble, put the bulb into the Heat Separator, add the Top, then the Bottom and lift - adjusting the parts until they sit nicely.

If you like this model, then please:

EdinBearDragon
