This is an adapter to fit an airbrush that comes up cheaply from AliExpress with a marker that comes up as cheaply as it does. I'm going to make a system that can be easily painted for my brother who already has the equipment to paint, but can't.



The following parts are required to use this product.

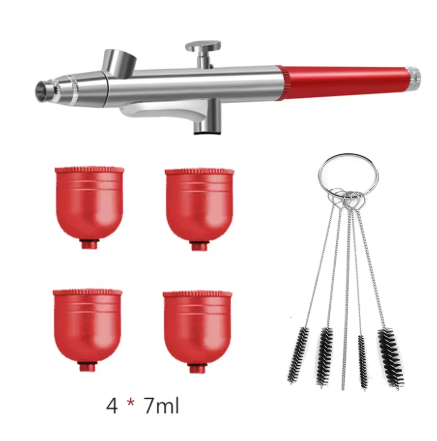

airbursh : https://ko.aliexpress.com/item/1005007518633733.html?spm=a2g0o.order_list.order_list_main.34.5e8a140fL8pAsv&gatewayAdapt=glo2kor


marker : Square or triangle marker

For airbrush fixation (required)
m3 nut x 1
m3 bolt(12mm) x 1

For marker fixation (optional)
m3 nut x 1
m3 bolt(12mm) x 1

How to assemble

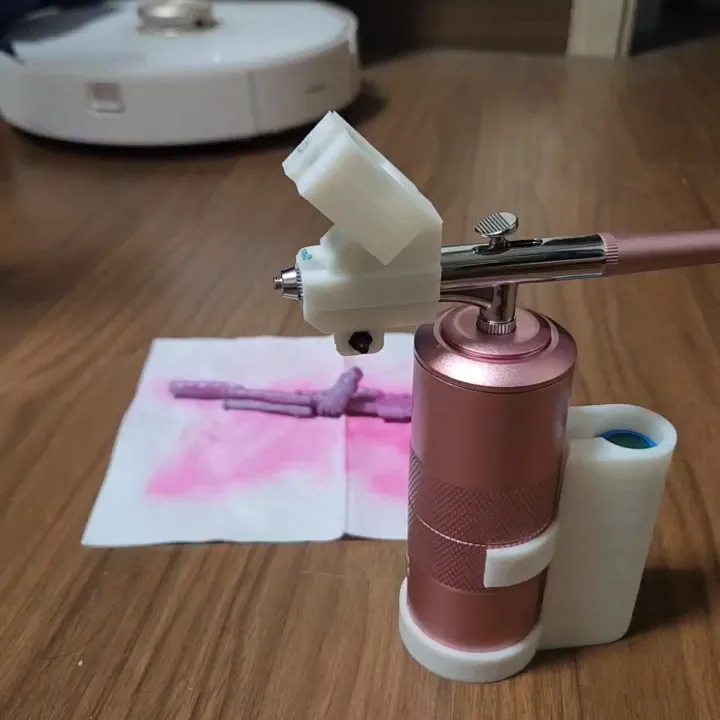

Slide the adapter into the airbrush and insert the m3 nut into the next groove. After that, tighten the m3 bolt.

Then push and install the marker. Place the needle on the nozzle and the touch of the airbrush in a very close position.



For Triangular markers

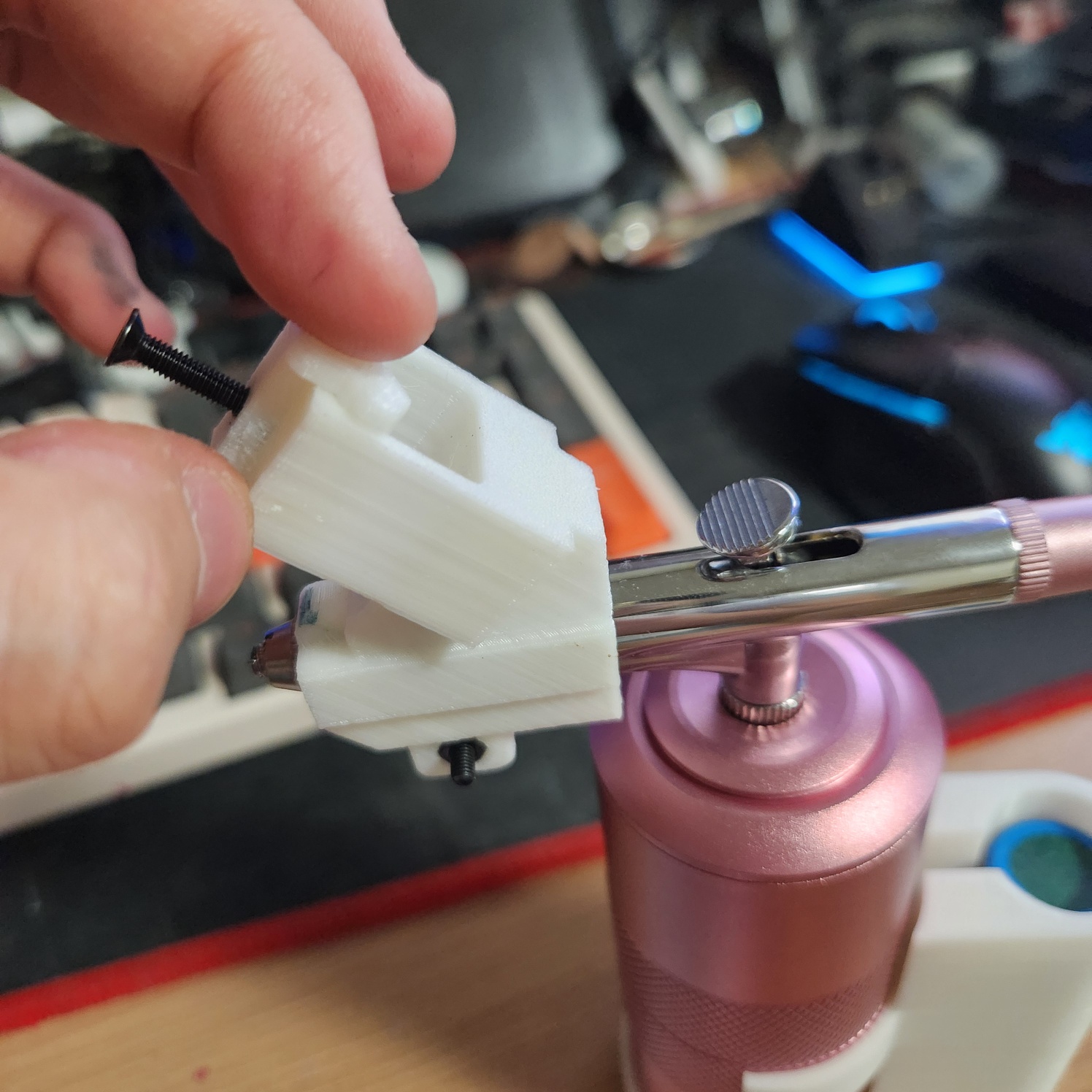

Insert the triangular marker holder and tighten the m3 bolt over the fixing part.

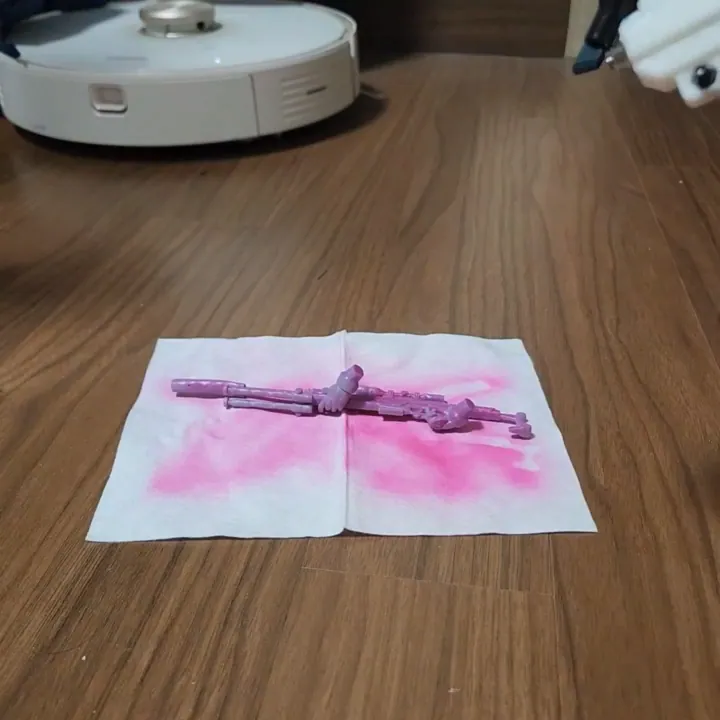

And sprinkle it!

As far as I've tested it, we can't guarantee compatibility for other products because it's been tested only for the markers I put up above.

Printing environment
Pirnt : Ender-3 V3 Se
Slicer : Orca Slicer V 2.1.1.
Layer height : 0.2mm
infill : cross hatch,25%
