Greetings from Newfoundland, Canada!

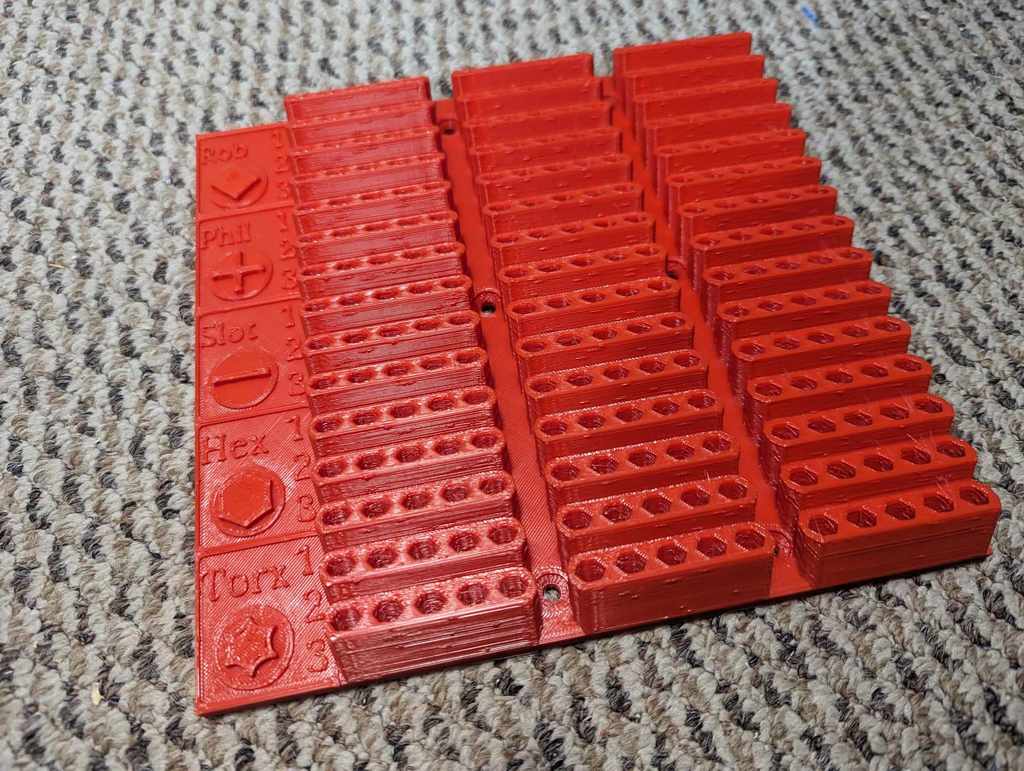

Meet my latest creation, a catch-all for your hex driver bits!

Fits on the 200mm by 200mm bed of my Anycubic Kobra Neo.

At the below settings, this sucker took 13 hours to print and consumed 305g of 1.75mm filament.

This little beasty holds 225 bits, and is designed as follows:

Rows are divided into 5 groups, each with 3 numbered categories. Those groups correspond to the 5 standard bit types: Robertson (Square), Phillips (4 point Star), Slot (Blade), Hex (Allan key), and Torx (6 point star). Each row contains 15 columns, sorted in 3 groups of 5 sockets. I made these for my shortest bits (1"), my medium length bits (about 2") and my longest ones (4" and 6").

Printed with:

0.32 mm
0.3 mm first layer
0.4 mm nozzle
50-70 mm/s first layers
200 mm/s walls

10 mm Mouse Ears
No supports
No skirts
No rafters
No ironing

4 walls
4 top layers
2 bottom layers
15% GRID infill

Like, follow, share, and collect. Take, mix, remix, use, comment, whatever. Help me make this even better than it is!!

Anycubic

Kobra

No

No

Default

Lots
