总结

国民账户体系

* 芯片吸附器 - https://www.thingiverse.com/thing:4651936

首先，我祝贺大家新年快乐！嗯，我祝愿大家一切顺利！

就在新年前夕，我终于完成了最后的剪辑工作，收集并拍摄了相关素材，但把视频的剪辑工作和正式发布推迟到了新的一年。如今，这项工作终于在1月2日圆满完成了...

最后的修改内容如下：

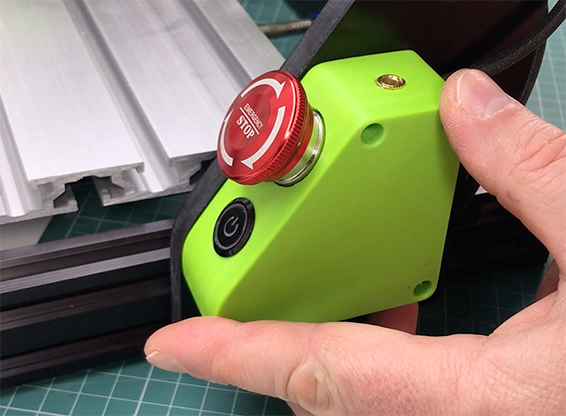

用于按钮控制和紧急停止的壳体组件。

还有一个用于连接Z-Probe的插座。对于电源按钮的LED灯，我添加了一个10kΩ的电阻，这样它就不会太亮，否则过强的亮度会造成干扰。此外，我还将LED灯设置为持续亮起，这样在移动机器时就不会忘记断开电源线了。

СNС3018

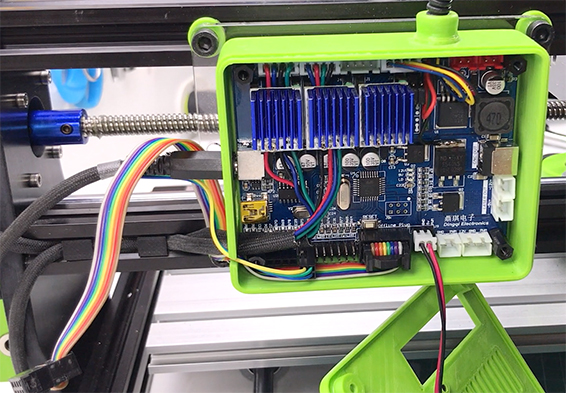

通过将显示屏电缆和电机电缆放置在型材槽中，缩短了它们的连接长度，并额外添加了几块电缆夹。

环形连接器易于重新组装，但这一过程需要小心拆卸，因为它们非常易损。如果有备用件的话会更好。这些连接器被称为8针JTAG IDC连接器。

СNС3018

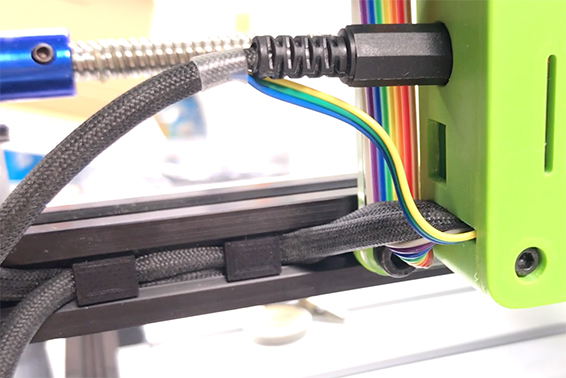

这些都是我做的电缆夹很久以来我一直想买一台3D打印机，但我已经打印了不少东西，所以这台打印机还是挺实用的。

СNС3018

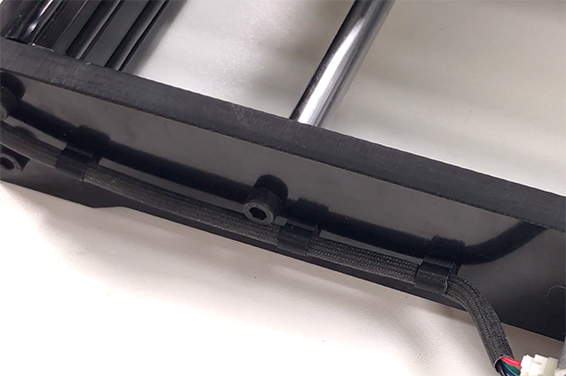

这些夹具是在最终组装的最后一刻才设计出来的。

СNС3018

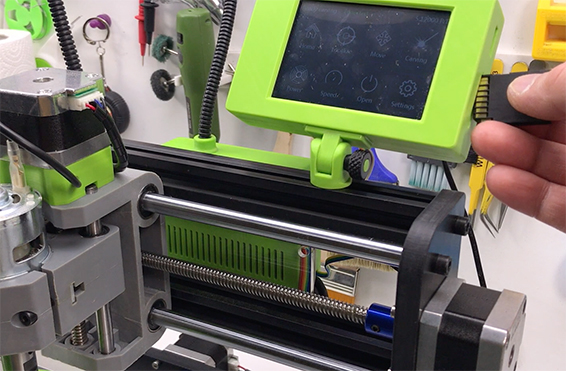

MKS TFT3.5的独立控制器。

我把完全相同的控制器和机身安装在了激光雕刻机上，这在之前的发布中大家已经见过了。现在有所不同的是，一个稍微不同的支架，它可以安装在铝型材上，让你可以选择一个方便的显示屏工作位置。

СNС3018

这种显示屏是一款独立控制器，可与几乎所有GRBL控制器配合使用。其功能是读取文件并传输G代码指令。您还可以添加带有必要G代码指令的自定义按钮。这完全取决于您的创造力……当然，您也可以更改启动画面和按钮样式。该显示屏的使用说明书已经很详细了。我只想补充一点：不要在Mac电脑上将固件写入SD卡，否则可能会出问题……比如图片可能会损坏……

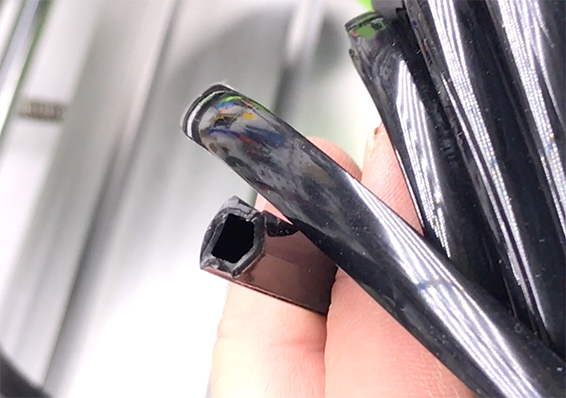

另外，还添加了一个密封件，用于覆盖型材的所有缝隙。

СNС3018

尽管我的机器配备了芯片吸尘器，但灰尘仍会进入型材槽，清理起来非常不方便。现在，多亏了密封装置，所有型材槽都被封闭起来了。

详情请观看视频：

СNС 3018 Part 5 Final Revisions
