XT30 2+2 Plug for SB2209 / SB2240

SharonWoodward

Mit KI Ähnliches finden

Keine Modellquelldateien

Veröffentlicht:2026-06-14 15:47:53

Beschreibung

Tags

Modellquelle

Rezensionen(0)

A purpose build XT30 2+2 plug designed for the 🥰 BTT SB2209 / SB2240 toolhead boards. Built with a minimal footprint to keep your cable routing clean and uncluttered.

Companion Model:
Use the Cable Bridge PLUS to form a sleek and ultra compact umblilical wiring solution for your Stealthburner with CW2: Cable Bridge PLUS for SB2209 / SB2240 Refined cable bridge for SB2209/SB2240 with PG7 gland, stepper cable cover and steel wire mount - sleek and compact.

Companion Model:

Use the Cable Bridge PLUS to form a sleek and ultra compact umblilical wiring solution for your Stealthburner with CW2:

Cable Bridge PLUS for SB2209 / SB2240

Refined cable bridge for SB2209/SB2240 with PG7 gland, stepper cable cover and steel wire mount - sleek and compact.

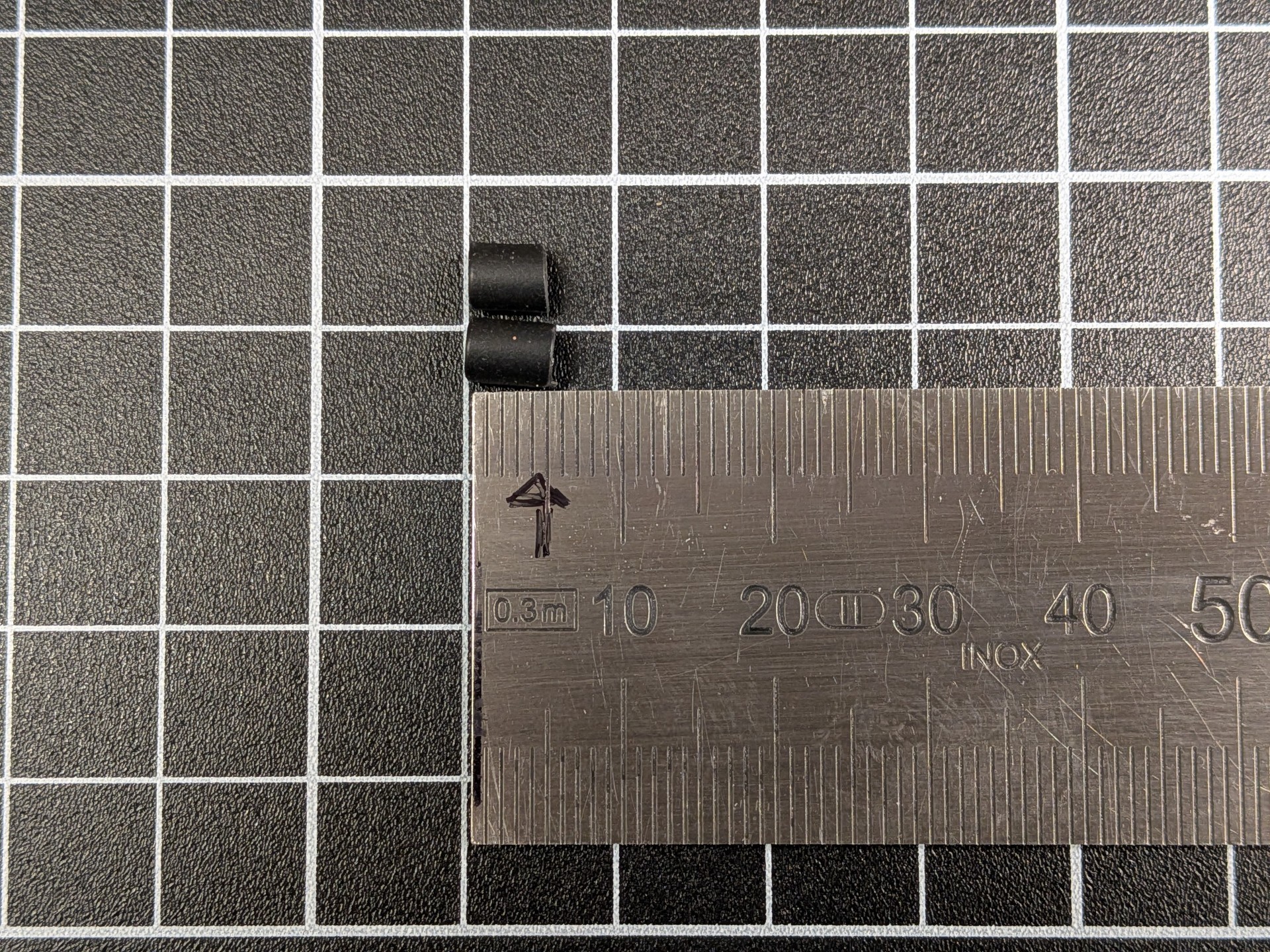

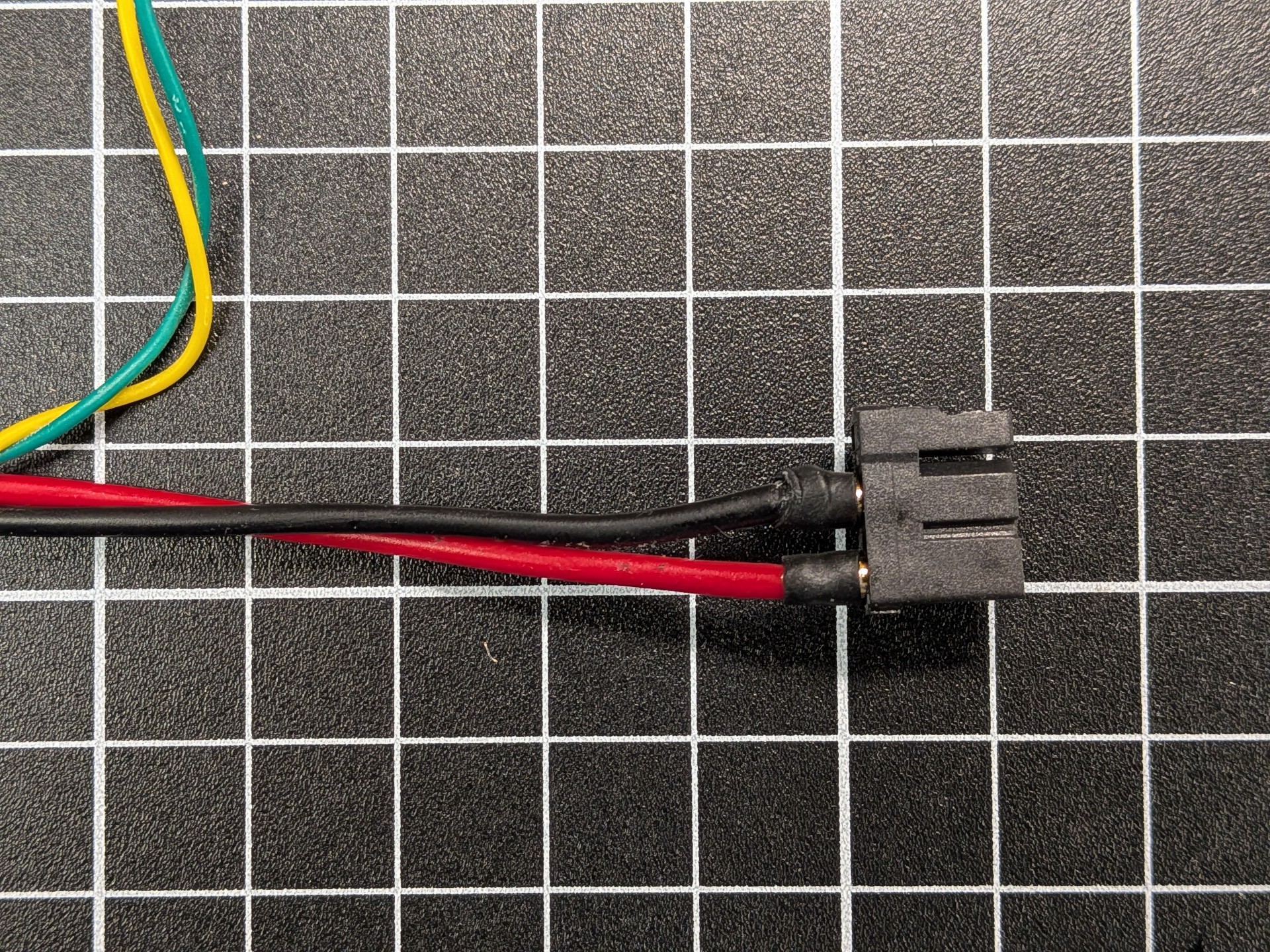

This plug intentionally has no built-in strain relief. Keeping the footprint minimal was a key priority as clean wiring is a challenge with the SB2209/SB2240. The umbilical cable is already secured by the PG7 cable gland and the cable mounting point on the bridge, so the wiring towards the plug won't move anyway. Just use heat shrink tube (with glue) over the solder joints of the XT30 2+2 connector.

Features:

Minimal footprint — designed to sit flush without adding bulk
Compatible with BTT SB2209 and BTT SB2240 toolhead boards

Pairs perfectly with the Cable Bridge PLUS for a complete umbilical cable management solution

Assembly

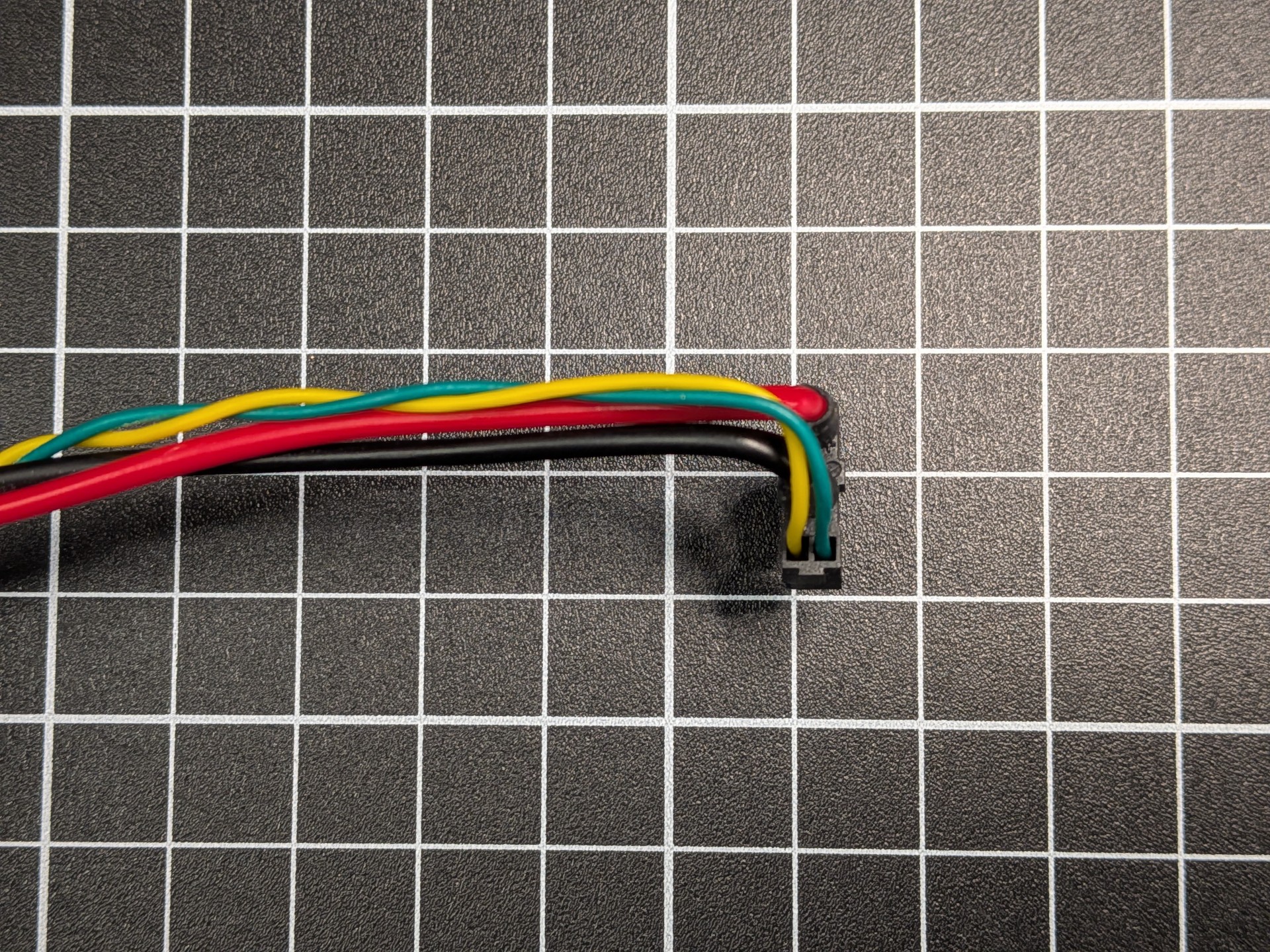

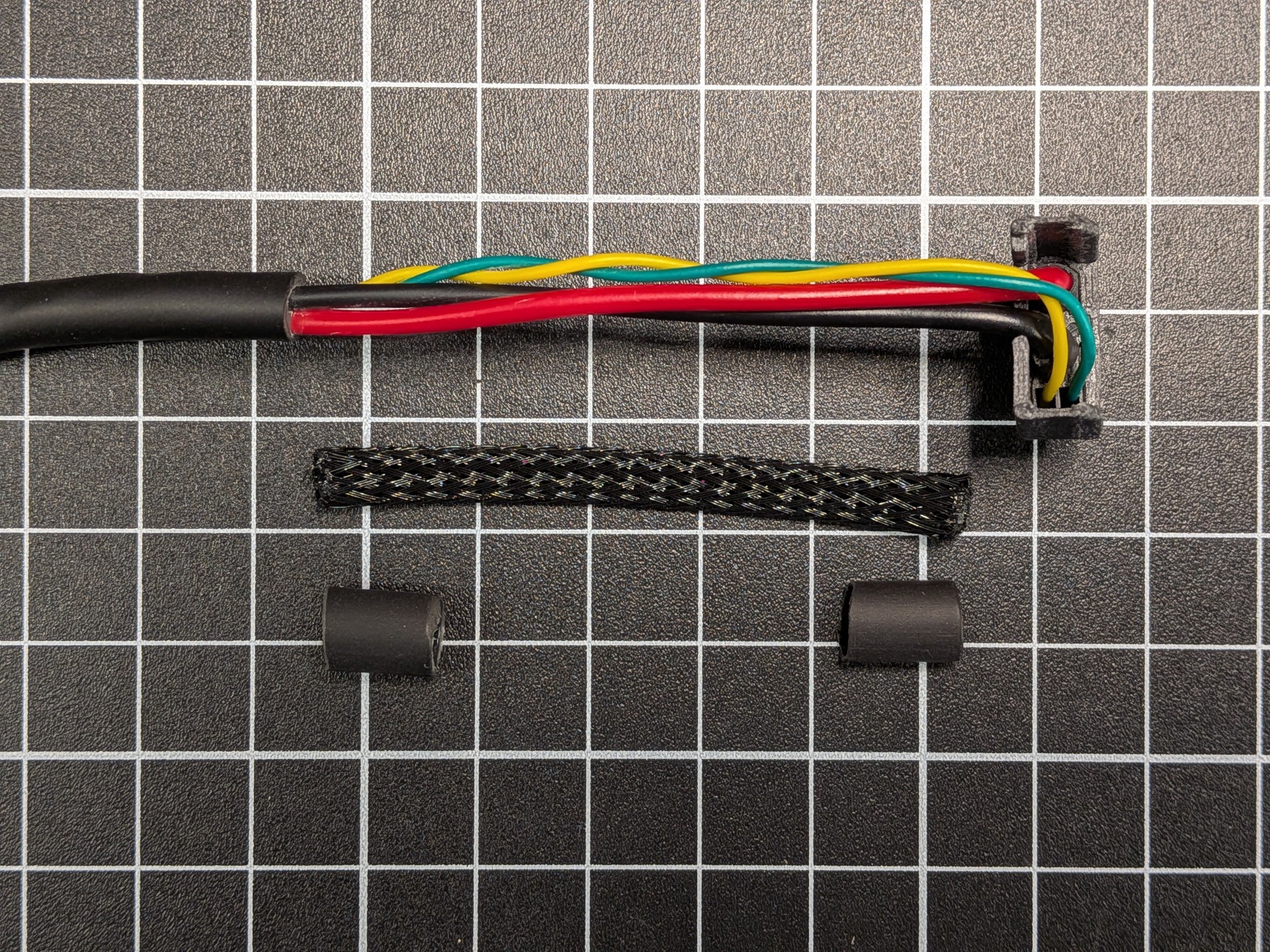

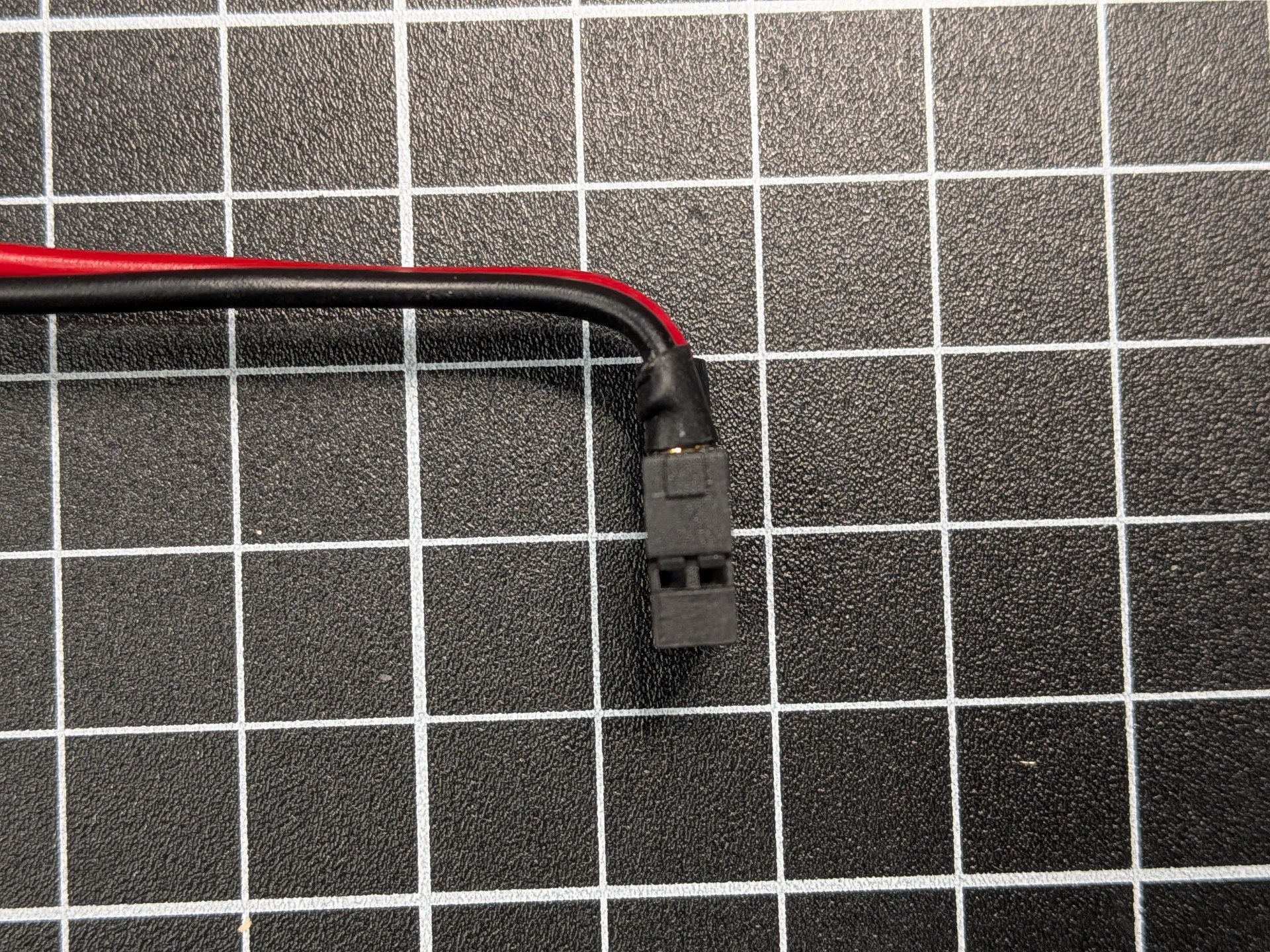

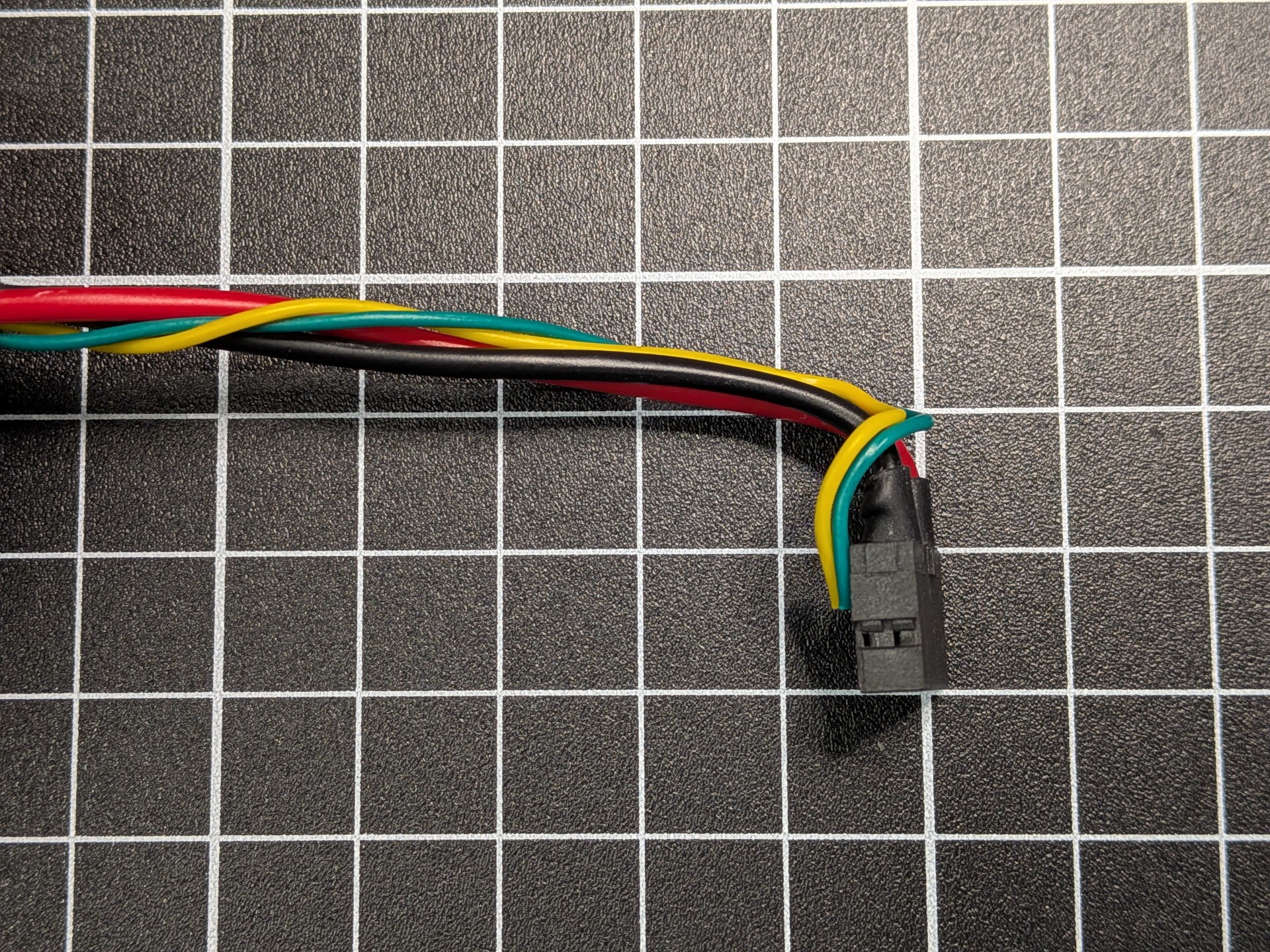

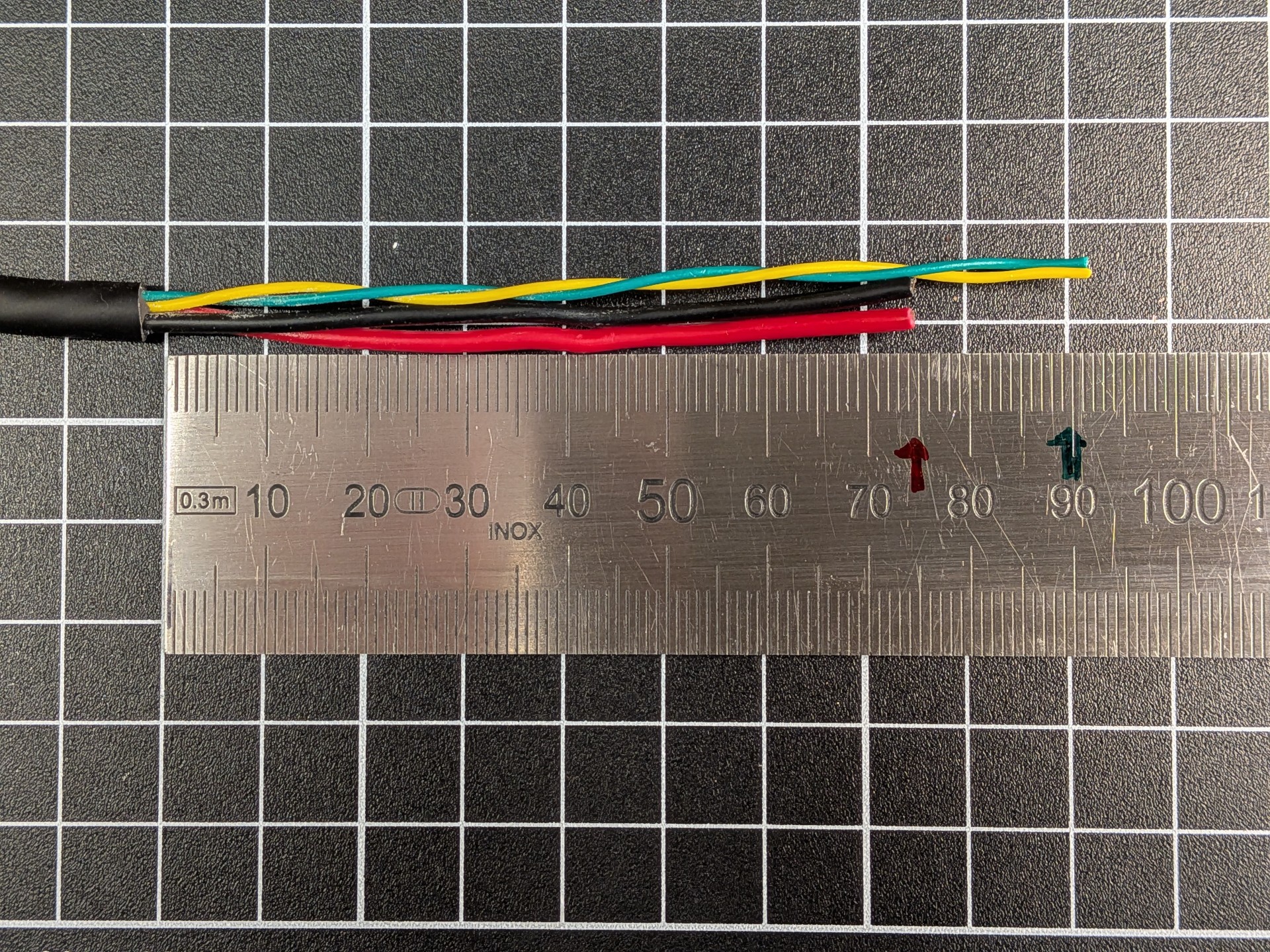

Make sure your data wires are ~15mm longer than the power wires. The recommended length of the wires when using the Cable Bridge PLUS is 75 mm for data and 90 mm for power.

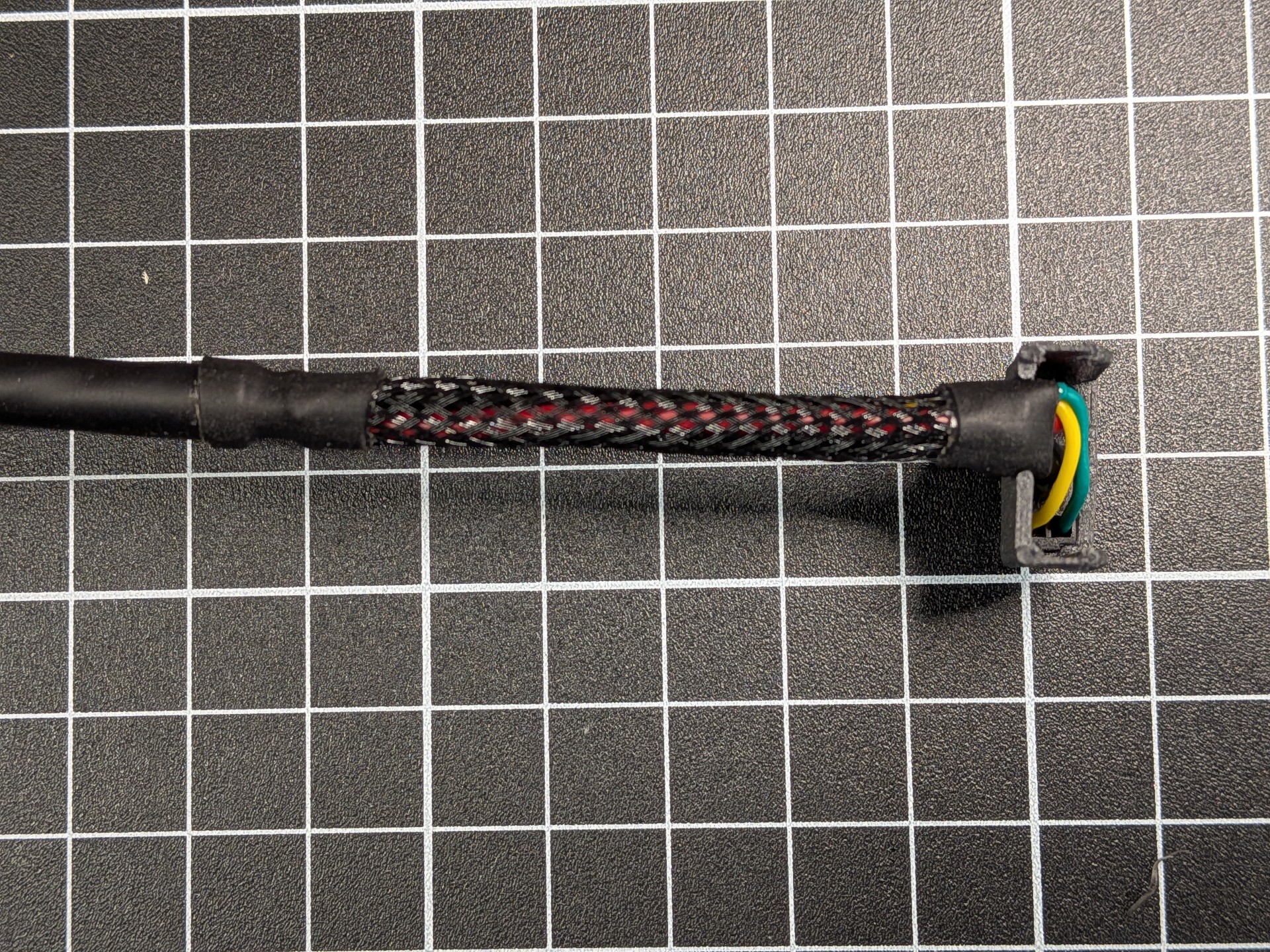

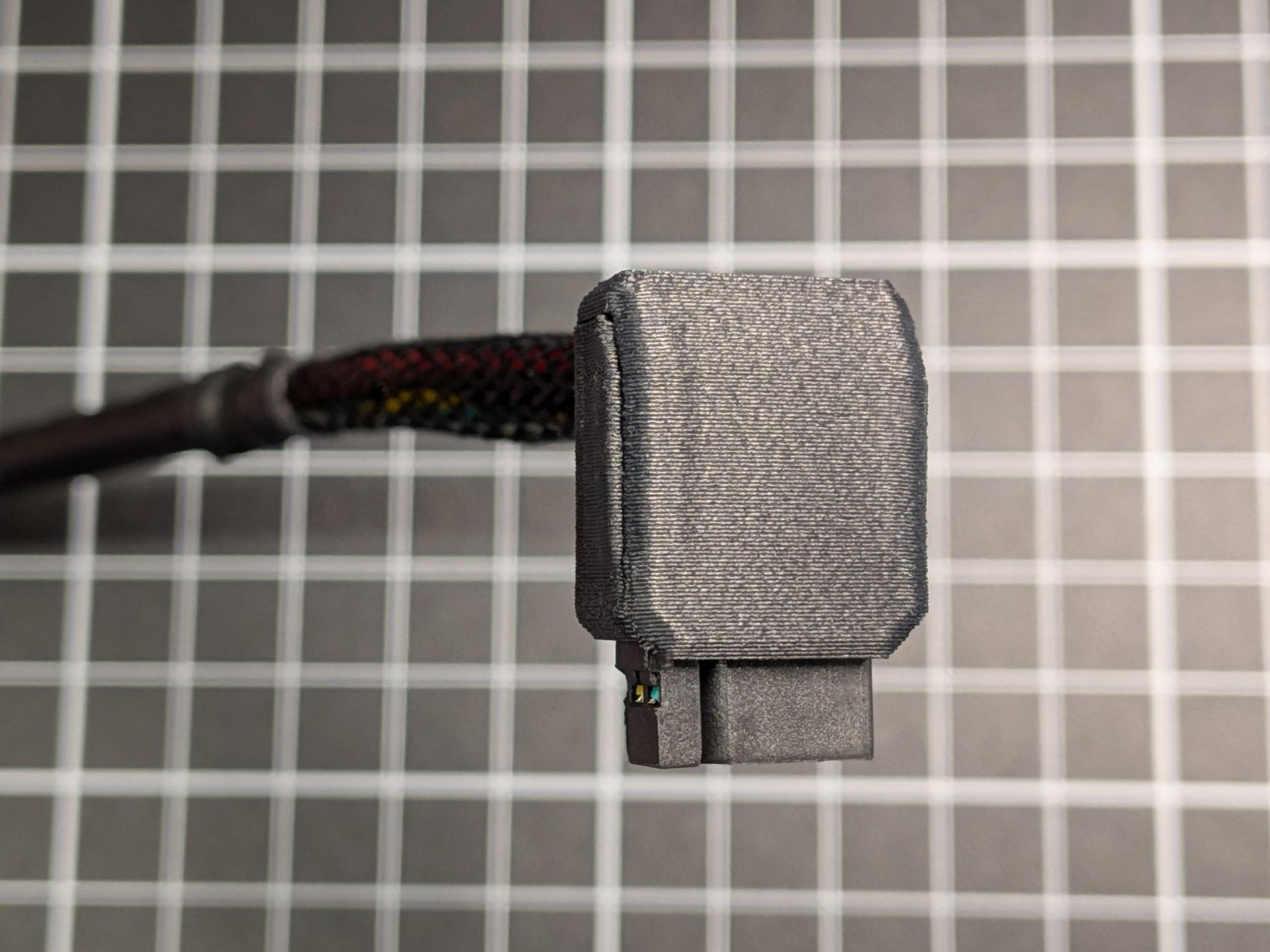

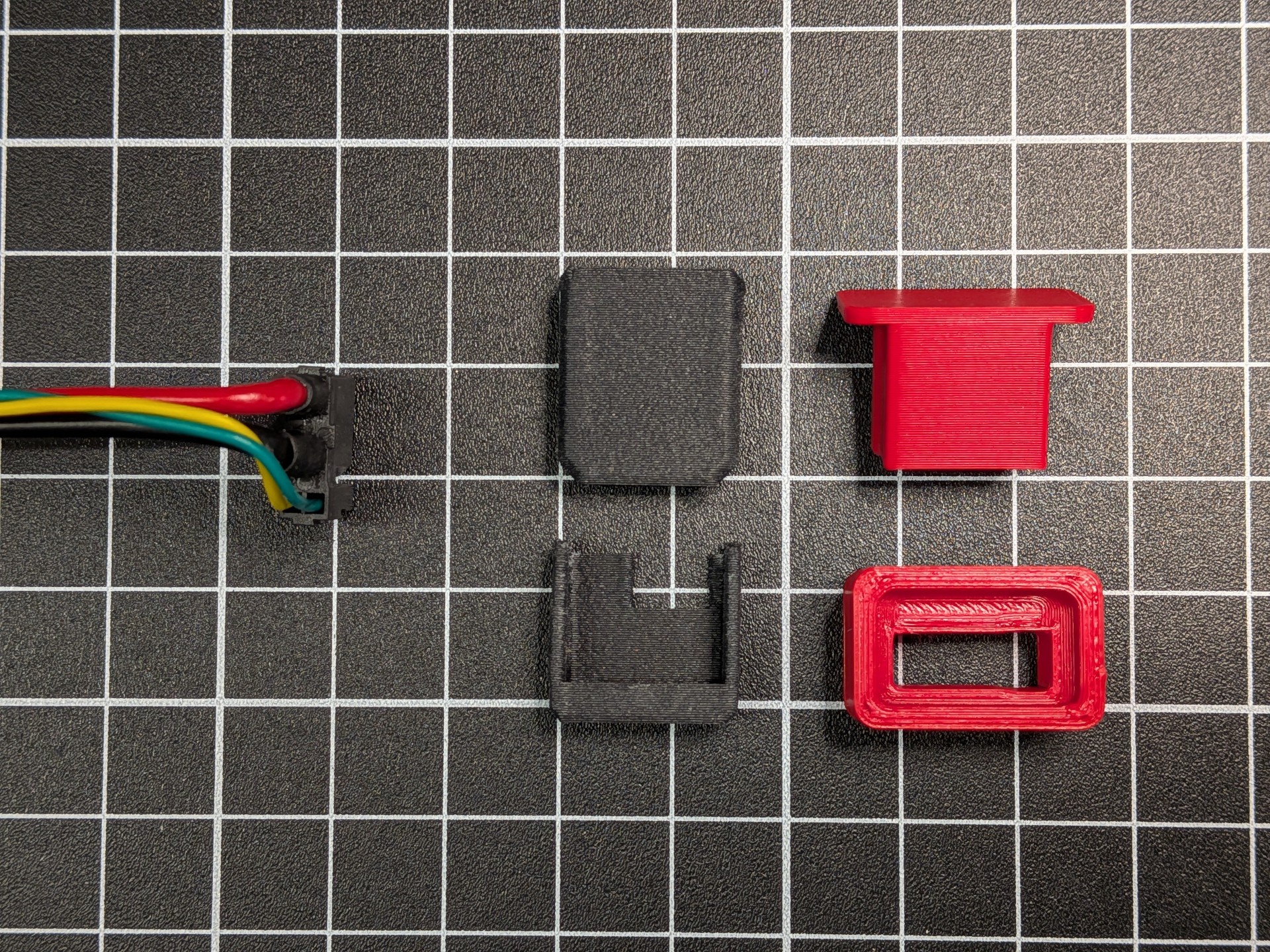

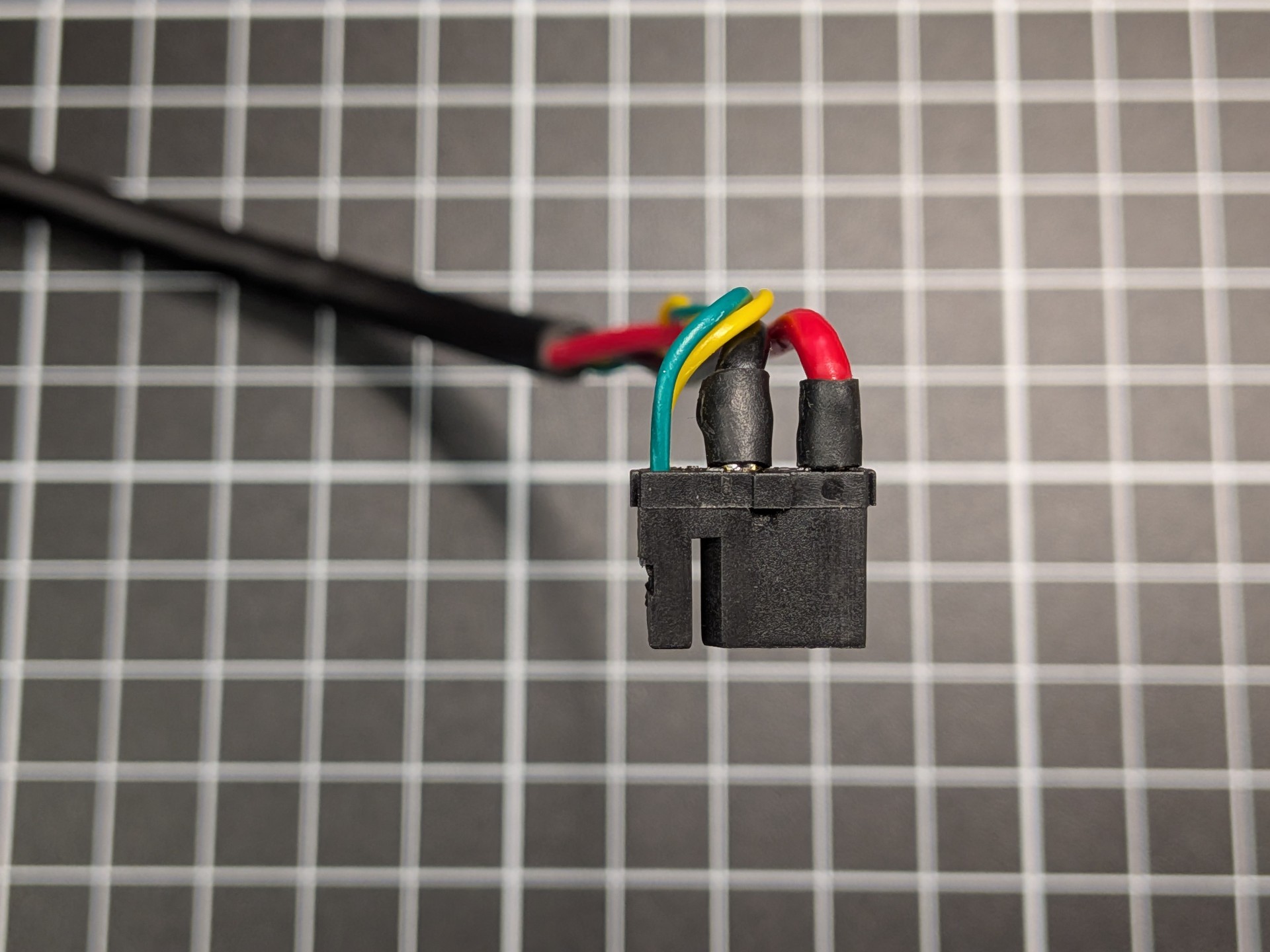

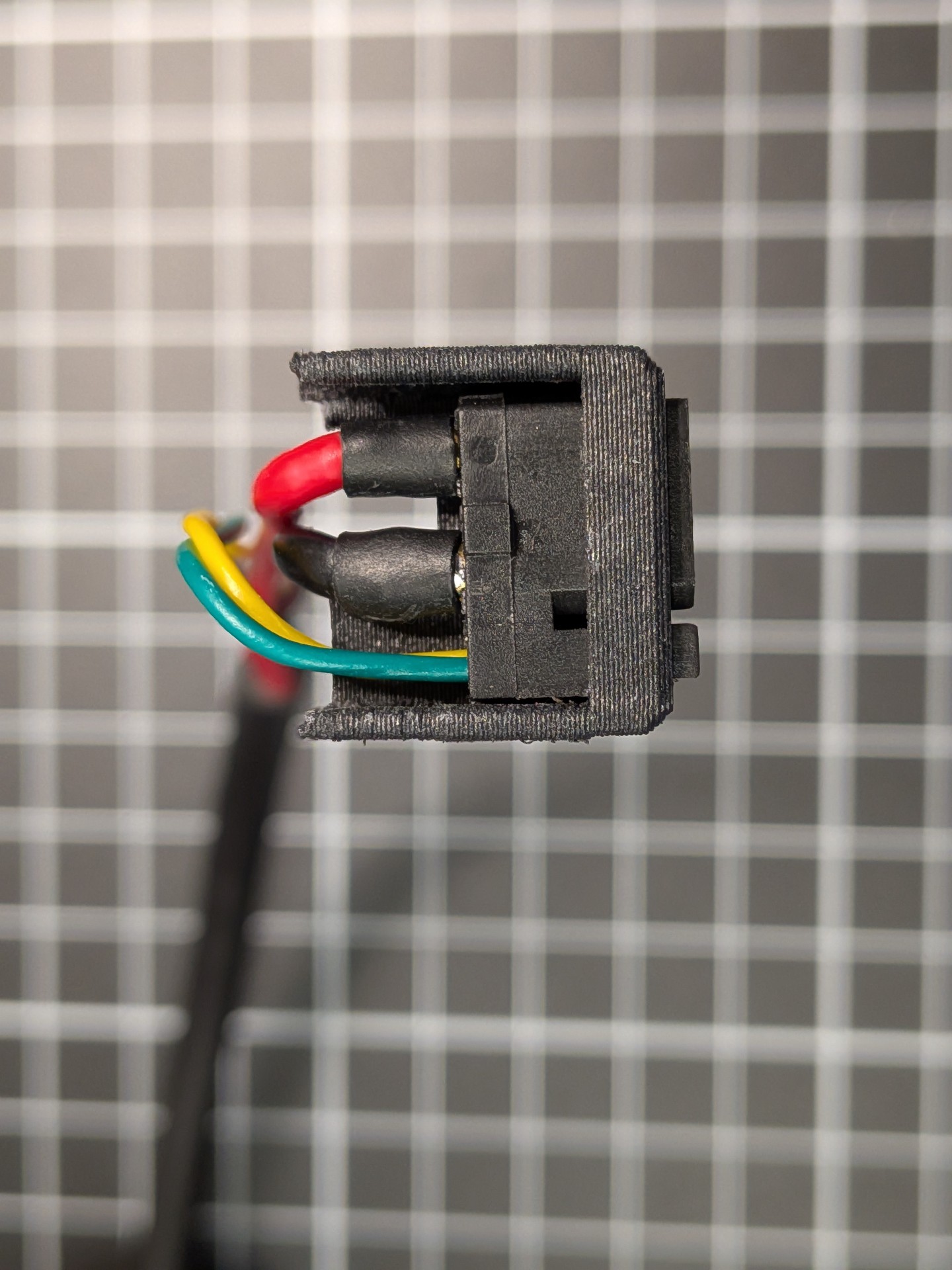

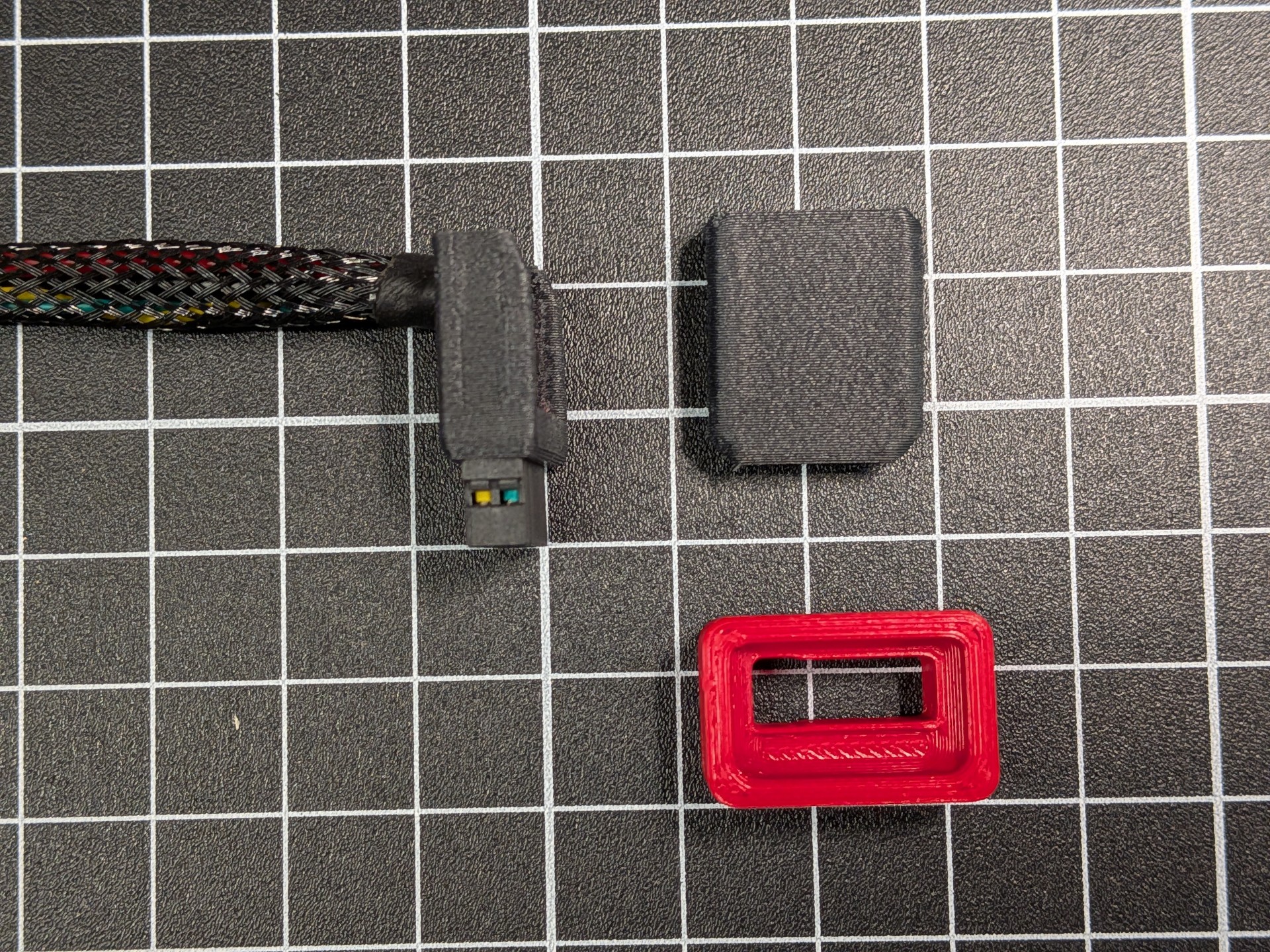

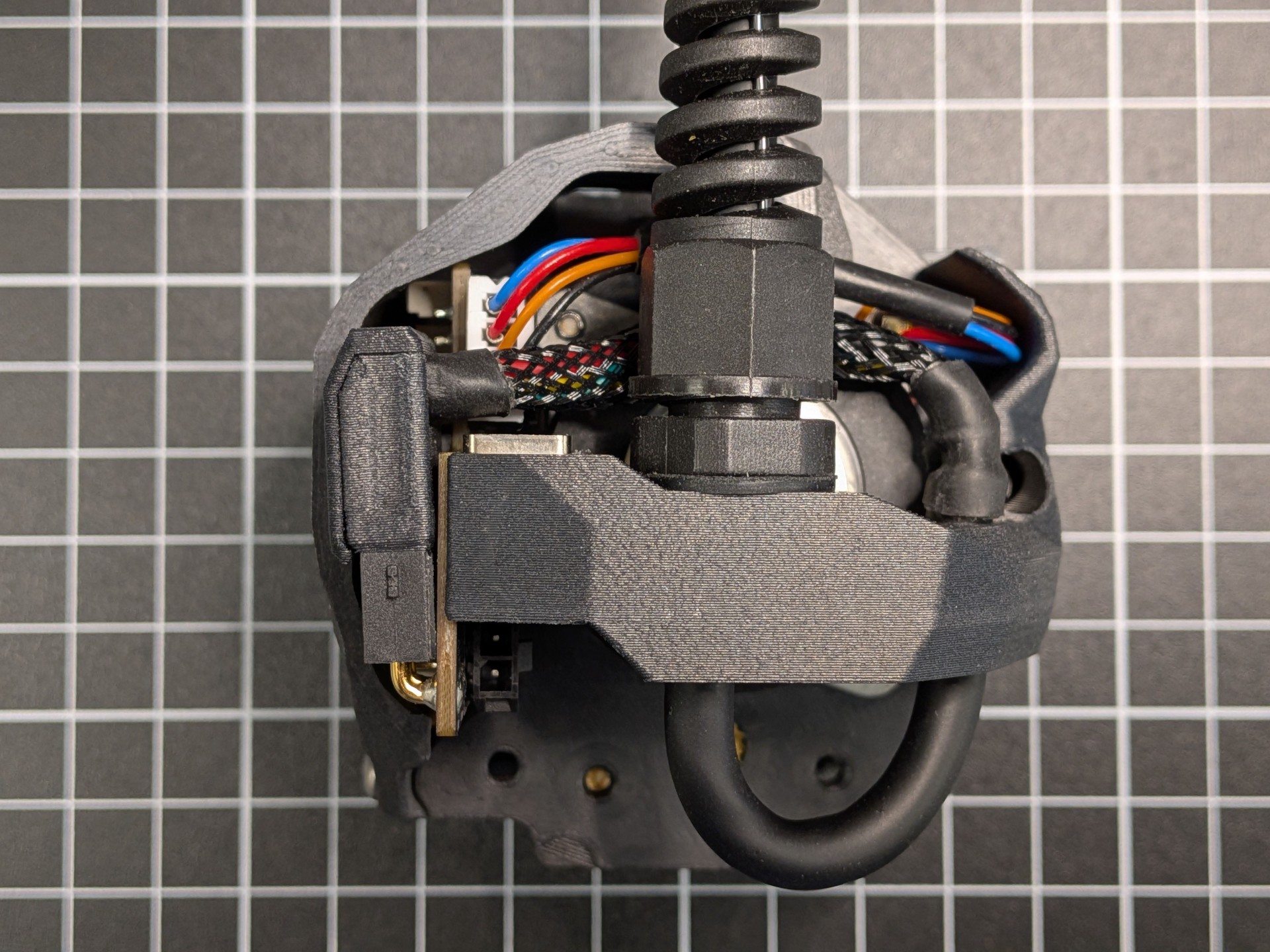

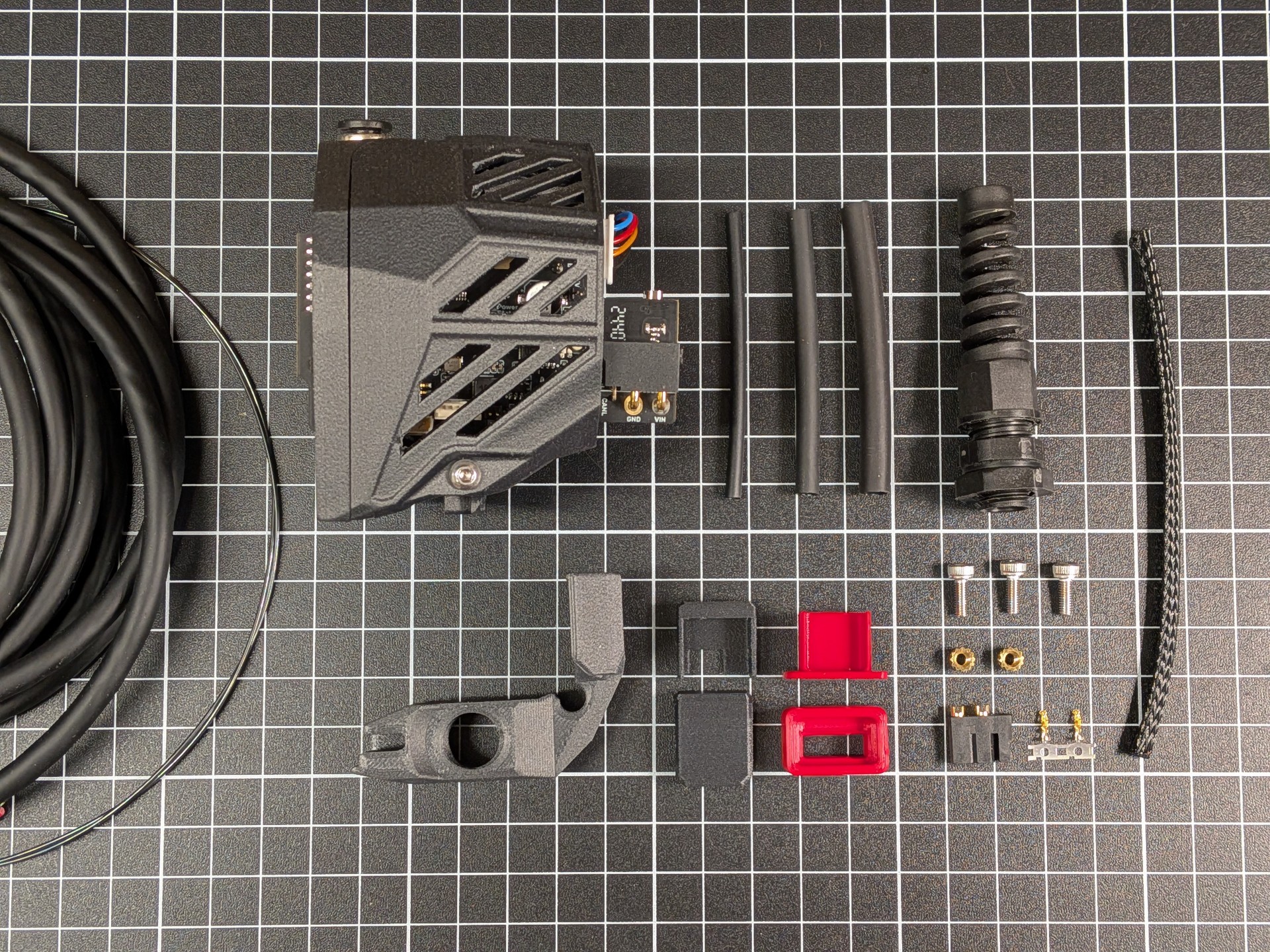

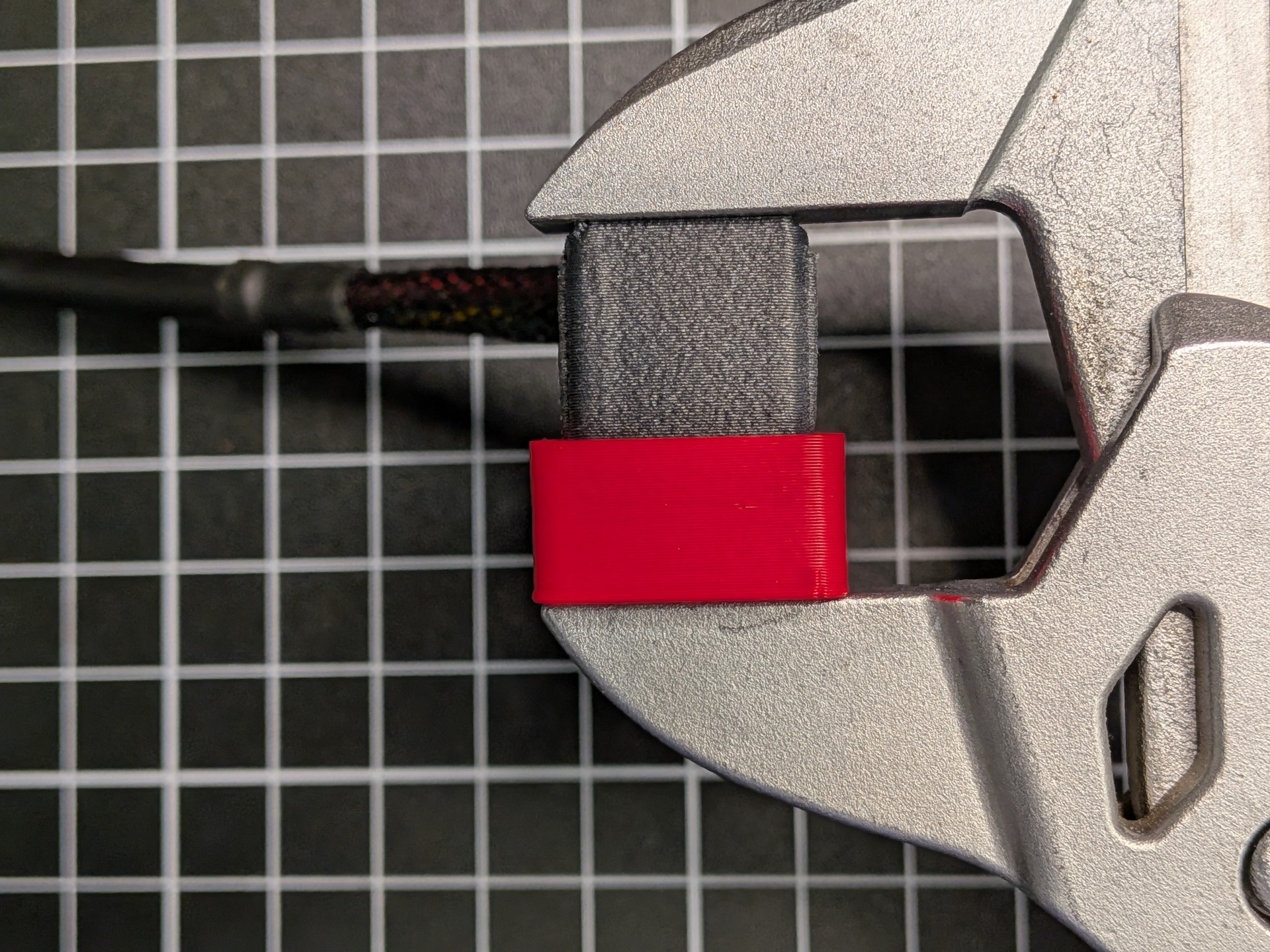

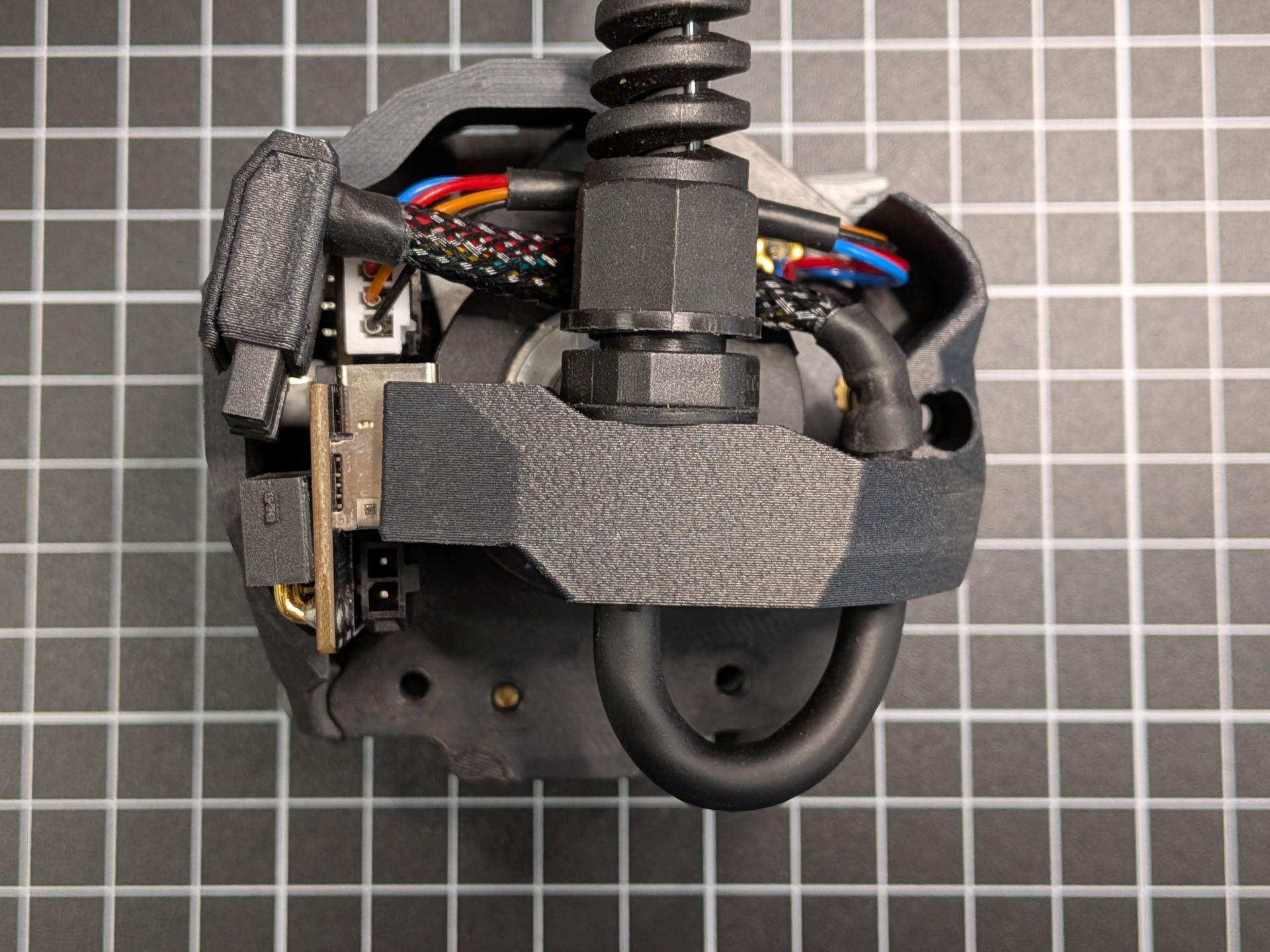

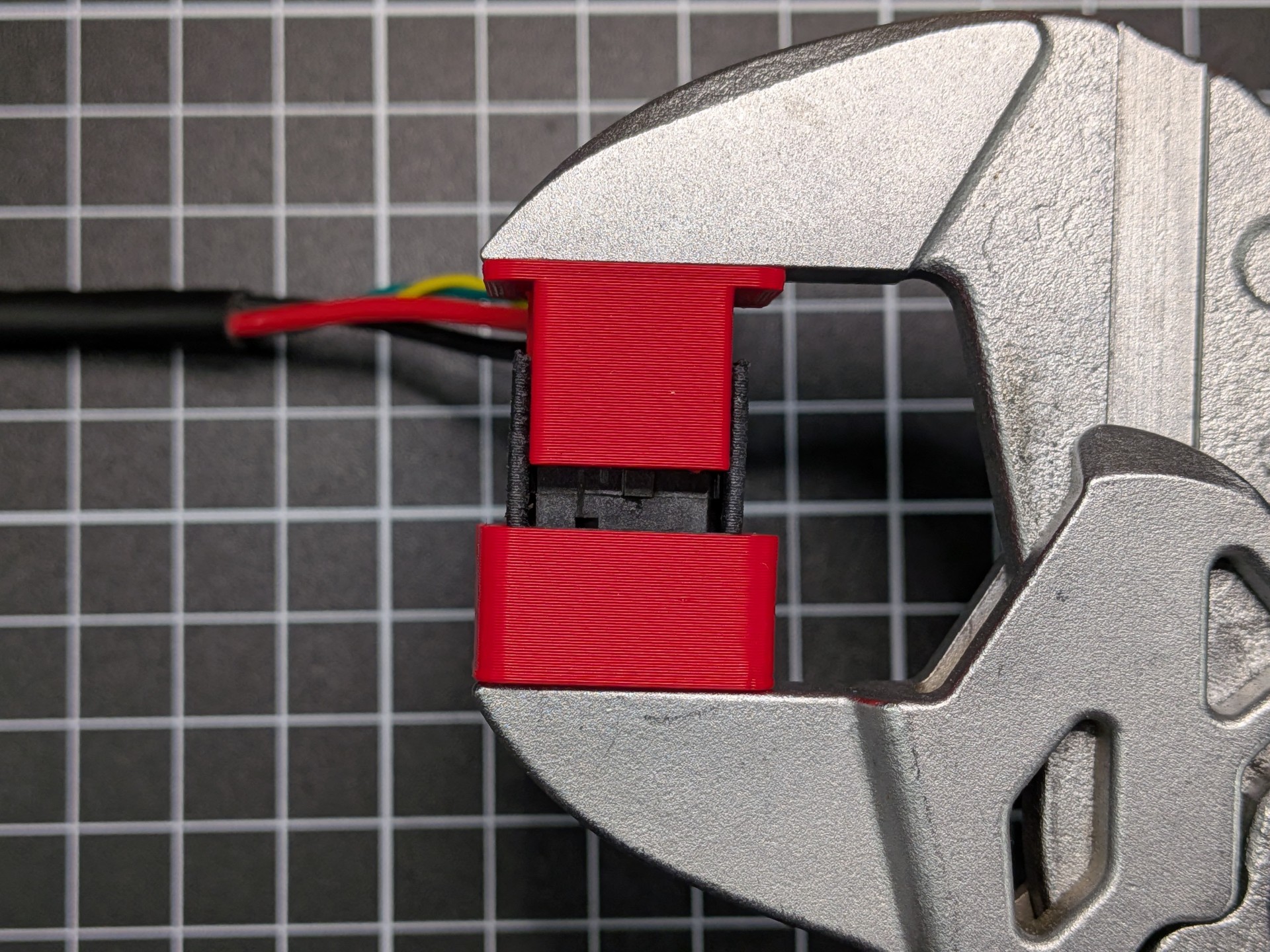

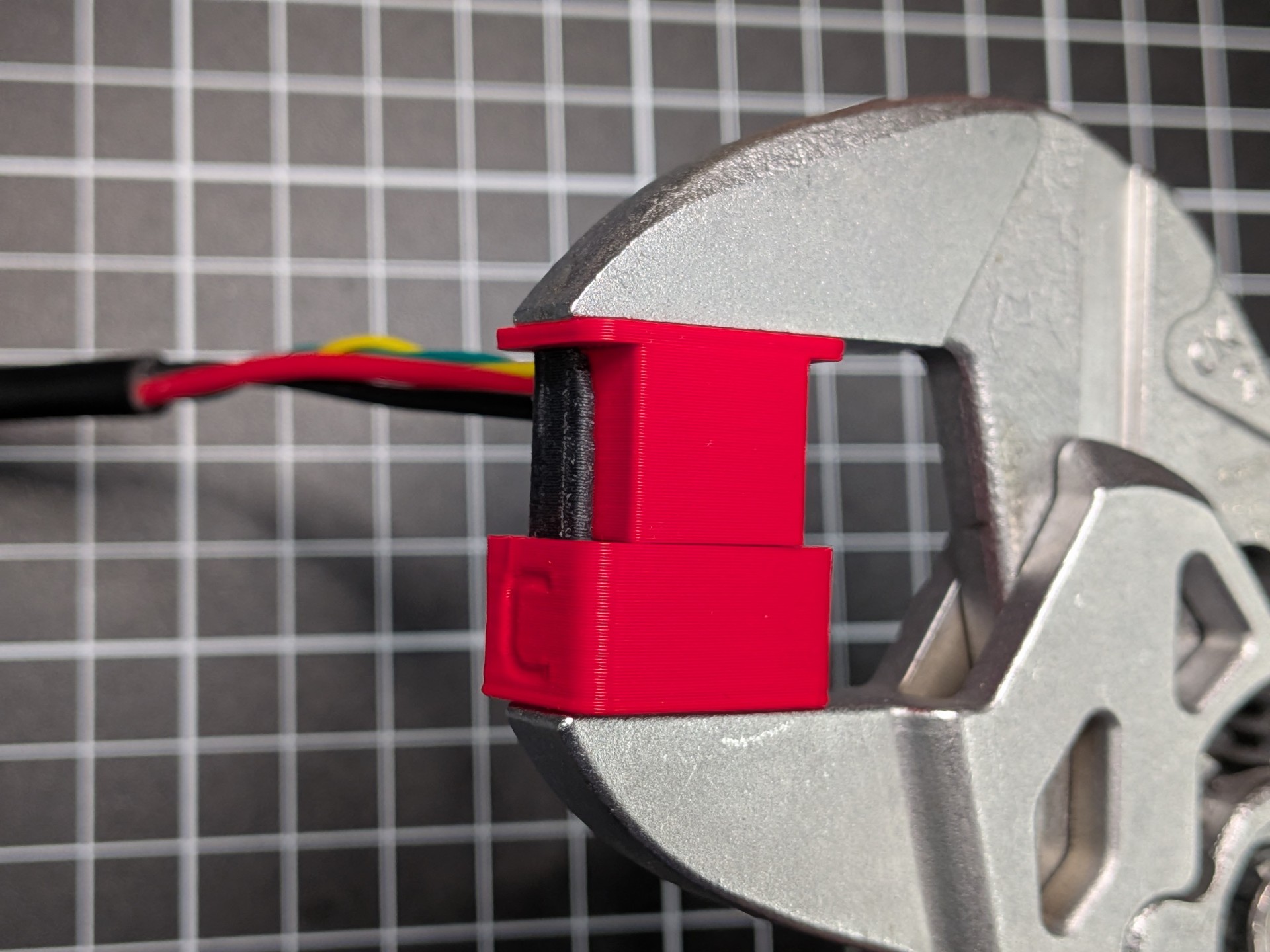

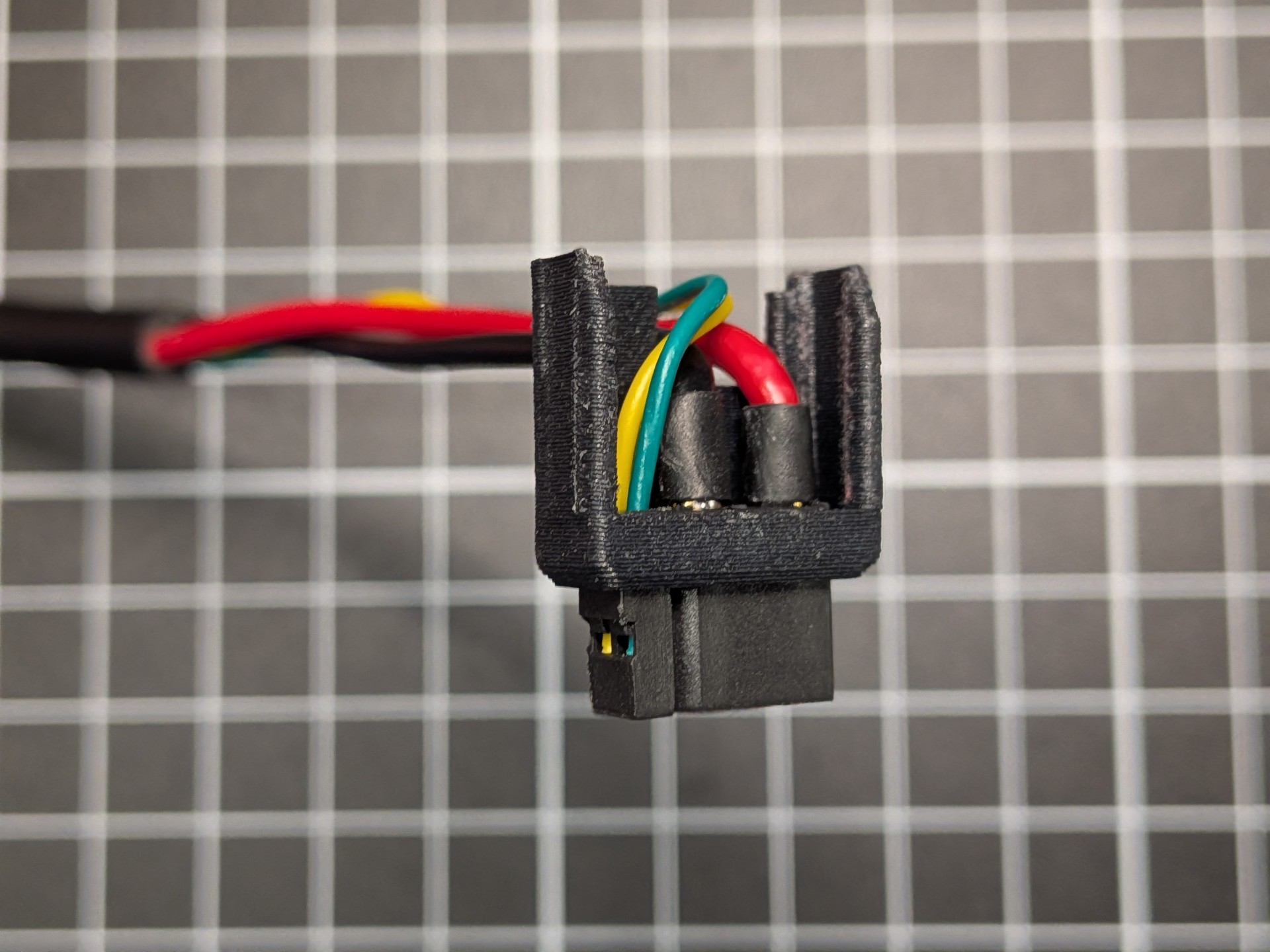

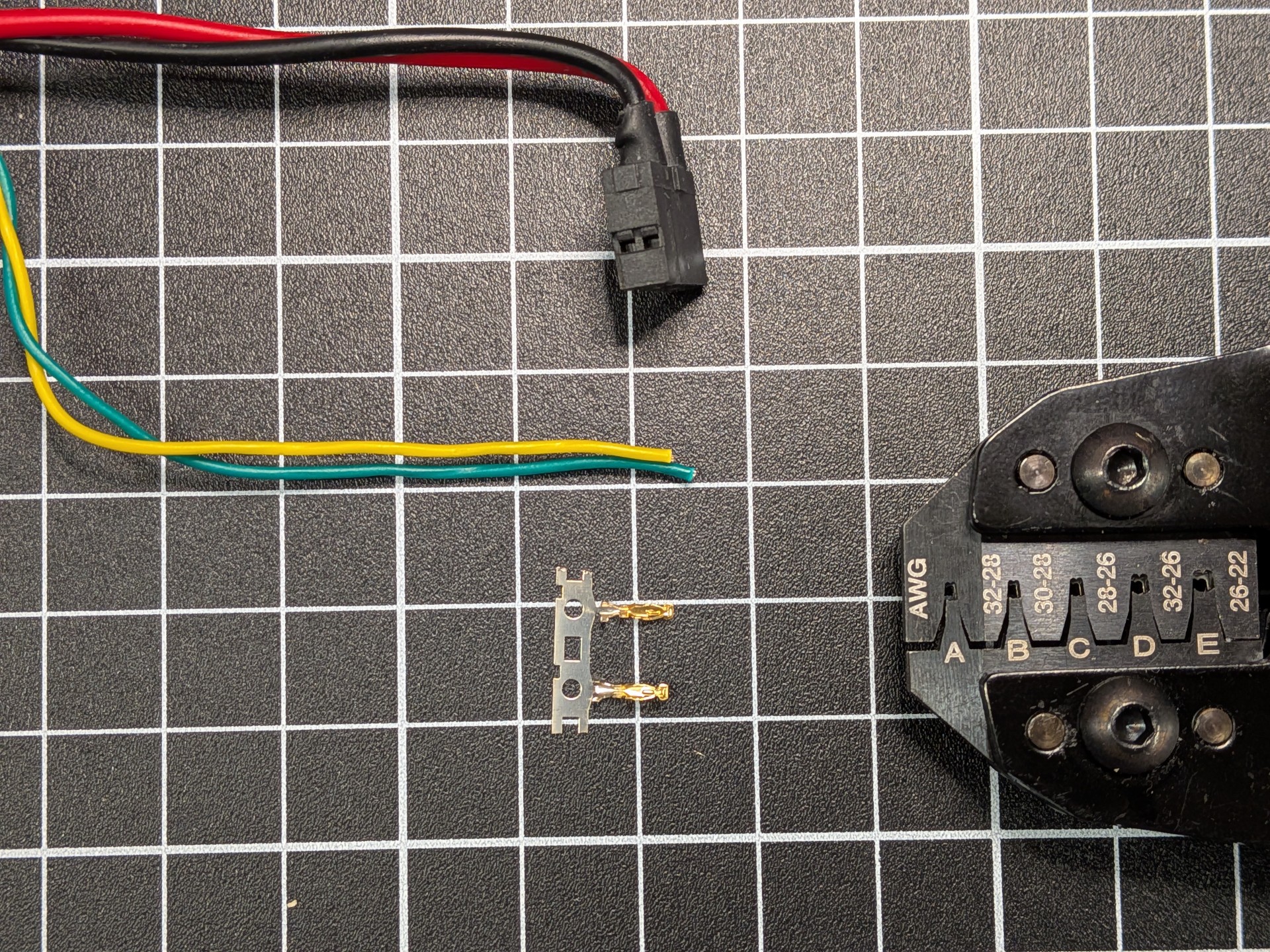

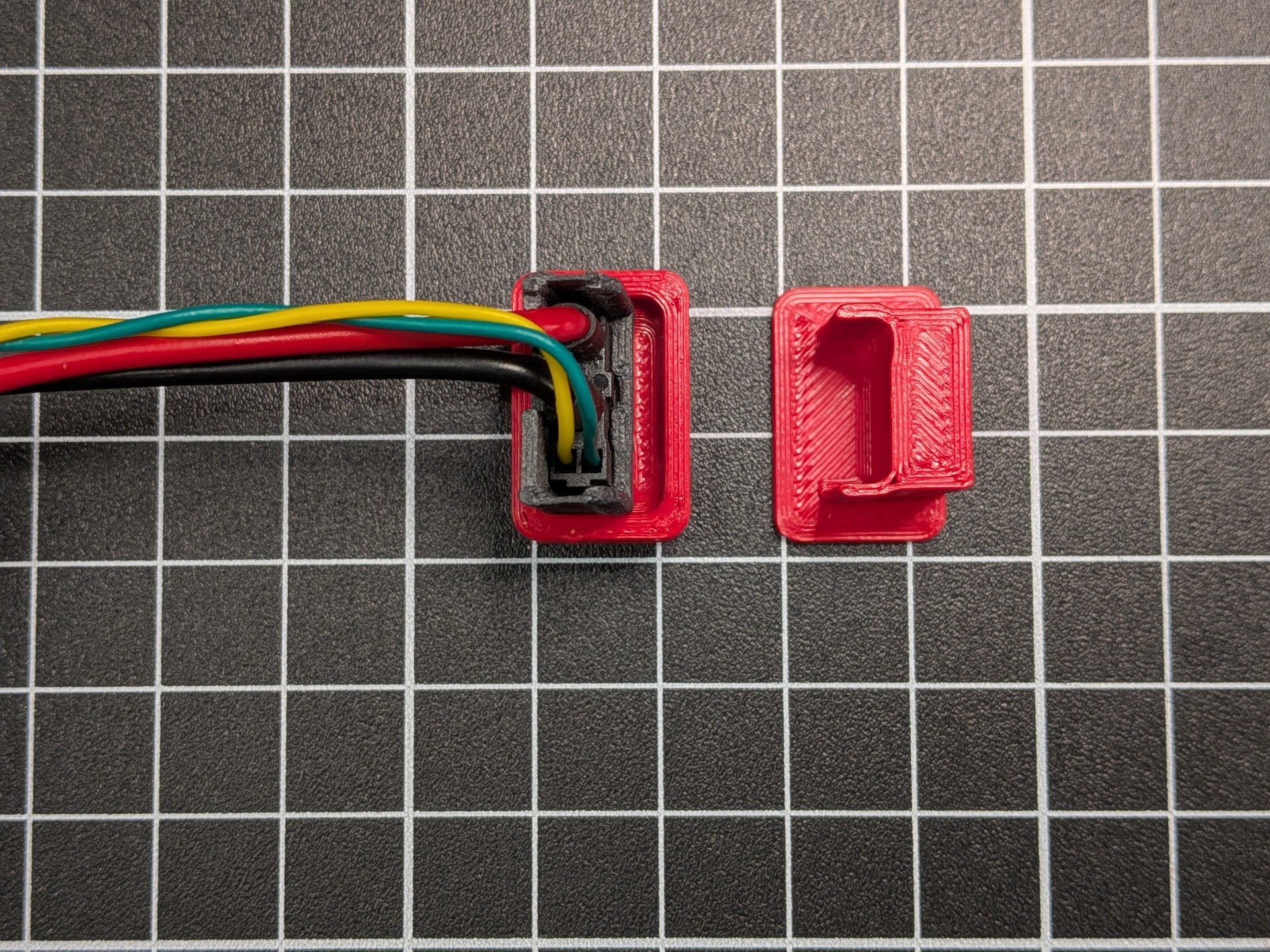

And now, just follow the pics ... and have fun building! 😎
